A9G GPS GSM GPRS Development Board Module
A9G GSM/GPRS/GPS module by Ai-thinker is an integrated IoT solution that supports dual band GSM/GPRS network and at the same time It has an embedded GPS module. If your project involves both GSM and GPS module then the A9G GSM GPS is a good choice.
The board features compact size and low current consumption. With power saving capabilities, the current consumption is as low as 3mA in sleep mode. It communicates with microcontroller via UART port supports AT commands.
The A9G by default comes with a bootloader or firmware and hence it can be controlled using AT commands through Arduino, ESP8266, and Raspberry Pi as well. It can be used to connect modules such as Arduino and Raspberry Pi to the internet and can be used in a wide range of IoT applications and is ideal for IoT applications for home automation, industrial wireless control, wearable electronics, wireless location sensing devices, wireless location system signals, and other IoT applications.
Features:
- Integrates GSM, GPRS, GPS, and BDS functions on a single development board.
- Supports quad-band cellular connectivity for broad GSM network compatibility.
- Provides GPS and BDS satellite positioning for location-based projects.
- Supports GPRS packet-data communication and internet connectivity.
- Enables voice calling and SMS message transmission and reception.
- Supports both digital and analog audio interfaces.
- Compatible with HR, FR, EFR, and AMR voice-coding formats.
- Includes an embedded network-service protocol stack.
- Supports standard GSM AT commands and Ai-Thinker extended commands.
- Communicates with microcontrollers and development boards through UART.
- Allows firmware upgrades through the serial interface.
- Features a low-power operating mode for battery-powered systems.
- Can be powered through USB or a compatible lithium battery.
- Provides dedicated connections for external GSM and GPS antennas.
- Includes accessible GPIO and communication interfaces for hardware integration.
- Compatible with platforms such as Arduino, ESP8266, and Raspberry Pi.
- Compact board design simplifies integration into portable and embedded projects.
Specification:
| Specification | Details |
|---|---|
| Module: | Ai-Thinker A9G |
| Operating Voltage: | 3.3V–4.2V DC |
| Operating Temperature: | -20°C to +70°C |
| Low-Power Mode Current: | Below 2mA average |
| GSM/GPRS Bands: | Quad-Band: 850 / 900 / 1800 / 1900MHz |
| GPRS Class: | Class 10 |
| Receiver Sensitivity: | Less than -105dB |
| Voice Support: | Supports voice calls |
| SMS Support: | Supports SMS messaging |
| GPIO Logic Level: | 2.8V |
| GPRS Data Service: | Supported |
| Maximum Download Rate: | 85.5kbps |
| Maximum Upload Rate: | 42.8kbps |
| Standard AT Commands: | Supports GSM 07.07 and GSM 07.05 AT commands |
| Extended AT Commands: | Supports Ai-Thinker extended command set |
| TCP/IP Commands: | Supports standard AT&TCP/IP command set |
Board Overview:
Connection:
- Connect usb-ttl with 4 wires when debugging, VUSB-5V; GND-GND; AT_TX-RX; AT_RX-TX
- Or power supply by USB, then connect another three lines, GND-GND; AT_TX-RX; AT_RX-TX
- Or power by lithium battery, VBAT-(3.3v-4.2) V; GND-GND; AT_TX-RX; AT_RX-TX; (VBAT power supply, need to press power_key button for about 2s)
Power on:
- A9G development board can be powered by USB or lithium battery.
- It does not require any operation when powered 1-2s.
- Please press the Rst_Key button to reset.
- The module enters AT command mode by default.
Applications:
- Vehicle Tracking Systems.
- Personal GPS Trackers.
- Fleet Management Systems.
- Remote Asset Monitoring.
- IoT Communication Devices.
- SMS Alert Systems.
- Remote Data Logging.
- Emergency Call Devices.
- Smart Security Systems.
- Industrial Equipment Monitoring.
- Location-Based Services.
- Portable Navigation Devices.
- Wireless Telemetry Systems.
- Remote Control Systems.
- GSM-Based Home Automation.

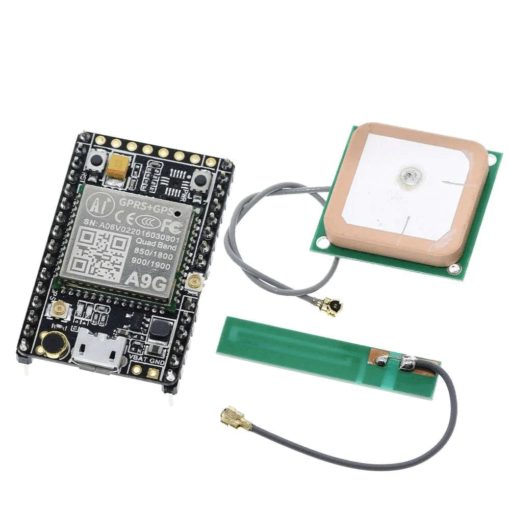

Package Includes:
- 1x GSM GPS Module
- 1x GSM / GPRS Antenna
- 1x GPS Antenna
Datasheet:
