Aluminum Electrolytic Capacitor 1500uF 35V 12.5x30mm
This high-quality Aluminum Electrolytic Capacitor offers a large 1500µF capacitance and a 35V rating, making it ideal for smoothing out voltage fluctuations in power supplies and audio equipment. Its radial lead design and form factor allow for vertical mounting, saving valuable horizontal space on your PCB.
Features
- High Capacitance
- Polarized Design
- Through-Hole Mounting
- Durable Construction
Specifications
| Parameter | Specification |
|---|---|
| Capacitance | 1500 µF |
| Rated Voltage | 35 V DC |

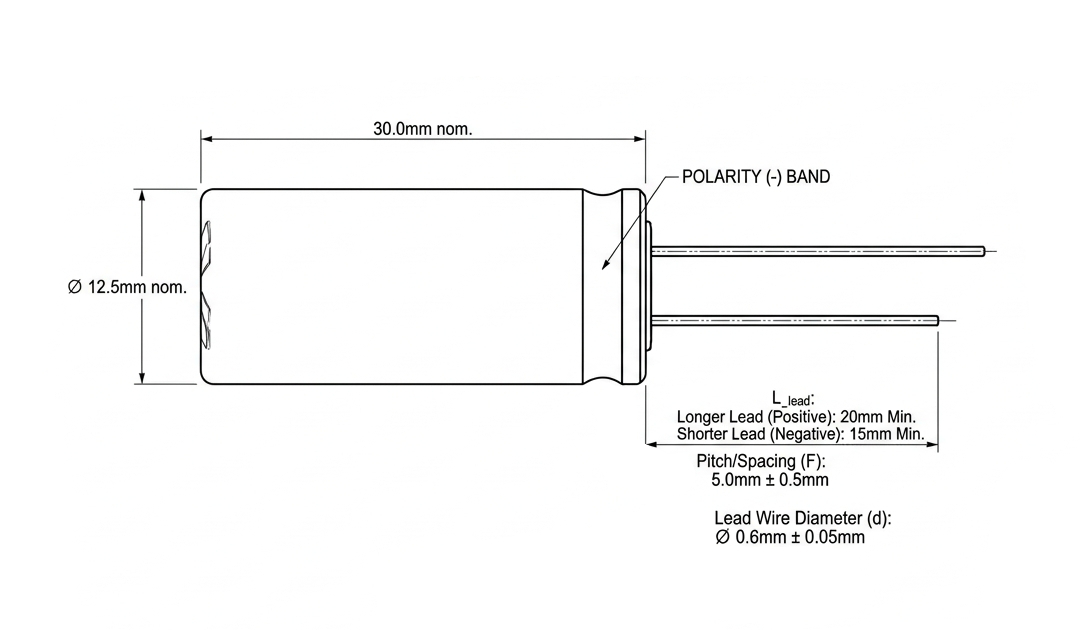

| Dimensions (D x L) | 12.5 x 30 mm |
| Capacitance Tolerance | ±20% (at 120Hz, +20°C) |
| Temperature Range | -40°C to +105°C |
| Mounting Type | Through-Hole (Radial) |
| Lead Spacing | 5.0 mm |
| Lifetime | 2000 Hours (@ 105°C) |
| Dielectric Material | Aluminum Electrolytic |
Applications
- Power Supply Filtering
- Audio Equipment
- Voltage Buffering
- Consumer Electronics
Package Content
- 1 x Aluminum Electrolytic Capacitor 1500uF 35V 12.5x30mm
