AM26S02PC Schottky Dual Monostable Multivibrator IC 5V TTL PDIP-16
AM26S02PC Schottky Dual Monostable Multivibrator IC 5V TTL PDIP-16 is a high-speed TTL logic device designed for accurate pulse generation, timing control, and waveform shaping applications. Featuring two independent monostable multi vibrators in a single package, it utilizes Schottky technology for fast switching speeds and reliable operation. Operating from a 5V TTL supply, the IC delivers stable pulse width control and is ideal for digital timing circuits, pulse stretching, delay generation, and signal conditioning applications. Its PDIP-16 package allows easy integration into through-hole electronic designs and prototyping projects.
Features
- Dual independent monostable multi vibrators in one package.
- High-speed Schottky TTL technology for fast switching.
- Operates from a standard 5VDC supply.
- Precise pulse width generation and timing control.
- TTL compatible inputs and outputs.
- Suitable for pulse stretching applications.
- Supports delay generation functions.
- Reliable performance in digital logic systems.
- PDIP-16 package for easy through-hole installation.
- Ideal for industrial, educational, and embedded designs.
Specifications
| Parameter | Details |
| Part Number | AM26S02PC |
| Function | Schottky Dual Monostable Multivibrator |
| Logic IC Type | Monostable Multivibrator |
| Logic Family | TTL/H/L |
| Number Of Functions | 2 |
| Supply Voltage | 4.75V to 5.25V |
| Typical Operating Voltage | 5VDC |
| Propagation Delay (tpd) | 23.0ns |
| Max Power Supply Current | 69.0mA |
| Load Capacitance (CL) | 15.0pF |
| Configuration | Dual One Shot Multivibrator |
| Output Type | TTL Compatible |
| Technology | Bipolar Schottky TTL |
| Operating Mode | Monostable Pulse Generation |
| Channel Count | 2 Channels |
| Operating Temperature | 0°C to 70°C |
| Package Type | PDIP-16 |
| Mounting Type | Through Hole |
| Application | Timing And Control Circuits |

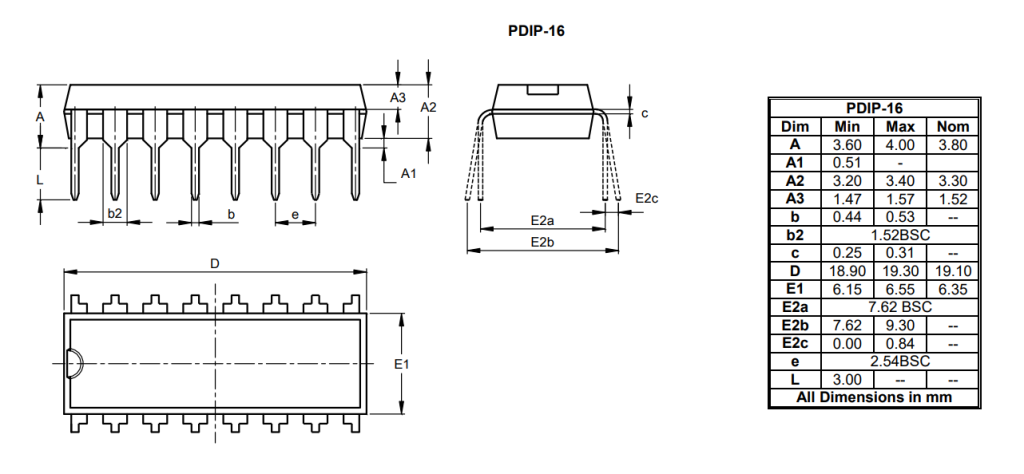

Dimensions

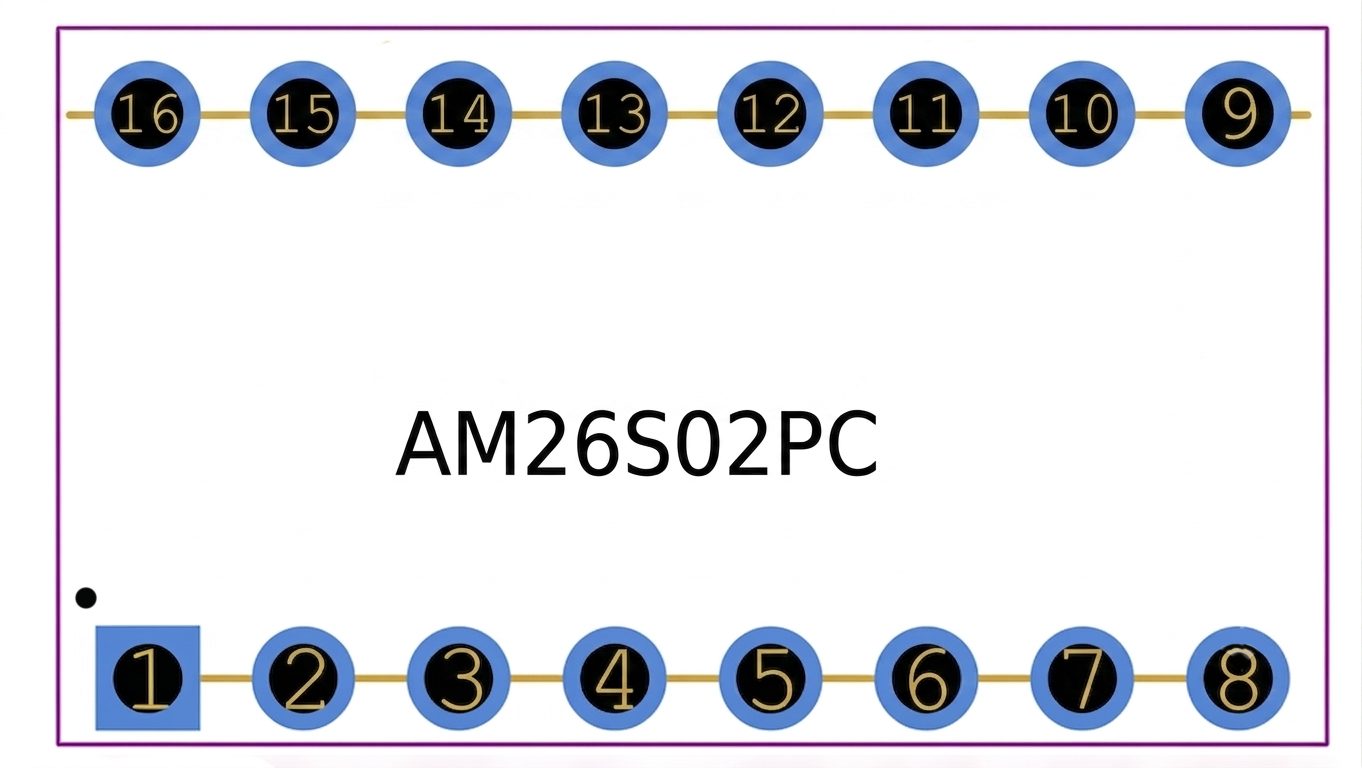

Footprint

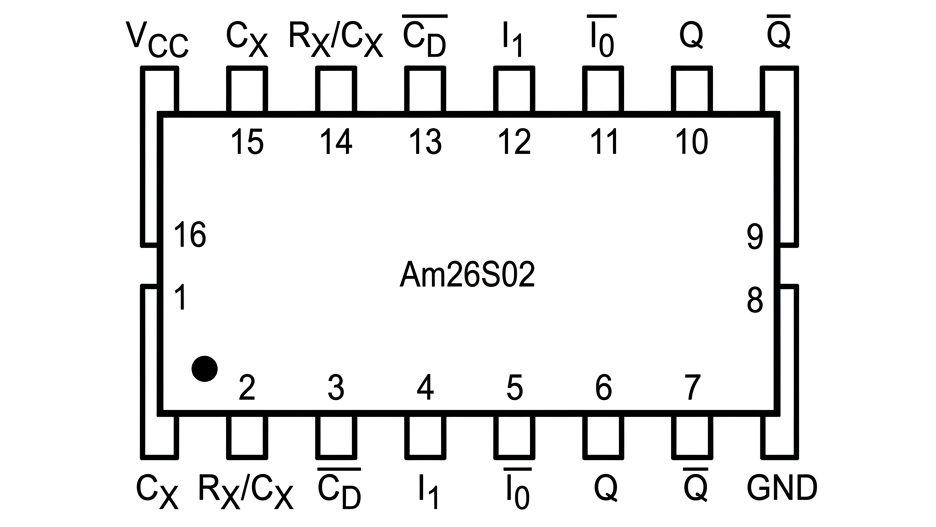

Pinout Configuration
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | CX | External timing capacitor connection. |
| 2 | RX/CX | External timing resistor/capacitor connection. |
| 3 | CD̅ | Direct clear input (active low). |
| 4 | I1 | Trigger input 1. |
| 5 | I0̅ | Trigger input 0 (active low). |
| 6 | Q | True output. |
| 7 | Q̅ | Complementary output. |
| 8 | GND | Ground connection. |
| 9 | Q̅ | Complementary output. |
| 10 | Q | True output. |
| 11 | I0̅ | Trigger input 0 (active low). |
| 12 | I1 | Trigger input 1. |
| 13 | CD̅ | Direct clear input (active low). |
| 14 | RX/CX | External timing resistor/capacitor connection. |
| 15 | CX | External timing capacitor connection. |
| 16 | VCC | Positive power supply input. |
Applications
- Pulse generation circuits.
- Digital timing systems.
- One shot pulse generators.
- Delay timer circuits.
- Pulse stretching applications.
- Signal conditioning circuits.
- Industrial automation controls.
- TTL logic systems.
- Event timing circuits.
- Embedded electronic designs.
Package Contents
- 1 x AM26S02PC Schottky Dual Monostable Multivibrator IC 5V TTL PDIP-16
