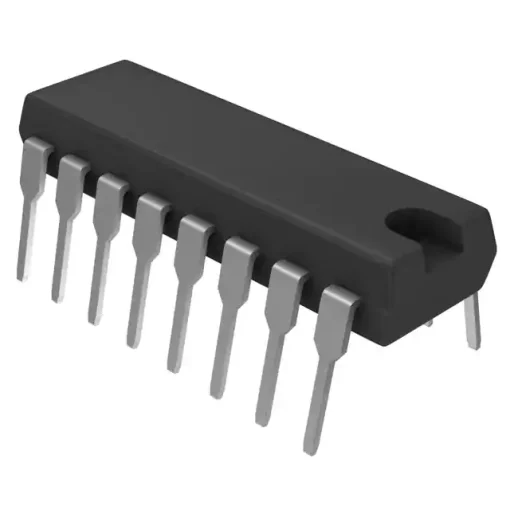

DS8216D 4-Bit Bidirectional Bus Driver IC DIP-16
DS8216D 4-Bit Bidirectional Bus Driver IC DIP-16 is a high-performance 4-bit bidirectional bus transceiver designed for bus-oriented digital systems. It features four TRI-STATE bidirectional data buffers, TTL-compatible inputs and outputs, and high-current drive capability for reliable interfacing with memories, I/O devices, and microprocessors. The device supports bidirectional data transfer controlled by the DIEN input and device enable via the CS input. With low input loading, fast propagation delay, and compatibility with 8080-type CPUs, it is ideal for data bus buffering, interface control, and digital communication applications. The DS8216D corresponds to the non-inverting DP8216 family described in the uploaded datasheet.
Features
- 4-bit bidirectional bus transceiver.
- Non-inverting data transfer.
- TRI-STATE outputs for direct bus interfacing.
- TTL-compatible inputs and outputs.
- High output drive capability up to 50mA.
- Compatible with 8080-type CPU data buses.
- Device enable control via CS input.
- Bidirectional data flow controlled by DIEN input.
- Low input load current.
- Power-up and power-down protection.
- Fast propagation delay.
- Standard DIP-16 package.
Specifications
| Parameter | Details |
|---|---|
| Product Type | 4-Bit Bidirectional Bus Driver IC |
| Part Number | DS8216D |
| Equivalent Family | DP8216 |
| Logic Type | Non-Inverting Bus Transceiver |
| Number of Bits | 4-Bit |
| Bus Direction | Bidirectional |
| Output Type | TRI-STATE |
| Supply Voltage | 5VDC |
| Operating Voltage Range | 4.75VDC to 5.25VDC |
| Output Drive Current | 50mA |
| Propagation Delay | 25ns Typ. |
| Control Inputs | CS, DIEN |
| Logic Compatibility | TTL Compatible |
| Package | DIP-16 |
| Operating Temperature | 0°C to +70°C |

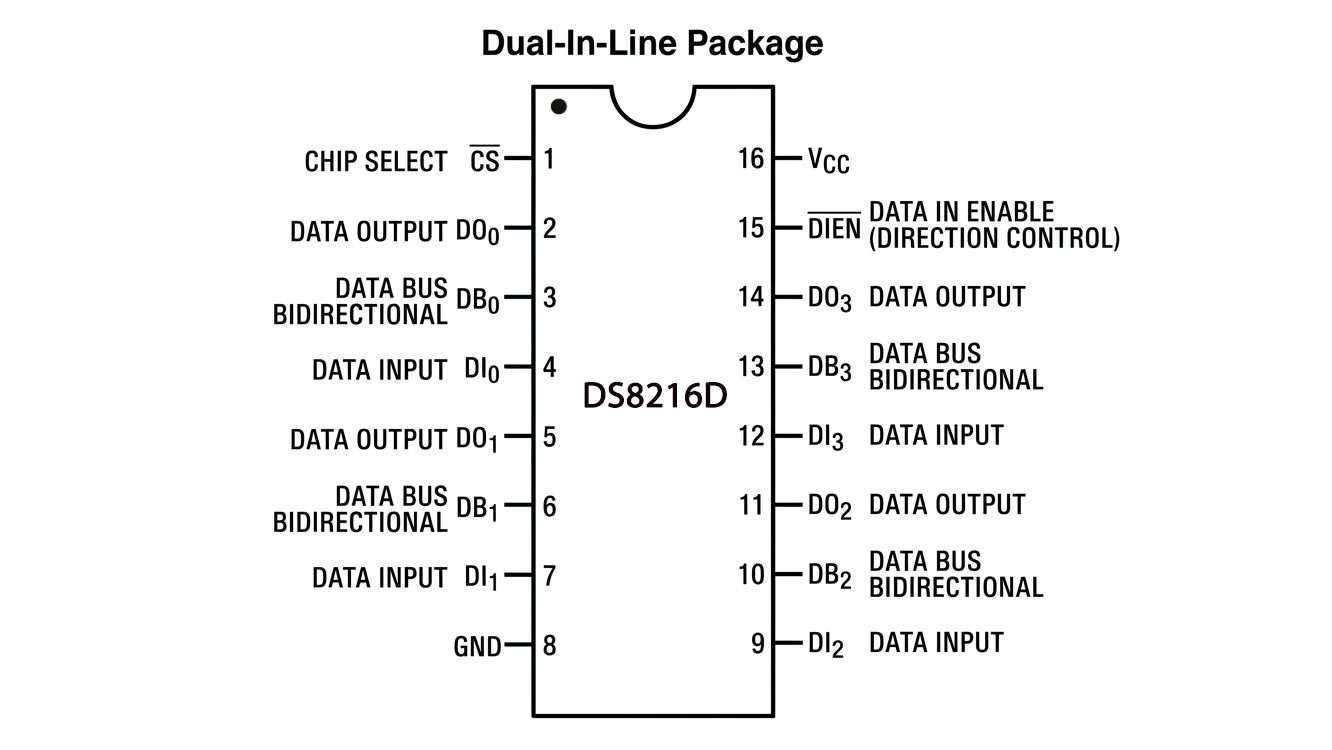

Pin Configuration
| Pin Number | Pin Name | Function / Description |
|---|---|---|
| 1 | CS | Chip Select Input (Active Low). Enables or disables the device. |
| 2 | DO0 | Data Output Channel 0. |
| 3 | DB0 | Bidirectional Data Bus Channel 0. |
| 4 | DI0 | Data Input Channel 0. |
| 5 | DO1 | Data Output Channel 1. |
| 6 | DB1 | Bidirectional Data Bus Channel 1. |
| 7 | DI1 | Data Input Channel 1. |
| 8 | GND | Ground (0V). |
| 9 | DI2 | Data Input Channel 2. |
| 10 | DB2 | Bidirectional Data Bus Channel 2. |
| 11 | DO2 | Data Output Channel 2. |
| 12 | DI3 | Data Input Channel 3. |
| 13 | DB3 | Bidirectional Data Bus Channel 3. |
| 14 | DO3 | Data Output Channel 3. |
| 15 | DIEN | Data Input Enable / Direction Control Input. Selects the direction of data transfer. |
| 16 | VCC | Positive Power Supply (+5V). |
Applications
- Microprocessor data bus interfacing.
- Memory bus buffering.
- Digital I/O interfaces.
- 8080-compatible systems.
- Bus-oriented computer systems.
- Industrial control electronics.
- Embedded digital systems.
- Communication interface circuits.
- Logic level buffering.
- General-purpose digital bus expansion.
