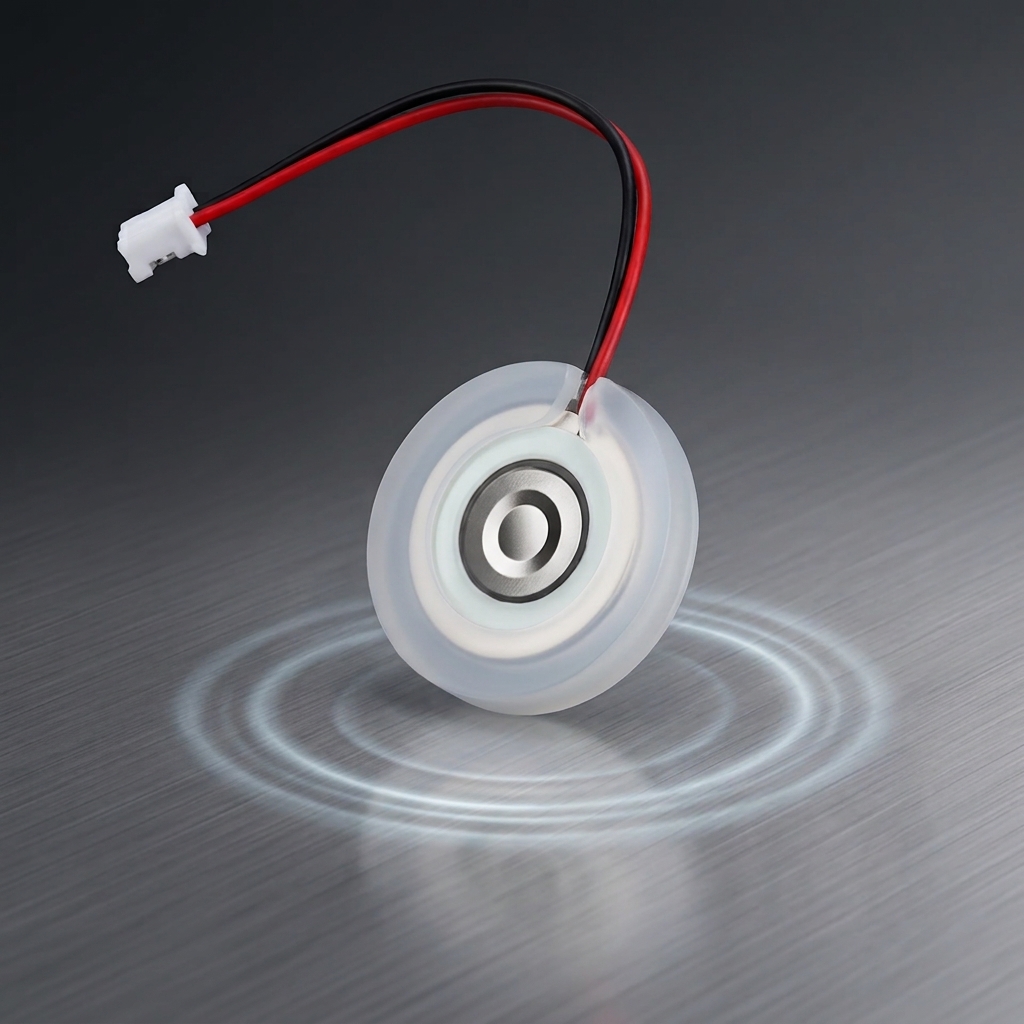

Atomizer Air Humidifier Transducer Ultrasonic Piezoelectric 108KHZ 16mm with 10cm JST Terminal
The 16mm 108kHz Ultrasonic Piezoelectric Atomizer Disc is a transducer designed for compact humidification and atomization devices. At its core is a piezoelectric ceramic element mounted in a silicone sealing ring. When excited by a compatible 108kHz ultrasonic driver circuit, the ceramic element vibrates at its resonant frequency and forces water through the micron‑sized pores, releasing a cool, ultra‑fine mist — without any heating element
Features
- 16mm micro‑porous piezoelectric ceramic atomizing dis
- 108kHz resonant frequency
- Low power consumption
- Quiet, low‑noise operation
- Integrated silicone sealing ring
- Long service life
Specifications
| Technical Specifications | |
|---|---|
| Product Type | Ultrasonic piezoelectric atomizing transducer |

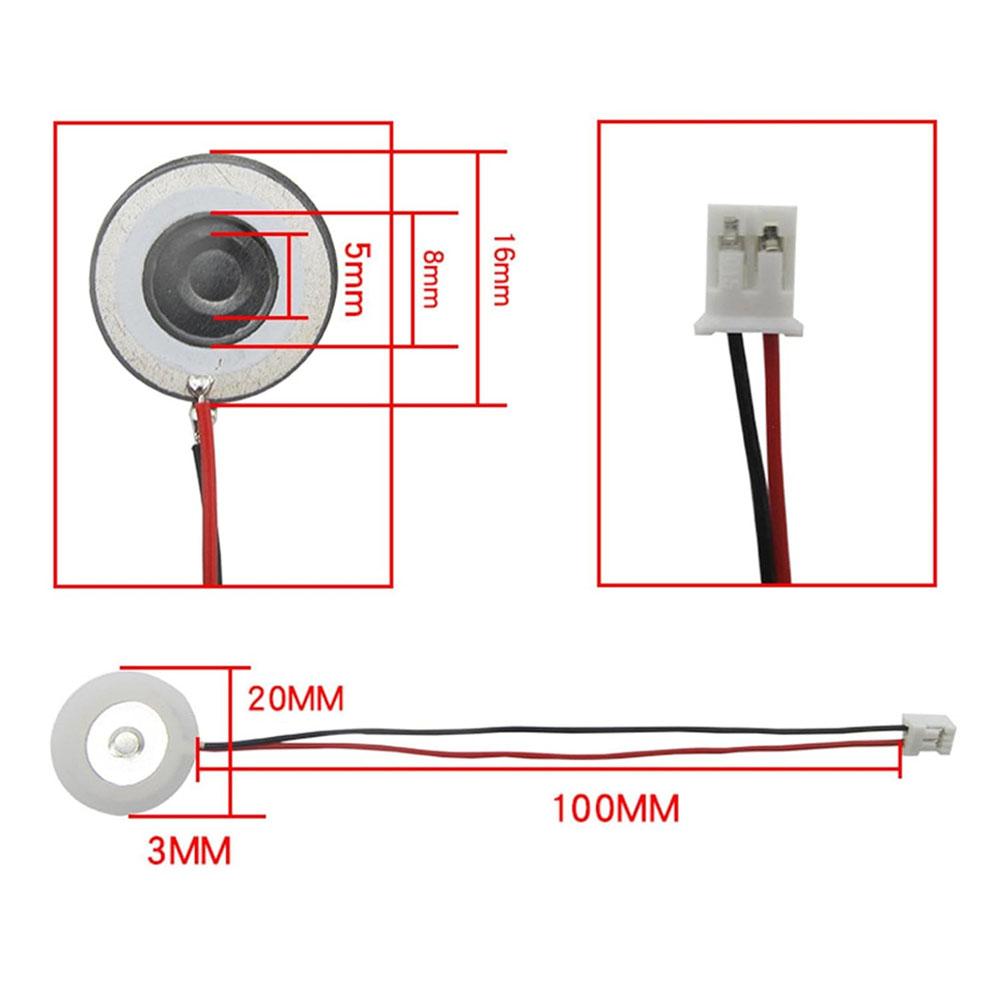

| Atomizing Disc Diameter | 16 mm |
| Outer Diameter (with silicone ring) | ≈20 mm |
| Resonant Frequency | 108 kHz ±3 kHz |
| Operating Voltage | DC 3.7 V – 5 V (via compatible driver board) |
| Rated Power | ≈2 W (≈1.5 W in normal use) |
| Connection | ≈10 cm red/black lead wire with 2-pin JST connector |
| Noise Level | Low-noise operation |
| Driver Requirement | Requires a 108 kHz ultrasonic driver/oscillator board (not included) |
Applications
- Portable, desktop and USB ultrasonic air humidifiers
- Small‑space humidity control (home and appliance use)
- DIY mist‑generation and humidification projects
Package Content
- 1 x Atomizer Air Humidifier Transducer Ultrasonic Piezoelectric 108KHZ 16mm with 10cm JST Terminal
