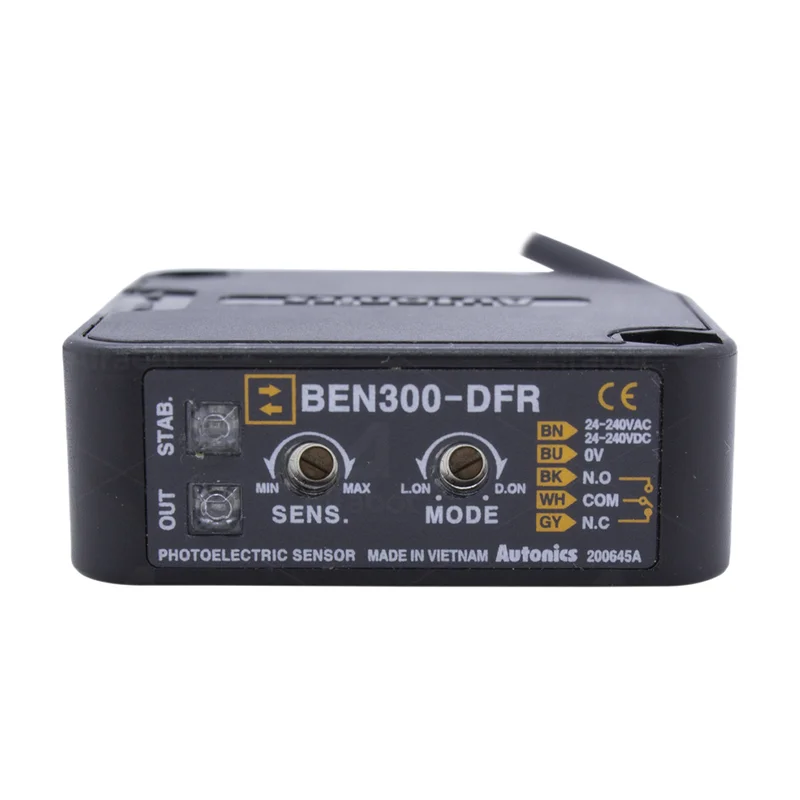

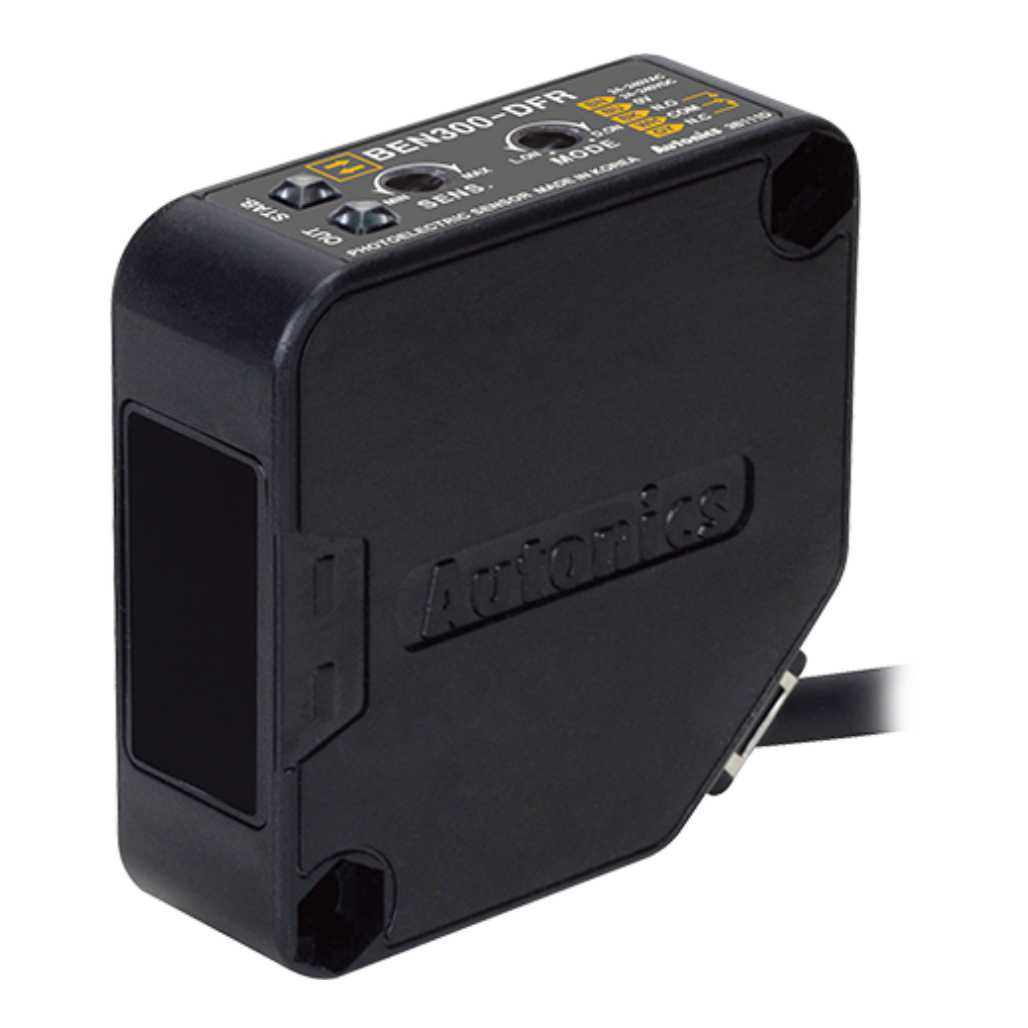

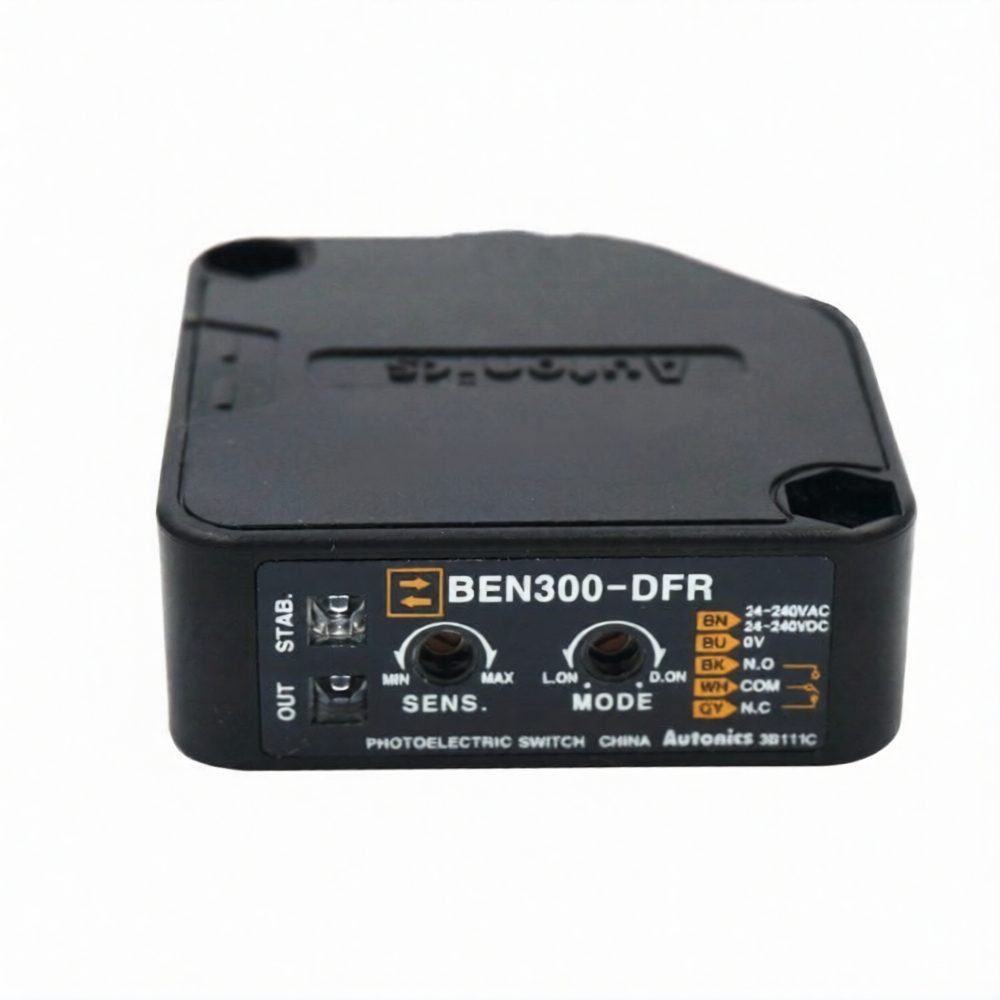

Autonics BEN300-DFR Photoelectric Sensor 24-240VDC/AC 300mm
The Autonics BEN300-DFR is a compact diffuse-reflective photoelectric sensor that detects objects without requiring a separate reflector or receiver. It uses an infrared LED light source and can detect both opaque and translucent materials at a sensing distance of up to 300 mm. The sensitivity can be adjusted according to the required detection distance.
The sensor features a wide universal power supply of 24–240 VAC or 24–240 VDC, making it suitable for a variety of industrial control systems. Its relay control output supports selectable Light ON/Dark ON operation, while the built-in 2 m cable simplifies installation.
Features:
- Diffuse-reflective sensing.
- 300 mm sensing distance.
- Detects opaque and translucent materials.
- Infrared LED light source.
- Adjustable sensitivity.
- Selectable Light ON / Dark ON operation.
- Relay control output.
- Wide AC/DC power supply range.
- Prewired 2 m cable.
- Compact industrial design.
- IP50 protection.
- Suitable for industrial automation applications.
Specifications:
| Sensing type | Diffuse reflective type |
|---|---|
| Sensing distance | 300mm |
| Sensing target | Opaque, Translucent material |
| Light source | Infrared LED(940nm) |
| Response time | Max. 20ms |
| Power voltage | 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(ripple P-P: max. 10%) |
| Current consumption | Max. 4VA |
| Sensitivity adjustment | Sensitivity adjuster |
| Operation mode | Light ON/Dark ON(set by switch) |
| Control output | Relay |
| Connection type | Cable type(Ø5, 2m) |
| Environment_Ambient illumination | Sunlight: Max. 11,000lx, Incandescent lamp: Max. 3,000lx (received illumination) |
| Environment_Ambient temperature | -20 to 65℃, storage: -25 to 70℃ |
| Protection structure | IP50 |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Hysteresis(distance) | Max. 20% at sensing distance |
| Material | Case, Case cover: Heat resistant Acrylonitrile butadiene styrene, Sensing part: Polycarbonate(with polarizing filter: polymethyl methacrylate), Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum, Nut: steel chromium molybden |
| Accessories_Common | Adjuster driver, Fixing bracket, Bolts, Nuts |
| Weight | 195g |
Applications:
- Object detection.
- Conveyor systems.
- Packaging machinery.
- Counting systems.
- Industrial automation.
- Material handling equipment.
- Position detection.
- Presence/absence detection.
- Production-line monitoring.
- Machine control systems.
Package Includes:
- 1 × Autonics BEN300-DFR Photoelectric Sensor.
- 1 × Mounting Bracket.
- 2 × Mounting Screws and Nuts.
- 1 × Sensitivity Adjustment Tool.
