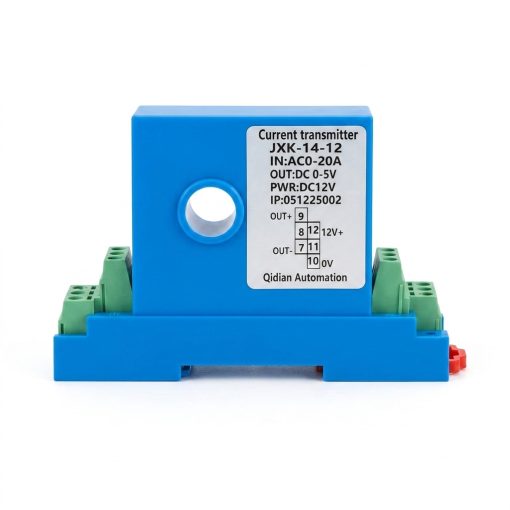

JXK-14-12 DIN Rail Current Transmitter Sensor 12VDC AC0-20A Primary & DC0-5V Secondary
JXK-14-12 DIN Rail Current Transmitter Industrial Hall-effect sensor converting AC 0–20A into an isolated DC 0–5V output. Powered by 12VDC for PLCs, monitoring, and automation systems.
1,350.00 EGP
Buy NowJXK-14-12 DIN Rail Current Transmitter Sensor 12VDC AC0-20A Primary & DC0-5V Secondary
The JXK-14-12 DIN Rail Current Transmitter Sensor is a high-performance Hall-effect current transducer designed to accurately measure AC current and convert it into a proportional DC voltage output. Utilizing open-loop Hall-effect sensing technology, the transmitter provides electrical isolation between the measured circuit and the control system while delivering stable and reliable signal conversion for industrial applications.
Features:
- Input overload protection
- Output overcurrent limit protection
- Output current short-circuit protection
- Wide voltage power supply
- Working power reverse protection
- Light weight and easy installation
- High precision, good linearity
- Wide frequency band, low temperature drift
- Fast response, strong anti-interference ability
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JXK-14-12 |
| Manufacturer | Qidian Automation |
| Measurement Type | AC Current Transmitter |
| Primary Input Range | AC0-20A |
| Secondary Output | DC0-5V |
| Power Supply | DC12V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 0.5%-1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| DI/DT Follow Rate | >50A/uS |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |
Wire Diagram:
Applications:
- Motor current monitoring and protection in industrial drive systems.
- Power distribution panel load monitoring and energy management.
- HVAC system compressor and fan current sensing.
- Pump and conveyor motor overload detection.
- Generator and alternator output current measurement.
- Building automation and smart panel current monitoring.
- Renewable energy inverter AC side current acquisition.
- Process control system analog feedback loops.
Package Include:
1x JXK-14-12 DIN Rail Current Transmitter Sensor 12VDC AC0-20A Primary & DC0-5V Secondary.
