Current Sensor Module ACS712 5A

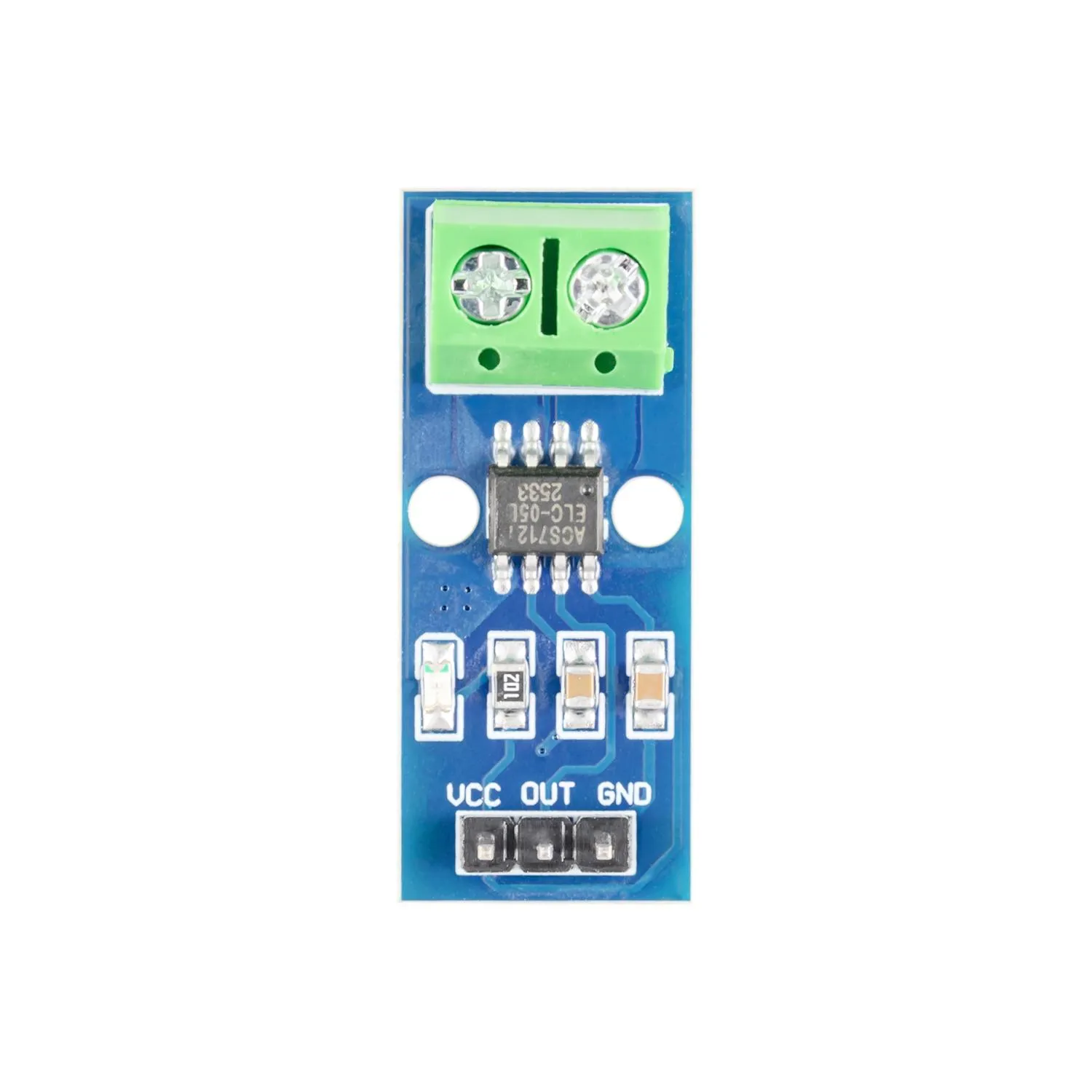

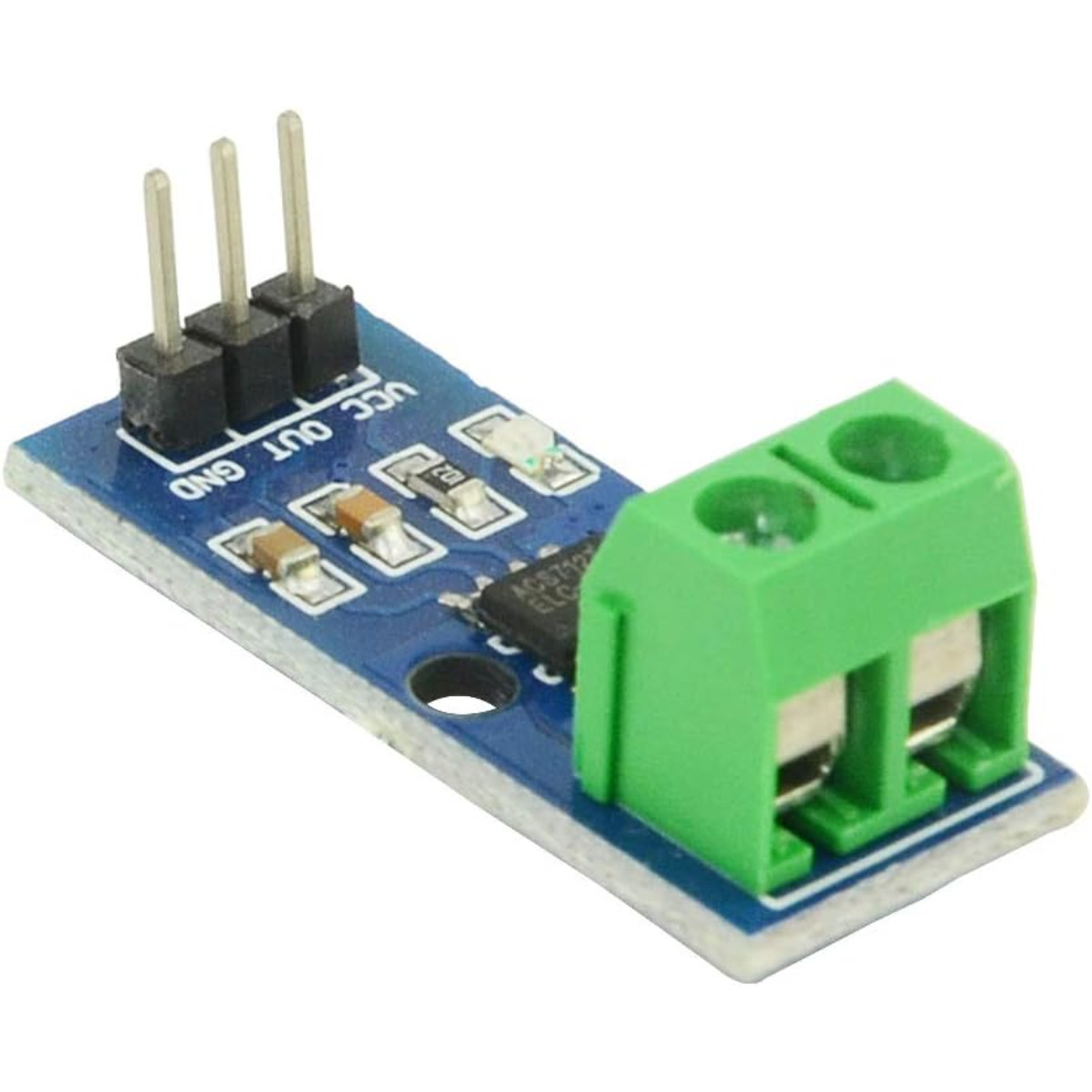

The ACS712 Current Sensor Module is a compact, pre-assembled breakout board designed for direct current monitoring. The board centers around the ACS712 integrated circuit and features a clean, blue PCB layout with clearly labeled connection points, making it highly accessible for electronics projects and prototyping.
Features
- Onboard Sensor Chip
- Easy Wiring Terminal
- Simple Interface Headers
- Visual Indicator
- Secure Mounting
Specifications & Pinout
| Pin Label | Description |
| VCC | Supply Voltage Input |
| OUT | Current Measurement Signal Output |
| GND | Ground Connection |
Applications
- Inline Current Sensing
- Analog Signal Processing
Package Content
- 1 x Current Sensor Module ACS712 5A
