JXK-21 DIN Rail Current Transmitter Sensor 24VDC AC0-10A Primary & DC4-20mA Secondary
The JXK-21 DIN Rail Current Transmitter Sensor is a precision industrial signal conversion device designed to measure AC current and convert it into a standard DC4-20mA analog output signal. The transmitter provides reliable electrical isolation between the input, output, and power supply circuits, ensuring accurate signal transmission while improving system safety and noise immunity in industrial environments.
Features:
- AC current measurement range of AC0-10A.
- Standard DC4-20mA analog output.
- Powered by DC24V supply.
- Three-way electrical isolation design.
- High measurement accuracy and stability.
- Excellent anti-interference performance.
- Suitable for long-distance signal transmission.
- Standard 35mm DIN rail mounting.
- Compact industrial housing.
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JXK-21 |
| Measurement Type | AC Current Transmitter |
| Primary Input Range | AC0-10A |
| Secondary Output | DC4-20mA |
| Power Supply | DC24V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 0.5%-1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| DI/DT Follow Rate | >50A/uS |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |
| Mounting Type | 35mm DIN Rail |

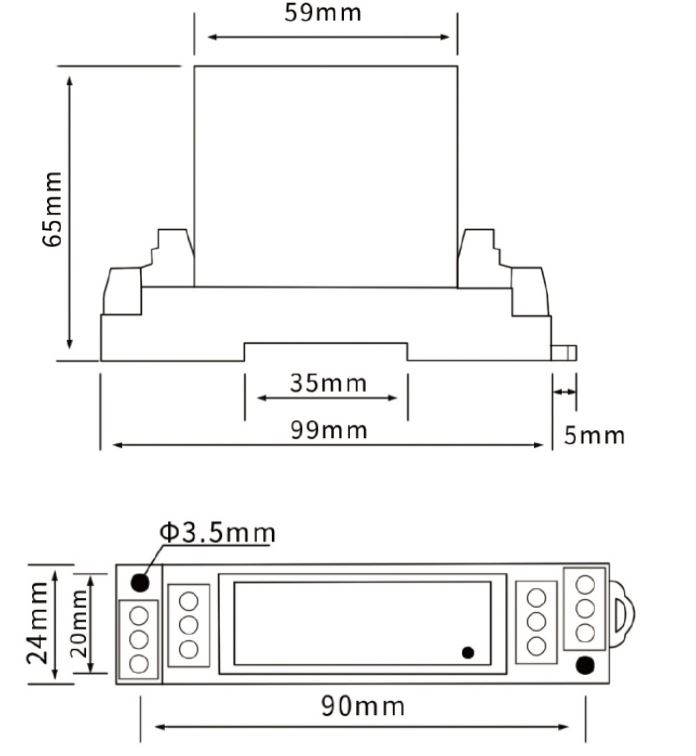

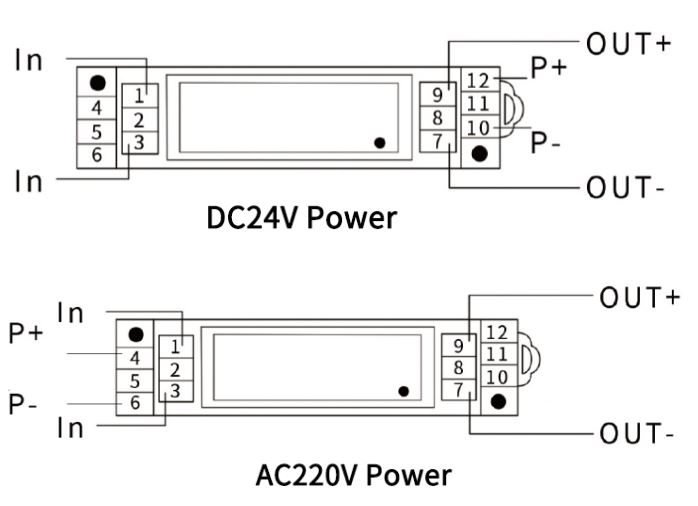

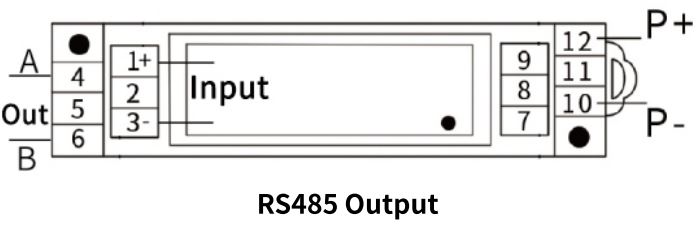

Wiring Diagram:
Applications:
- Motor current monitoring and protection in industrial drive systems.
- Power distribution panel load monitoring and energy management.
- HVAC system compressor and fan current sensing.
- Pump and conveyor motor overload detection.
- Generator and alternator output current measurement.
- Building automation and smart panel current monitoring.
- Renewable energy inverter AC side current acquisition.
- Process control system analog feedback loops.
Package Include:
1x JXK-21 DIN Rail Current Transmitter Sensor 24VDC AC0-10A Primary & DC4-20mA Secondary.
