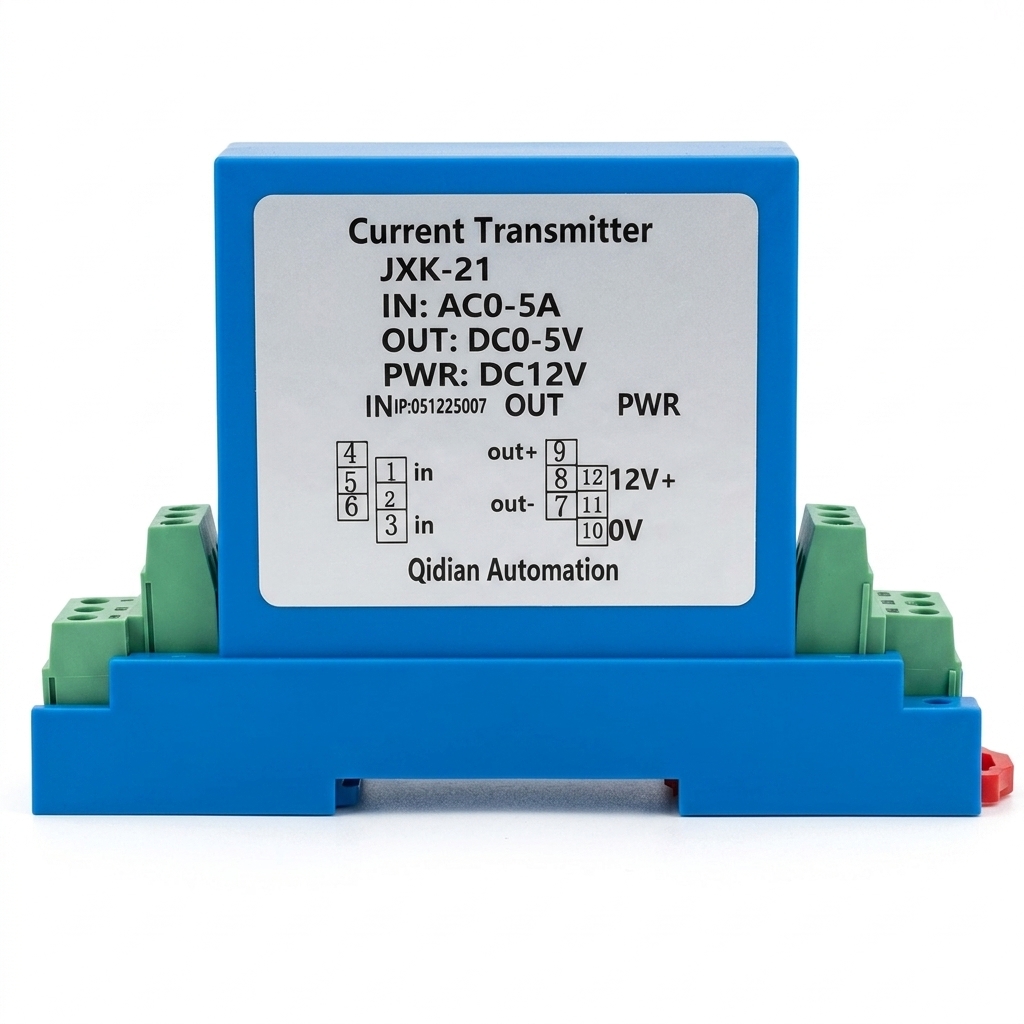

JXK-21 DIN Rail Current Transmitter Sensor 12VDC AC0-5A Primary & DC0-5V Secondary
JXK-21 DIN Rail Current Transmitter Converts AC 0–5A input into a proportional DC 0–5V output. Powered by 12VDC, it is ideal for PLCs, controllers, and industrial automation.
1,350.00 EGP
Buy NowJXK-21 DIN Rail Current Transmitter Sensor 12VDC AC0-5A Primary & DC0-5V Secondary
The JXK-21 DIN Rail Current Transmitter Sensor is a precision industrial signal conversion device designed to monitor AC current and provide a proportional DC voltage output suitable for automation and control systems. This model accepts an AC0-5A input signal and converts it into a standard DC0-5V output, enabling direct interfacing with PLC analog inputs, data acquisition systems, microcontrollers, industrial controllers, and monitoring equipment.
Features:
- AC current measurement range of AC0-5A.
- Standard DC0-5V analog voltage output.
- Powered from a DC12V supply.
- Three-way isolation design.
- High measurement accuracy.
- Excellent anti-interference performance.
- Fast response time.
- Compact DIN rail mounting enclosure.
- Stable long-term operation.
- Suitable for industrial control systems.
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JXK-21 |
| Measurement Type | AC Current Transmitter |
| Primary Input Range | AC0-5A |
| Secondary Output | DC0-5V |
| Power Supply | DC12V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 0.5%-1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| DI/DT Follow Rate | >50A/uS |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |
| Mounting Type | 35mm DIN Rail |
Wiring Diagram:
Applications:
- PLC analog input systems.
- Industrial automation equipment.
- Motor current monitoring.
- Pump control systems.
- HVAC monitoring.
- Electrical distribution panels.
- Energy monitoring systems.
- Factory process control.
- Data acquisition systems.
- Industrial instrumentation.
Package Include:
1x JXK-21 DIN Rail Current Transmitter Sensor 12VDC AC0-5A Primary & DC0-5V Secondary.
