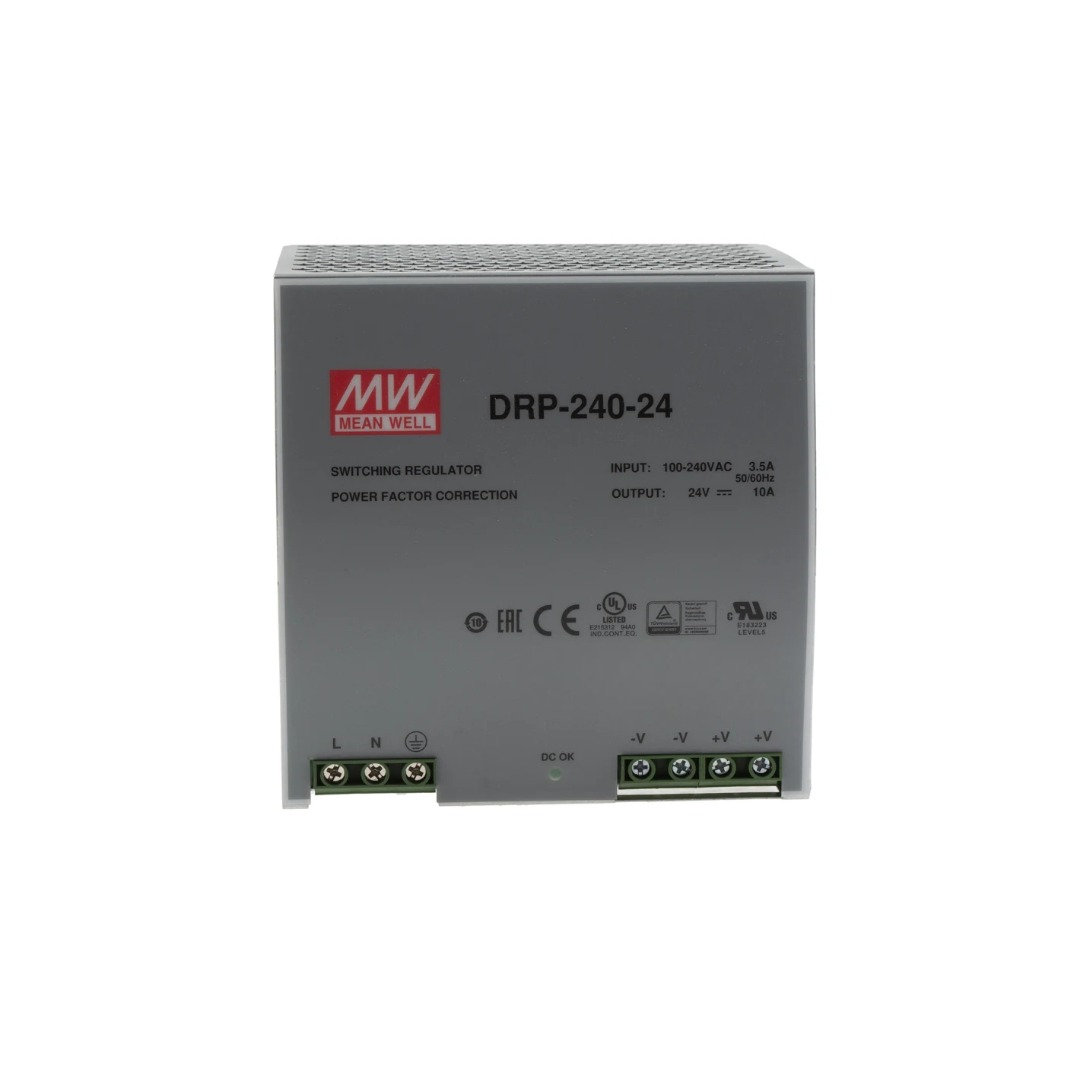

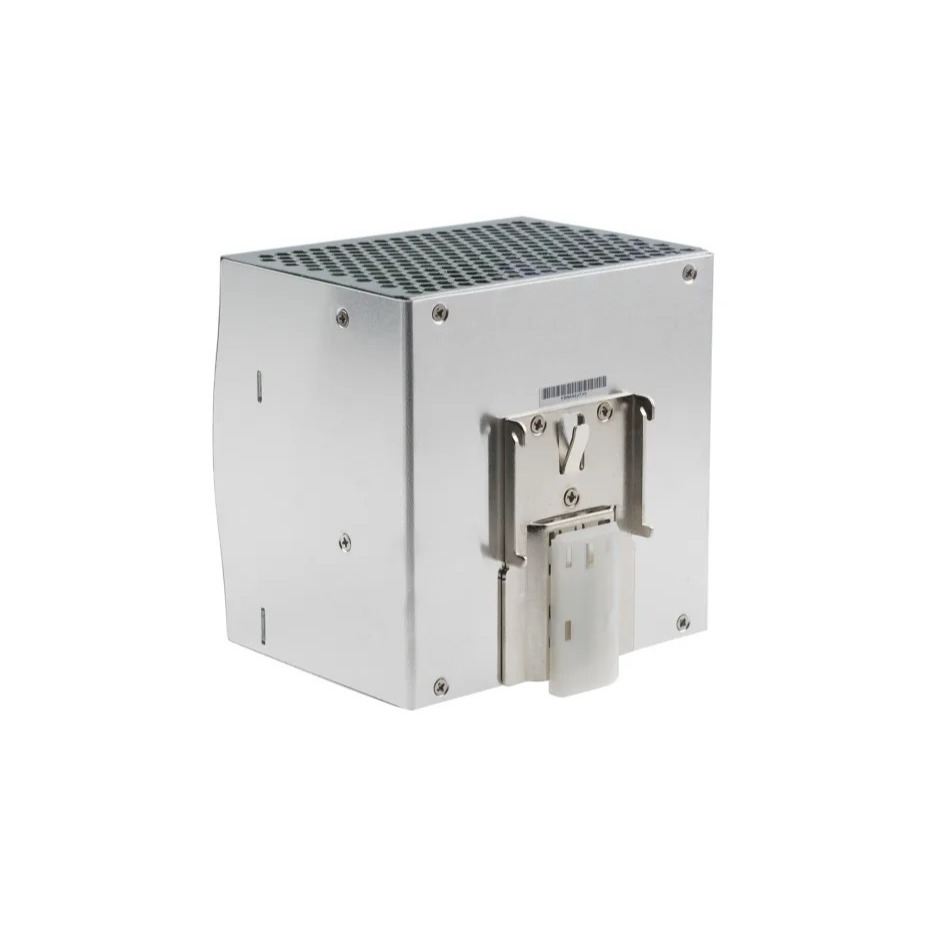

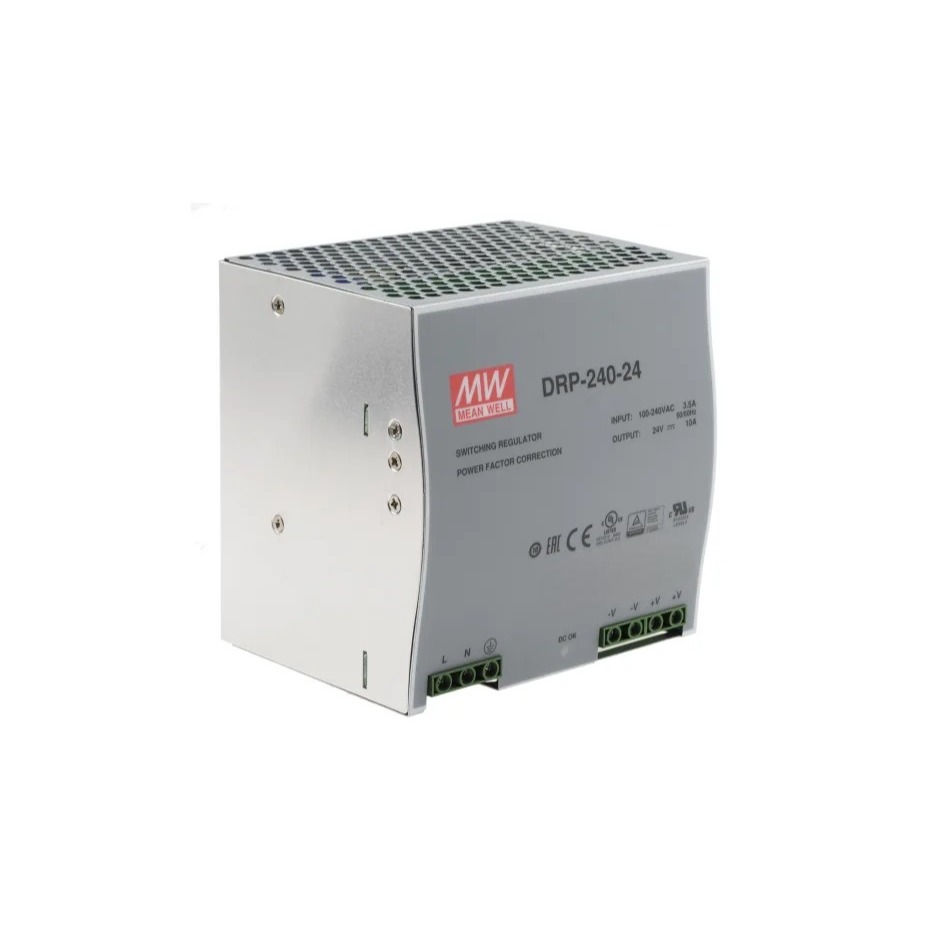

DRP-240-24 AC/DC DIN Rail Power Supply 24V, 10A, 240W
The DRP-240-24 AC/DC DIN Rail Power Supply 24V 10A 240W is a single-output industrial switching power supply designed to provide a stable 24VDC power source for industrial automation, control cabinets, machinery, instrumentation, and other electronic systems. It is part of the MEAN WELL DRP-240 series and is designed for DIN rail installation in industrial control environments. The unit provides a rated output voltage of 24VDC, a rated output current of 10A, and a rated output power of 240W.
Features:
- Provides a regulated 24VDC single output.
- Rated output current of 10A.
- Rated output power of 240W.
- Wide 85–264VAC input range.
- 120–370VDC input range.
- 47–63Hz input frequency.
- Active power factor correction function.
- Typical efficiency of 84%.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | MEAN WELL |
| Series | DRP-240 |
| Model Number | DRP-240-24 |
| Product Type | AC/DC DIN Rail Power Supply |
| Output Type | Single Output |
| Rated Output Voltage | 24VDC |
| Rated Output Current | 10A |
| Rated Output Power | 240W |
| Output Current Range | 0–10A |
| Output Voltage Adjustment Range | 24–28VDC |
| Input Voltage Range | 85–264VAC / 120–370VDC |
| Input Frequency | 47–63Hz |
| Typical AC Input Current | 2.8A @ 115VAC / 1.4A @ 230VAC |
| Typical Efficiency | 84% |
| Ripple and Noise | 80mVp-p |
| Voltage Tolerance | ±1.0% |
| Line Regulation | ±0.5% |
| Load Regulation | ±1.0% |
| Overload Protection | 105–150% Rated Output Power |
| Over-Voltage Protection | 30–36V |
| Cooling Method | Free-Air Convection |
| Operating Temperature | -10 to +70°C |
| Operating Humidity | 20–90% RH, Non-Condensing |
| Storage Temperature | -20 to +85°C |
| Storage Humidity | 10–95% RH |
| DIN Rail Type | TS35/7.5 or TS35/15 |
| Mounting Type | DIN Rail |

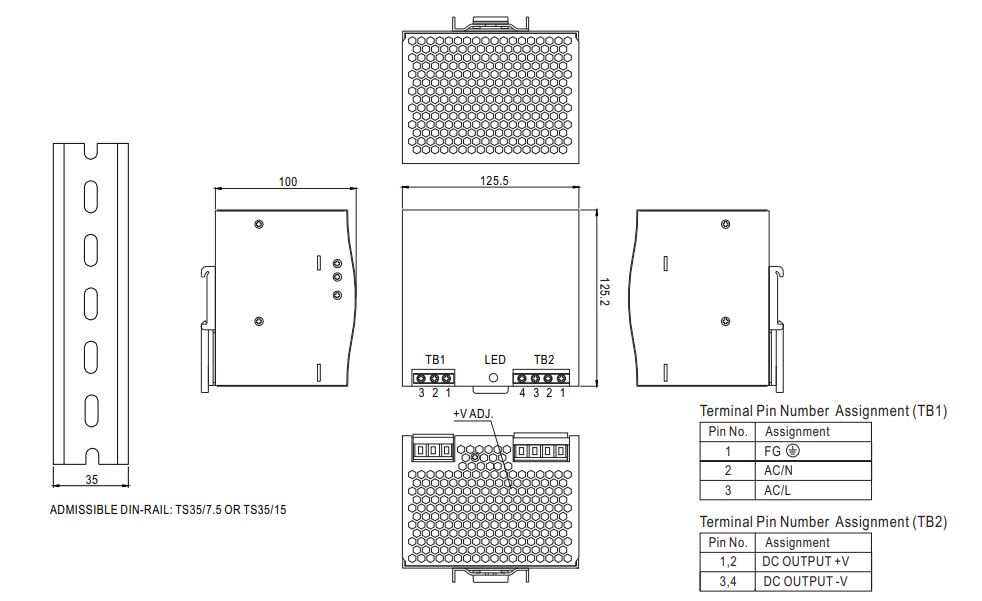

| Dimensions | 125.5 x 125.2 x 100mm (W×H×D) |
| Number of Outputs | 1 |
| Electrical Phase | Single Phase |
Applications:
- Industrial automation control panels.
- PLC control systems.
- Factory automation equipment.
- Machinery control systems.
- Industrial instrumentation.
- Electrical control cabinets.
- Building automation systems.
- Sensors and control devices requiring 24VDC.
- Relay and contactor control systems.
- Electronic equipment requiring a high-current 24VDC supply.
Package Include:
1x DRP-240-24 AC/DC DIN Rail Power Supply 24V, 10A, 240W.
