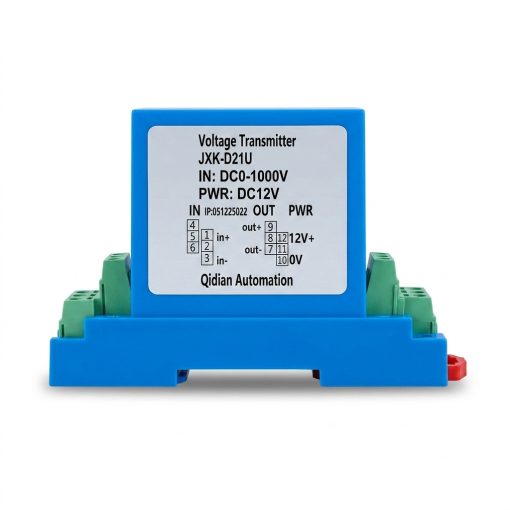

JXK-D21U DIN Rail Voltage Transmitter Sensor 12VDC DC0-1000V Primary & DC0-5V Secondary
The JXK-D21U DIN Rail Voltage Transmitter Sensor is a high-precision voltage measurement device designed for industrial automation and electrical monitoring applications. Unlike current transmitters that measure conductor current, the JXK-D21U is specifically designed to measure DC voltage and convert it into a proportional analog voltage output suitable for PLCs, microcontrollers, data acquisition systems, and industrial control equipment.
Features:
- Input overload protection
- Output overcurrent limit protection
- Output current short-circuit protection
- Wide voltage power supply
- Working power reverse protection
- Light weight and easy installation
- High precision, good linearity
- Wide frequency band, low temperature drift
- Fast response, strong anti-interference ability
Specifications:
| Product Model | JXK-D21U |
| Manufacturer | Qidian Automation |
| Measurement Type | DC Voltage Transmitter |
| Primary Input Range | DC0-1000V |
| Secondary Output | DC0-5V |
| Power Supply | DC12V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |
| Mounting Type | 35mm DIN Rail |
Wiring Diagram:
Applications:
- DC bus voltage monitoring in solar photovoltaic systems.
- Battery bank voltage measurement in energy storage systems.
- Electric vehicle charging station DC side voltage acquisition.
- Industrial DC power supply monitoring and protection.
- Telecommunications base station DC plant voltage sensing.
- UPS and inverter DC link voltage tracking.
- High-voltage DC test bench and laboratory measurement.
- Process control system analog voltage feedback loops.
Package Include:
1x JXK-D21U DIN Rail Voltage Transmitter Sensor 12VDC DC0-1000V to DC0-5V.
