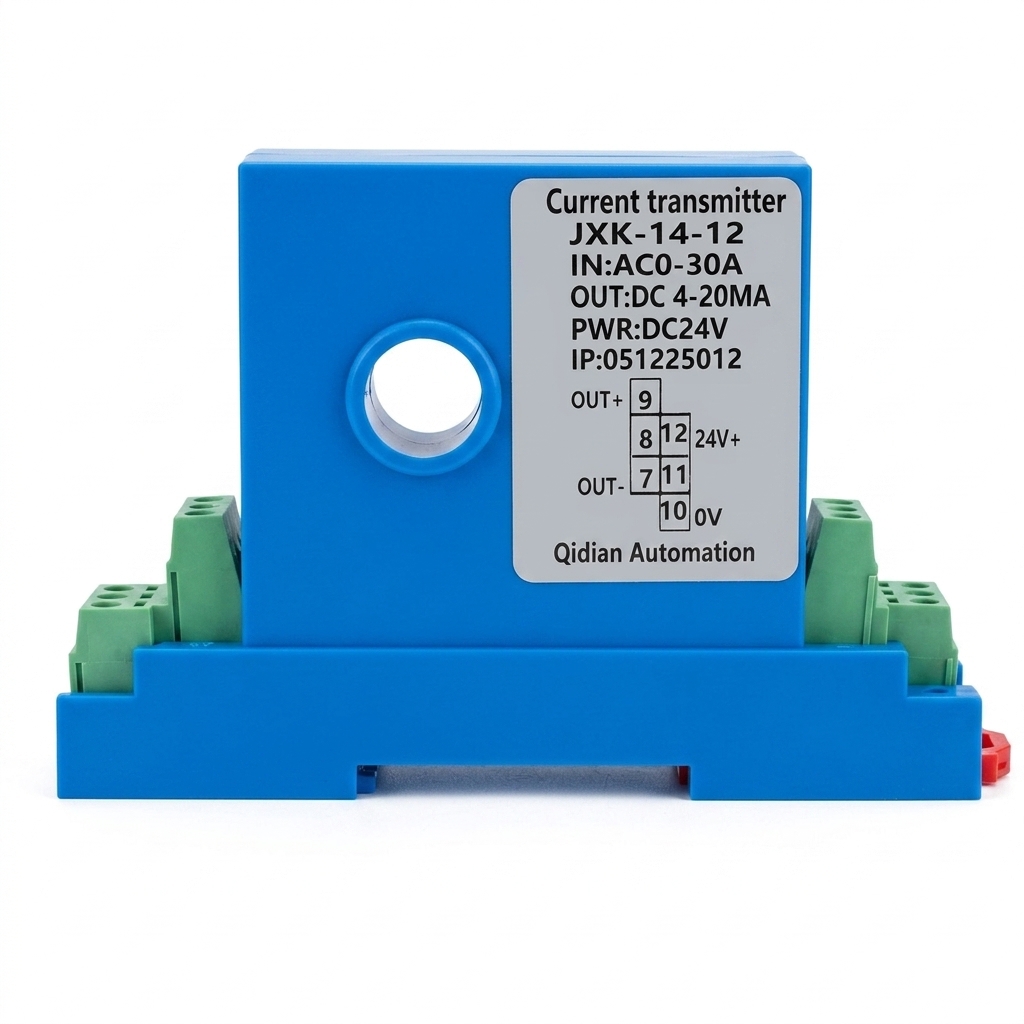

JXK-14-12 DIN Rail Current Transmitter Sensor 24VDC AC0-30A Primary & DC4-20mA Secondary
The JXK-14-12 DIN Rail Current Transmitter Sensor is a high-performance Hall-effect current transducer designed to convert AC current signals into a standard industrial DC4-20mA output. The transmitter utilizes open-loop Hall-effect measurement technology to provide accurate, isolated, and reliable current monitoring for industrial control and automation systems.
Features:
- Input overload protection
- Output overcurrent limit protection
- Output current short-circuit protection
- Wide voltage power supply
- Working power reverse protection
- Light weight and easy installation
- High precision, good linearity
- Wide frequency band, low temperature drift
- Fast response, strong anti-interference ability
Specifications:
| Parameter | Value |
|---|---|
| Product Model | JXK-14-12 |
| Manufacturer | Qidian Automation |
| Measurement Type | AC Current Transmitter |
| Primary Input Range | AC0-30A |
| Secondary Output | DC4-20mA |
| Power Supply | DC24V |
| Isolation Voltage | 2.5kV/50Hz,1Min |
| Linearity | 0.5% |
| Accuracy | 0.5%-1.0% |
| Frequency Bandwidth | DC~20kHz |
| Temperature Drift | <500PPM/°C |
| Response Time | <200ms |
| DI/DT Follow Rate | >50A/uS |
| Power Consumption | 10mA+Iout |
| Operating Temperature | -10°C~+70°C |
| Storage Temperature | -25°C~+85°C |

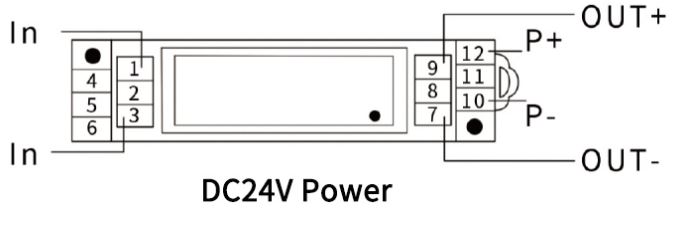

Wire Diagram:
Applications:
- PLC analog input monitoring.
- Industrial automation systems.
- Motor load monitoring.
- Power distribution panels.
- Energy management systems.
- Electrical control cabinets.
- HVAC monitoring systems.
- Industrial process control.
- Renewable energy monitoring.
- Factory equipment supervision.
Package Include:
1x JXK-14-12 DIN Rail Current Transmitter Sensor 24VDC AC0-30A to DC4-20mA
