BC807-40 5C SMD PNP Transistor 45V 0.3W 0.5A SOT-23
| parameter | Value |
|---|---|
| Model Number | BC807-40 5C |
| Component Description | 45V 500mA SMD PNP Transistor, 300mW |
| Package | SOT-23 |
| Datasheet | Datasheet |
1.50 EGP
In stockSKU 300000011592
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
BC807-40 5C SMD PNP Transistor 45V 0.3W 0.5A SOT-23
The BC807-40 5C SMD PNP Transistor 45V 0.3W 0.5A SOT-23 is a compact general-purpose PNP bipolar junction transistor designed for switching, amplification, driver, and signal-processing applications. It provides a 45V collector-emitter voltage rating and a maximum collector current of 500mA, making it suitable for a wide range of low-power electronic switching and amplification circuits.
Features:
- PNP bipolar junction transistor.
- BC807-40 transistor type.
- 45V collector-emitter voltage rating.
- 500mA collector current.
- 300mW power dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Component Type | PNP Bipolar Junction Transistor |
| Transistor Type | PNP |
| Model Number | BC807-40 5C-TD(0.35) |
| Collector-Emitter Voltage VCEO | 45V |
| Collector Current IC | 500mA |
| Power Dissipation PD | 300mW |
| DC Current Gain | 200 |
| Transition Frequency fT | 200MHz |
| Emitter-Base Voltage VEBO | 6V |
| Collector-Emitter Saturation Voltage VCE(sat) | 300mV. |
| Collector Cutoff Current | 100nA |

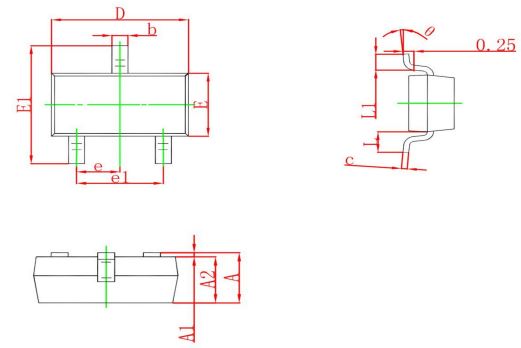

| Package | SOT-23 |
| Number of Transistors | 1 PNP |
| Operating Temperature | -55℃ to +150℃ |

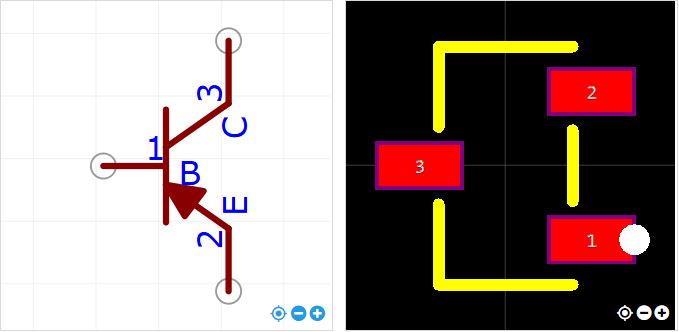

Foot Print:
Applications:
- General-purpose transistor switching.
- Low-power switching circuits.
- Signal amplification.
- Audio-frequency driver stages.
- Transistor driver circuits.
- Signal-processing circuits.
- Interface circuits.
- Control circuits.
- Embedded electronic systems.
- Consumer electronic equipment.
- Industrial control electronics.
- Compact surface-mount PCB designs.
- General-purpose PNP switching and amplification circuits.
Package Include:
1x BC807-40 5C SMD PNP Transistor 45V 0.3W 0.5A SOT-23.
