BT152–600 Thyristor 600V 13A Through Hole TO-220
18.00 EGP
Buy Now
Availability:
In Stock
SKU:3496300094622
Features:
- High thermal cycling performance.
- High voltage capability.
- Planar passivated for voltage ruggedness and reliability.
- Very high current surge capability.

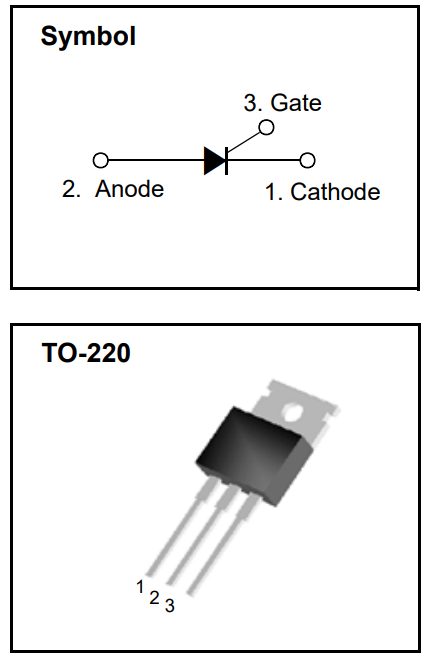

Pin Configuration:
Specifications:
| Product Attribute |
Attribute Value |
| Datasheet |
BT152-600 |
| Product Category |
SCRs |
| Model |
BT152–600 |
| Package/Case |
TO-220 |
| Mounting Style |
Through Hole |
| Number of terminals |
3 |
| Rated Repetitive Off-State Voltage VDRM |
600 V |
| Current Rating |
13 A |
| Off-State Leakage Current @ VDRM IDRM |
200 µA |
| On-State RMS Current – It RMS |
20 A |
| Maximum Gate Peak Inverse Voltage |
5 V |
| Gate Trigger Voltage – Vgt |
600 mV |
| Gate Trigger Current – Igt |
3 mA |
| Holding Current Ih Max |
60 mA |
| Non Repetitive On-State Current |
220 A |
| Operating Temperature |
-40℃~+125℃ |
Applications:
- Voltage regulation.
- Protection circuits e.g. SMPS inrush current.
- Motor control circuit in power tool.
- Heating control system.
- Domestic lighting and static switching.
- Ignition circuits.
- Alternating current switch.
- AC DC power converter.
