BUV47 NPN Bipolar Power Transistor 400V 6A TP-3PN
The BUV47 NPN Power Transistor offers a 400V sustaining voltage, 1.5V saturation voltage @ 6A, high-speed switching, and minimal lot variations. Ideal for 220V switchmode power supplies and DC/AC motor control.
50.00 EGP
In stockSKU 3496300126583
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
BUV47 NPN Bipolar Power Transistor 400V 6A TP-3PN
The BUV47 is a high-performance Silicon NPN Power Transistor. It features a robust Collector-Emitter Sustaining Voltage of 400V and a low Collector-Emitter Saturation Voltage of 1.5V (Max.) at 6A. With high-speed switching capabilities and minimal lot-to-lot variations, this transistor ensures reliable operation and consistent performance, making it an ideal choice for various power applications.
Features
- High-speed switching capability.
- Designed for high-voltage applications.
- Excellent switching performance.
- Reliable operation under demanding conditions.
- Low saturation characteristics.
- High power handling capability.
- Robust transistor construction.
- Suitable for industrial applications.
- Optimized for power conversion circuits.
- Through-hole package for easy installation.
Specifications
Absolute Maximum Ratings (Tj=25°C)
| Symbol | Parameter | Value | Unit |
|---|---|---|---|
| VCBO | Collector-Base Voltage | 850 | V |
| VCEO | Collector-Emitter Voltage | 400 | V |
| VEBO | Emitter-Base Voltage | 7 | V |
| IC | Collector Current-Continuous | 9 | A |
| ICM | Collector Current-Peak | 15 | A |
| IB | Base Current-Continuous | 8 | A |
| IBM | Base Current-Peak | 10 | A |
| PC | Collector Power Dissipation @ TC=25°C | 100 | W |
| Tj | Junction Temperature | 150 | °C |
| Tstg | Storage Temperature Range | -65~150 | °C |
Electrical Characteristics
| Symbol | Parameter | Conditions | Min | Typ | Max | Unit |
|---|---|---|---|---|---|---|
| VCEO(SUS) | Collector-Emitter Sustaining Voltage | IC= 50mA; IB= 0 | 400 | – | – | V |
| V(BR)EBO | Emitter-Base Breakdown Voltage | IE= 50mA; IC= 0 | 7 | – | – | V |
| VCE(sat)-1 | Collector-Emitter Saturation Voltage | IC= 6A; IB= 1.2A | – | – | 1.5 | V |
| VCE(sat)-2 | Collector-Emitter Saturation Voltage | IC= 9A; IB= 3A | – | – | 3.0 | V |
| VBE(sat) | Base-Emitter Saturation Voltage | IC= 6A; IB= 1.2A | – | – | 1.6 | V |
| ICBO | Collector Cutoff Current | VCE= 850V; IB= 0 | – | – | 0.15 | mA |
| IEBO | Emitter Cutoff Current | VEB= 5V; IC= 0 | – | – | 1.0 | mA |

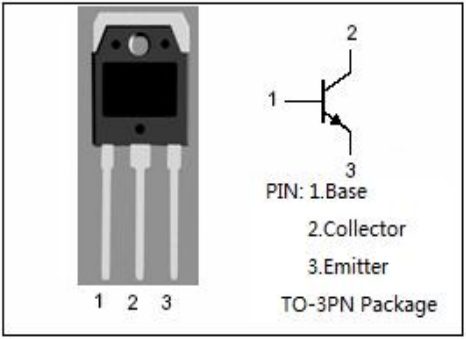

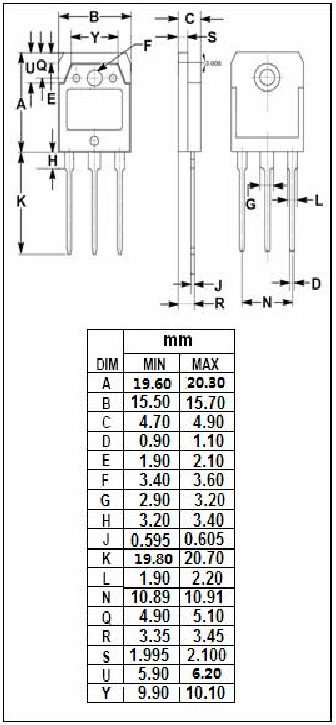

Pinout
Applications
- Switch-mode power supplies.
- AC motor control circuits.
- DC motor control circuits.
- Power inverters.
- Industrial power systems.
- High-speed switching circuits.
- Electronic repair projects.
- Power conversion equipment.
- Voltage regulation circuits.
- Industrial automation equipment.
Package Includes
- 1 × BUV47 NPN Bipolar Power Transistor 400V 6A TP-3PN.
Datasheet
| Weight | 1 g |
|---|
