BUZ325 N-Channel MOSFET 400V 12.5A TO-218AA
The BUZ325 is a high-performance N-Channel MOSFET designed for high-voltage switching applications. Featuring a voltage rating of 400V and a maximum continuous drain current of 12.5A, the BUZ325 is ideal for use in power management, amplification, and digital switching circuits. This MOSFET comes in a TO-218AA package, making it suitable for various industrial and automotive applications where high reliability and performance are critical.
Features:
- High voltage rating of 400V.
- Maximum drain current of 12.5A.
- Low on-resistance for improved efficiency.
- Fast switching speed for high-performance applications.
- TO-218AA package for efficient heat dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Drain-source breakdown voltage | 400V |
| Continuous drain current | 12.5A |
| Pulsed drain current | 50A |
| Avalanche energy single pulse | 670mJ |
| Gate-source voltage | ±20V |
| Power dissipation | 125W |
| Drain-source on-resistance | 0.35Ω |
| Thermal resistance junction-to-case | 1.0K/W |
| Operating temperature range | -55°C to 150°C |
| Package | TO-218AA |
| Manufacturer | Siemens |

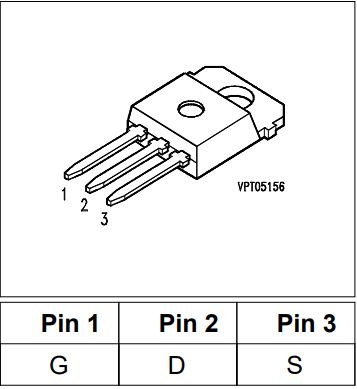

Pin Configuration:
Applications:
- High-efficiency DC-DC converters and switching regulators.
- Motor control and inverter circuits.
- Uninterruptible power supplies and welding equipment.
- Industrial power switching and automation systems.
- Automotive electronic control units.
- Solar inverters and renewable energy converters.
Package Include:
1x BUZ325 N-Channel MOSFET 400V 12.5A TO-218AA.
