CC-32900C Slim Waterproof LED Driver 5-32VDC 0.9A 30W IP67
Slim IP67 constant-current LED driver providing 900mA regulated output current across a 5–32VDC output range, with 30W maximum power and a compact 200mm housing.
250.00 EGP
Buy NowCC-32900C Slim Waterproof LED Driver 5-32VDC 0.9A 30W IP67

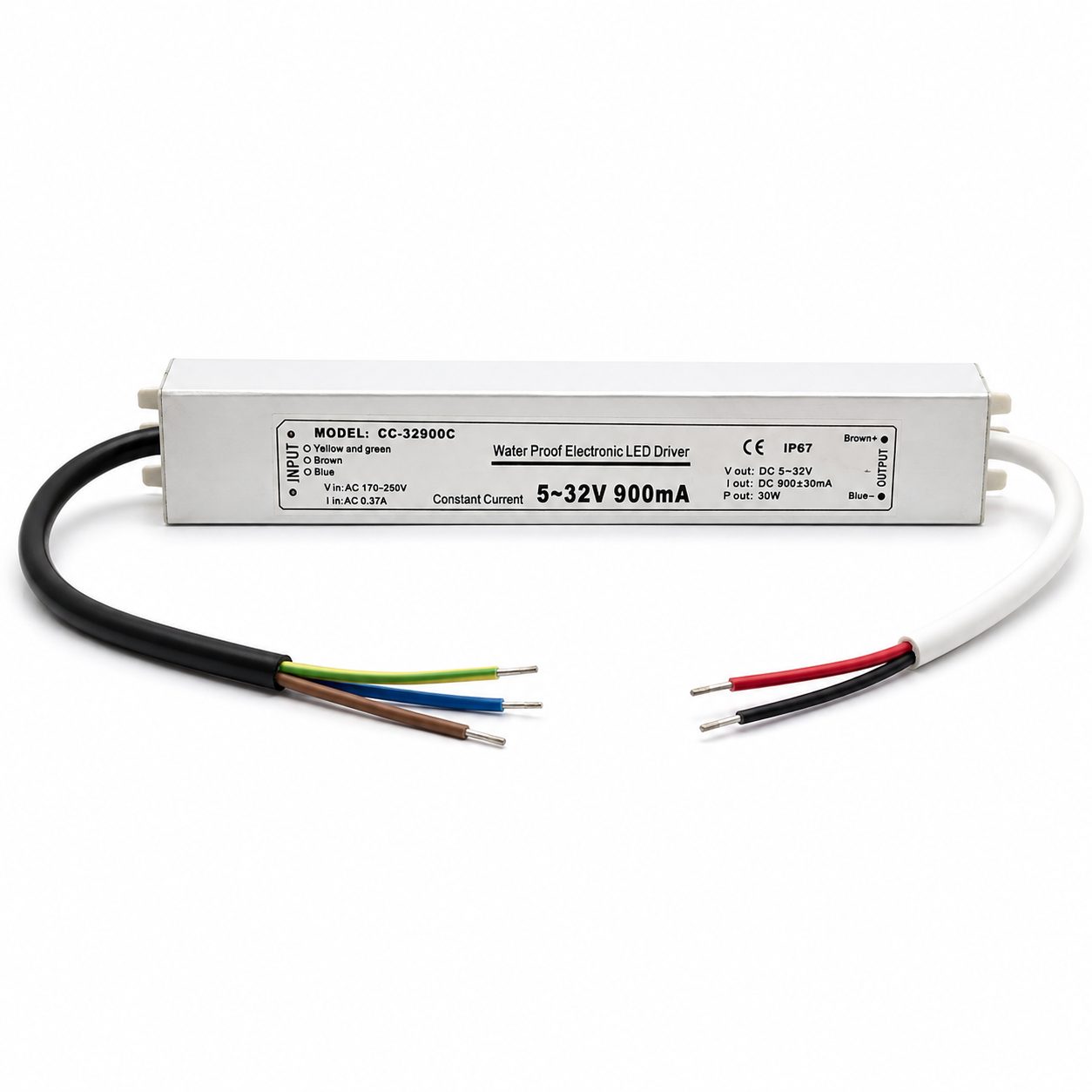

The CC-32900C Slim Waterproof LED Driver 5-32VDC 0.9A 30W IP67 is a compact constant-current electronic LED driver designed to provide a regulated 900mA DC output current for compatible LED lighting applications. The product label identifies the unit as model CC-32900C and specifies a 5–32VDC output range, 900mA nominal output current, and 30W maximum output power.
Features:
- CC-32900C constant-current LED driver.
- Regulated output current of approximately 900mA.
- 900±30mA specified output current.
- 5–32VDC output voltage range.
- 30W maximum output power.
- 170–250VAC input voltage range.
- Approximately 0.37A input current.
- IP67-rated waterproof enclosure.
- Slim 200mm-long housing.
Specifications:
| Parameter | Value |
|---|---|
| Model | CC-32900C |
| Product Type | Waterproof Electronic LED Driver |
| Driver Type | Constant Current |
| Input Voltage | 170–250VAC |
| Input Current | 0.37A |
| Output Voltage Range | 5–32VDC |
| Output Current | 900mA |
| Output Current Tolerance | ±30mA |
| Maximum Output Power | 30W |
| Protection Rating | IP67 |
| Input Cable Length | 18cm |
| Input Wire Count | 3 Wires |
| Input Conductors | Brown, Blue, Yellow/Green |
| Input Cable Length | 18cm |
| Output Wire Count | 2 Wires |
| Output Conductors | Red, Black |
| Output Cable Length | 18cm |
| Housing Length | 200mm |
| Housing Width | 20.5mm |
| Housing Height | 30.2mm |
Wire Configuration:
| Wire Configuration | Function |
|---|---|
| Brown – Input | AC Live (L) input. |
| Blue – Input | AC Neutral (N) input. |
| Yellow/Green – Input | Protective Earth (PE) / Ground. |
| Red – Output | DC Positive (+) output. |
| Black – Output | DC Negative (−) output. |
Applications:
- Constant-current LED lighting systems.
- Compatible LED modules requiring approximately 900mA.
- LED luminaires designed for 5–32VDC operation at 900mA.
- Architectural LED lighting.
- Decorative LED lighting.
- Display and cabinet LED lighting.
- Signage and advertising LED lighting.
- Suitable outdoor LED lighting installations when correctly installed.
- Other compatible 900mA constant-current LED applications.
Package Include:
1x CC-32900C Slim Waterproof LED Driver 5-32VDC 0.9A 30W IP67
