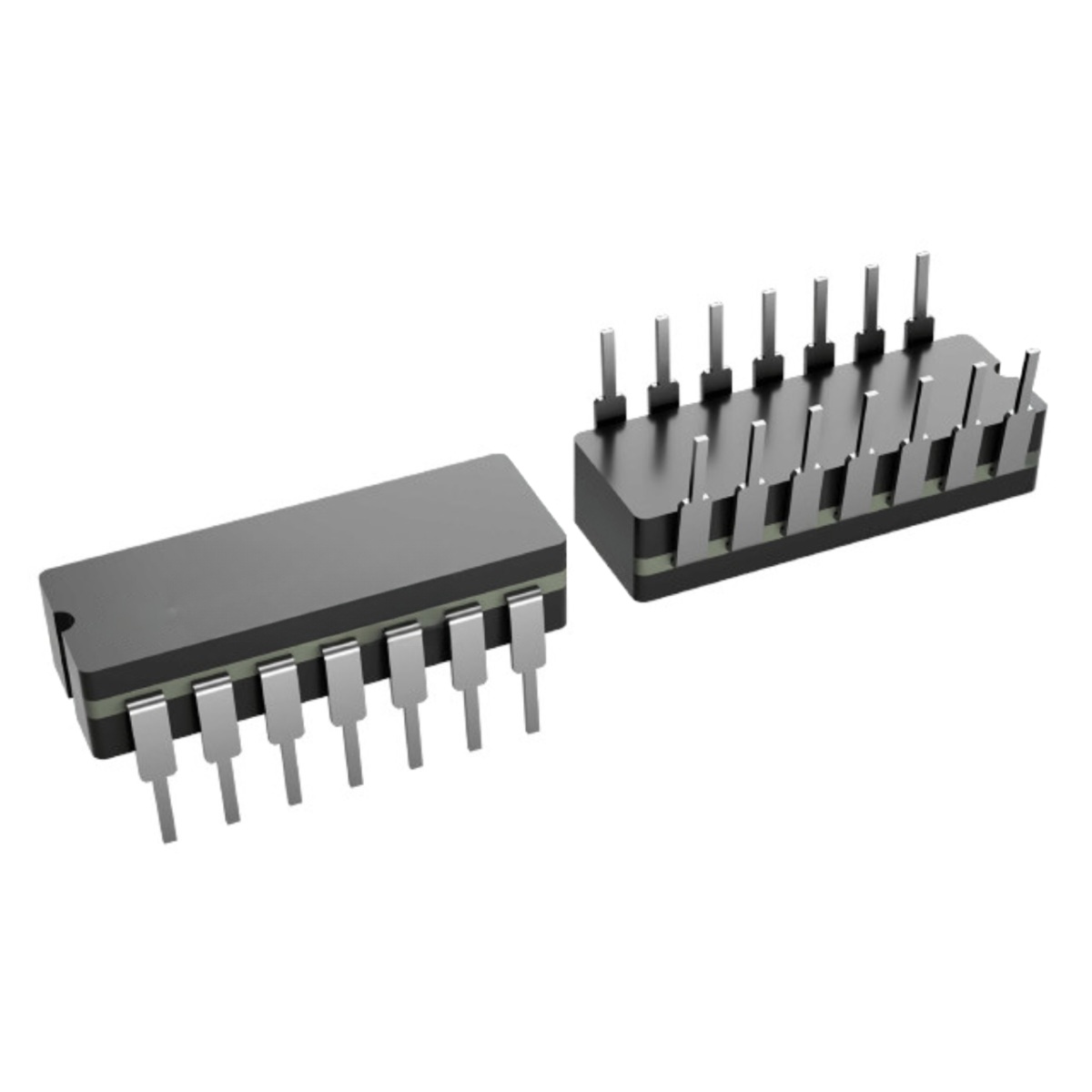

CD4011B High-Voltage CMOS Quad 2-Input NAND Gate 20V ±10mA DIP-14
The CD4011B is a high-voltage CMOS integrated circuit containing four independent 2-input NAND gates. It provides system designers with a direct implementation of the NAND logic function and supplements the existing family of CMOS gates. To ensure exceptional signal consistency, uniform driving capability, and noise immunity across various operational states, all inputs and outputs are fully buffered.
Features:
- Buffered Inputs and Outputs.
- High-Voltage Types.
- Standardized Symmetrical Output.
- Ultra-Low Quiescent Current.
- High Noise Margin.
- Industry Standards Compliance.
Specifications:
| Category | Parameter / Characteristic | Test Conditions / Details | Value / Range | Units |
|---|---|---|---|---|
| Recommended Operating Conditions | ||||
| Operating Supply: | Supply-Voltage Range (VDD) | Over full package temperature range | 3 to 18 | V |
| Temperature: | Operating Temperature Range (TA) | – | -55 to +125 | °C |
| Absolute Maximum Ratings | ||||
| Absolute Ratings: | DC Supply-Voltage Range (VDD) | Voltages referenced to VSS terminal | -0.5 to +20 | V |
| Input Voltage Range | All inputs | -0.5 to VDD + 0.5 | V | |
| DC Input Current | Any one input | ±10 | mA | |
| Power Dissipation Per Package (PD) | For TA = -55°C to +100°C (Derate linearly at 12mW/°C to 200mW from +100°C to +125°C) |
500 | mW | |
| Device Dissipation Per Output Transistor | Over full package temperature range | 100 | mW | |
| Dynamic Electrical Characteristics (at TA = 25°C, CL = 50 pF, RL = 200 kΩ, Input tr, tf = 20 ns) | ||||
| Propagation Delay Time: | tPHL, tPLH (Typical / Maximum) | VDD = 5 V | 125 / 250 | ns |
| VDD = 10 V | 60 / 120 | ns | ||
| VDD = 15 V | 45 / 90 | ns | ||
| Transition Time: | tTHL, tTLH (Typical / Maximum) | VDD = 5 V | 100 / 200 | ns |
| VDD = 10 V | 50 / 100 | ns | ||
| VDD = 15 V | 40 / 80 | ns | ||
| Capacitance: | Input Capacitance (CIN) | Any input (Typical / Maximum) | 5 / 7.5 | pF |
| Thermal & Soldering Specifications | ||||
| Storage & Soldering: | Storage Temperature Range (Tstg) | – | -65 to +150 | °C |
| Lead Temperature (During Soldering) | Distance 1/16 ± 1/32 inch (1.59 ± 0.79mm) from case for 10s max | +265 (Max) | °C | |
All measurements are shown in Inches with Millimeters provided in brackets
Applications:
- Direct implementation of the NAND logic function.
- Gating networks and custom logic circuits.
- Signal squaring and buffering pipelines in standard/high-voltage CMOS systems.
Package Content:
- 1x CD4011B High-Voltage CMOS Quad 2-Input NAND Gate 20V ±10mA DIP-14
