Chip Resistor SMD 20Ω ±5% 0.125W ±100ppm/℃ 0805
The Chip Resistor SMD 20Ω ±5% 0.125W ±100ppm/℃ 0805 is a compact surface-mount thick-film resistor designed for general-purpose electronic circuits and PCB assemblies. It provides a nominal resistance of 20Ω with a ±5% tolerance, making it suitable for circuit designs requiring a standard resistance value with practical tolerance performance.
Features:
- 20Ω nominal resistance for general-purpose electronic circuit applications.
- ±5% resistance tolerance for practical circuit designs.
- 125mW rated power for low-power PCB applications.
- 0805 surface-mount package for compact PCB layouts.
- Thick-film resistor construction.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | FOJAN |
| Part Number | FRC0805J200TS |
| Component Type | Thick Film Chip Resistor |
| Resistance | 20Ω |
| Tolerance | ±5% |
| Rated Power | 125mW |
| Package | 0805 |
| Temperature Coefficient | ±100ppm/°C |
| Maximum Overload Voltage | 150V |
| Operating Temperature Range | -55°C to +155°C |
| Mounting Type | Surface Mount |

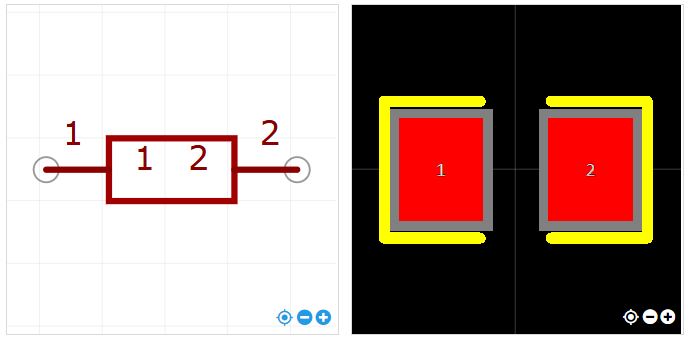

Foot Print:
Applications:
- Current-limiting circuits.
- Signal damping circuits.
- Signal conditioning circuits.
- Voltage-divider networks.
- Biasing circuits.
- Pull-up and pull-down networks.
- Circuit termination applications.
- Sensor interface circuits.
- Analog and digital electronic circuits.
- General-purpose PCB assemblies.
Package Include:
1x Chip-Resistor SMD 20Ω ±5% 0.125W ±100ppm/℃ 0805.
