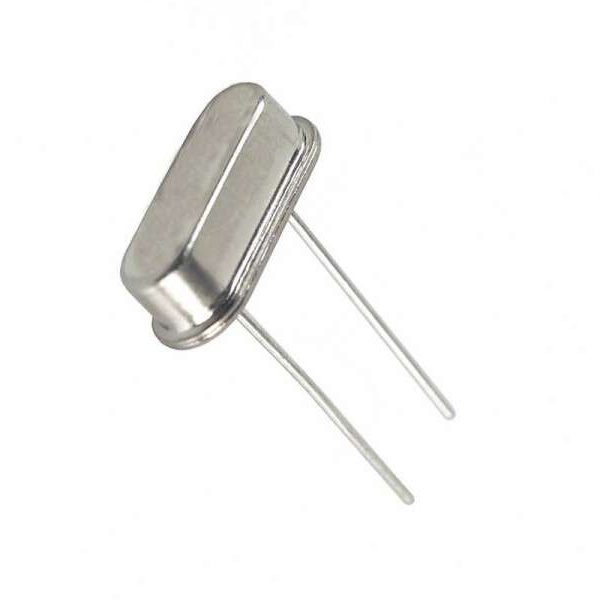

Crystal 40.233MHz 20PPM 20pF 40Ω HC-49S
Crystal 40.233MHz HC-49S offers high-frequency stability with 20ppm tolerance, 20pF load capacitance, and 40Ω resistance for fast and accurate timing circuits.
5.00 EGP
In stockSKU 34963000670610
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Crystal 40.233MHz 20PPM 20pF 40Ω HC-49S
The Crystal 40.233MHz 20PPM 20pF 40Ω HC-49S is a high-frequency quartz crystal designed for precision timing in high-speed digital and RF circuits. It operates at a nominal frequency of 40.233MHz with a tight frequency tolerance of ±20ppm, ensuring excellent stability and accuracy. Featuring a 20pF load capacitance and 40Ω series resistance, this crystal delivers consistent performance in demanding electronic applications. Housed in the industry-standard HC-49S package, it supports easy integration into a variety of circuit boards, making it ideal for use in communication devices, microprocessors, and frequency control systems.
Features:
- High-frequency operation at 40.233MHz.
- Tight frequency tolerance of ±20ppm for precise timing.
- 20pF load capacitance for stable oscillation.
- 40Ω equivalent series resistance.
- Standard HC-49S through-hole package.
- Excellent frequency stability over temperature range.
- Durable metal can construction.
- Suitable for high-speed digital and RF applications.
Specifications:
| Parameter | Specification |
|---|---|
| Type | Quartz Crystal Oscillator |
| Package | HC-49/S |
| Nominal Frequency | 40.233MHz |
| Load Capacitance (CL) | 20 pF |
| Frequency Tolerance | ±20 ppm at 25 °C |
| Frequency Stability | ±30 ppm over −20 °C to +70 °C |
| Operating Temperature | −20 °C to +70 °C |
| Storage Temperature | −40 °C to +85 °C |
| Shunt Capacitance (C0) | ≤7 pF |
| Drive Level | 100 µW (typical), Max. 1 mW |
| Equivalent Series Resistance (ESR) | ≤40 Ω |
| Aging | ±5 ppm/year |
| Mounting Style | Through Hole |
| Pin Count | 2 |
Dimensions:
Applications:
- High-speed microprocessor and FPGA clock generation.
- RF and wireless communication systems.
- Data transmission and networking equipment.
- Frequency synthesizers and timing modules.
- Test and measurement instruments.
- Digital signal processing (DSP) systems.
- High-frequency switching power supplies.
- Industrial and scientific electronic equipment.
Package Contents:
- 1 X Crystal 40.233MHz 20PPM 20pF 40Ω HC-49S
