The Crystal 6.7458MHz 20PPM 20pF 40Ω HC-49S is a precision quartz crystal designed to provide stable and accurate frequency control in a variety of electronic applications. Operating at 6.7458MHz with a tight frequency tolerance of ±20ppm, it ensures dependable timing performance. The crystal features a 20pF load capacitance and 40Ω series resistance, offering reliable oscillation and low signal distortion. Housed in the industry-standard HC-49S through-hole package, it is easy to mount and integrate into PCBs, making it ideal for use in communication systems, microcontrollers, frequency generators, and timing circuits.

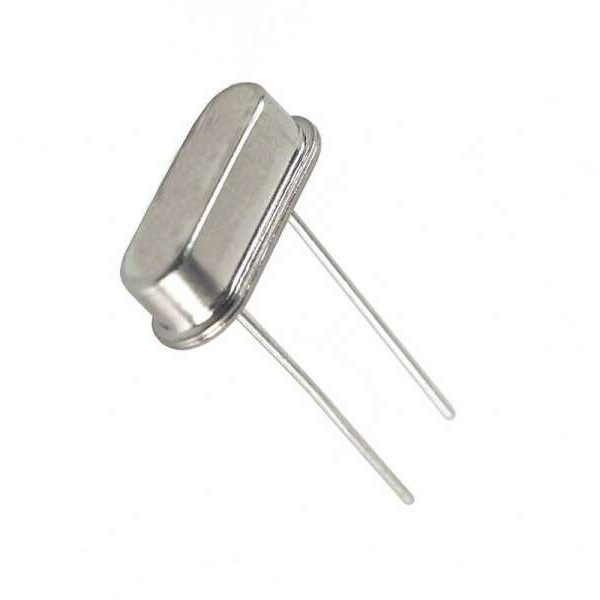

Crystal 6.7458MHz 20PPM 20pF 40Ω HC-49S
Crystal 6.7458MHz HC-49S ensures accurate timing with ±20ppm tolerance, 20pF load capacitance, 40Ω resistance, ideal for embedded and communication systems.
3.00 EGP
In stockSKU 3496300067114
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Crystal 6.7458MHz 20PPM 20pF 40Ω HC-49S
Features:
- Precise 6.7458MHz operating frequency.
- ±20ppm frequency tolerance for high accuracy.
- 20pF load capacitance for stable oscillation.
- 40Ω equivalent series resistance.
- HC-49S standard through-hole metal can package.
- Reliable frequency stability over a wide temperature range.
- Low phase noise and consistent performance.
- Suitable for communication, timing, and embedded systems.
Specifications:
| Standard Frequency (MHz) | 6.7458 |
| Frequency Tolerance (ppm) | ±20 |
| Load Capacitance (pF) | 20 |
| Equivalent Series Resistance (Ω) | 40 |
| Pin Count | 2 |
| Mounting | Through Hole |
| Package | HC-49S |
Dimensions:
Applications:
- RFID and NFC communication systems.
- Microcontroller and embedded system clock sources.
- Wireless data transmission modules.
- Frequency synthesizers and timing circuits.
- Industrial control and automation systems.
- Consumer electronics and smart devices.
- Contactless payment and access control systems.
- Test and measurement equipment.
Package Contents:
- 1 X Crystal 6.7458MHz 20PPM 20pF 40Ω HC-49S
