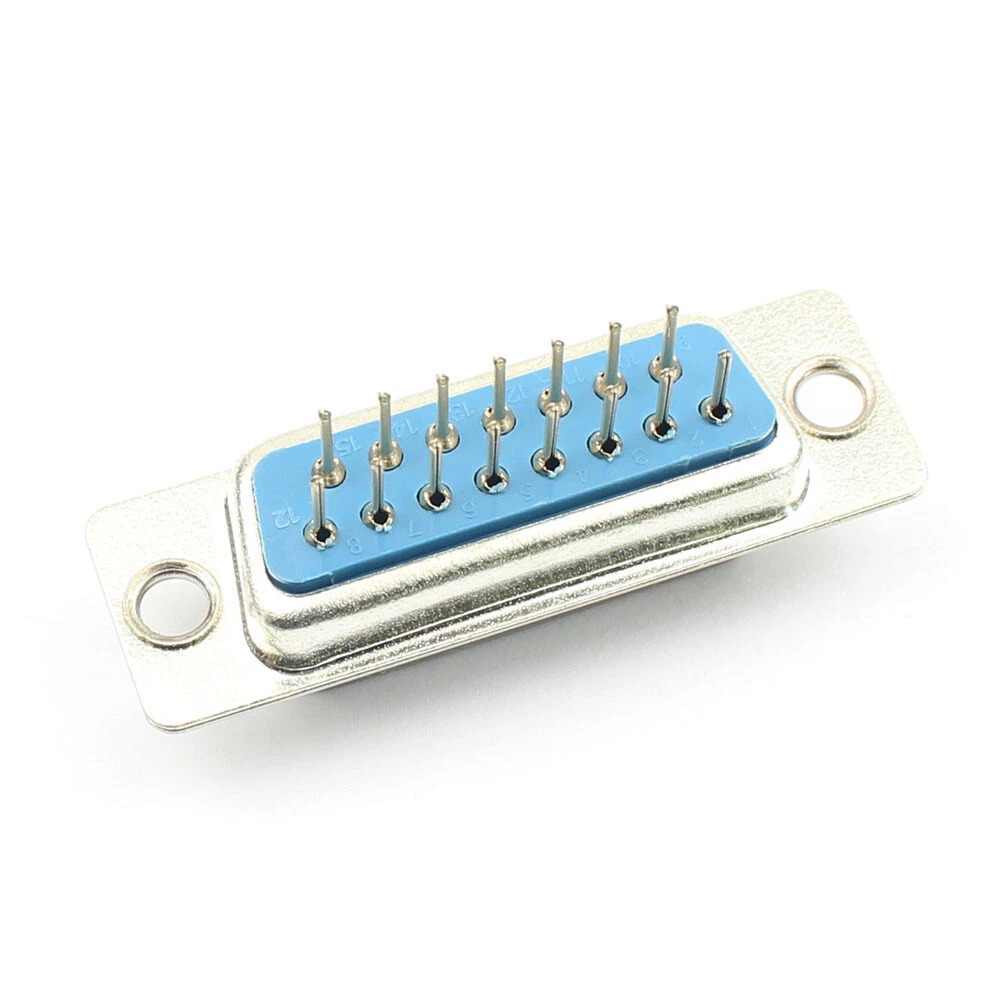

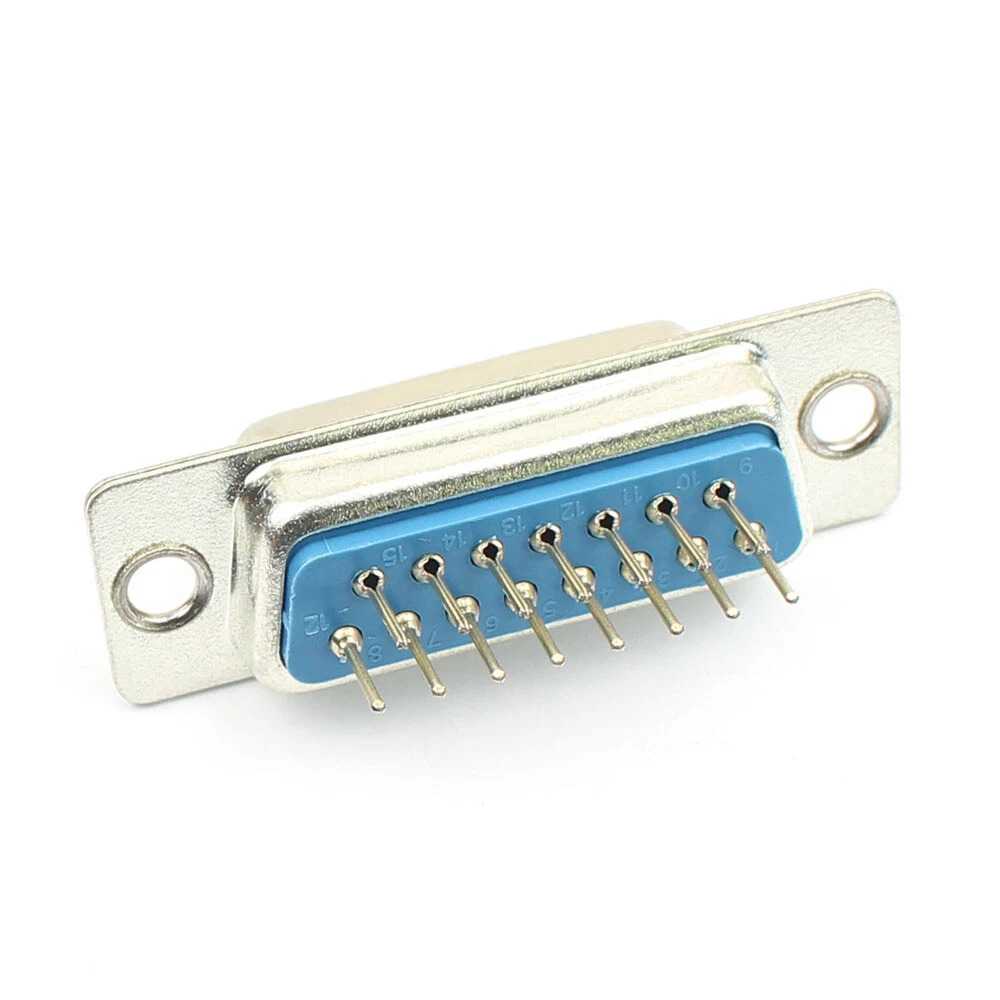

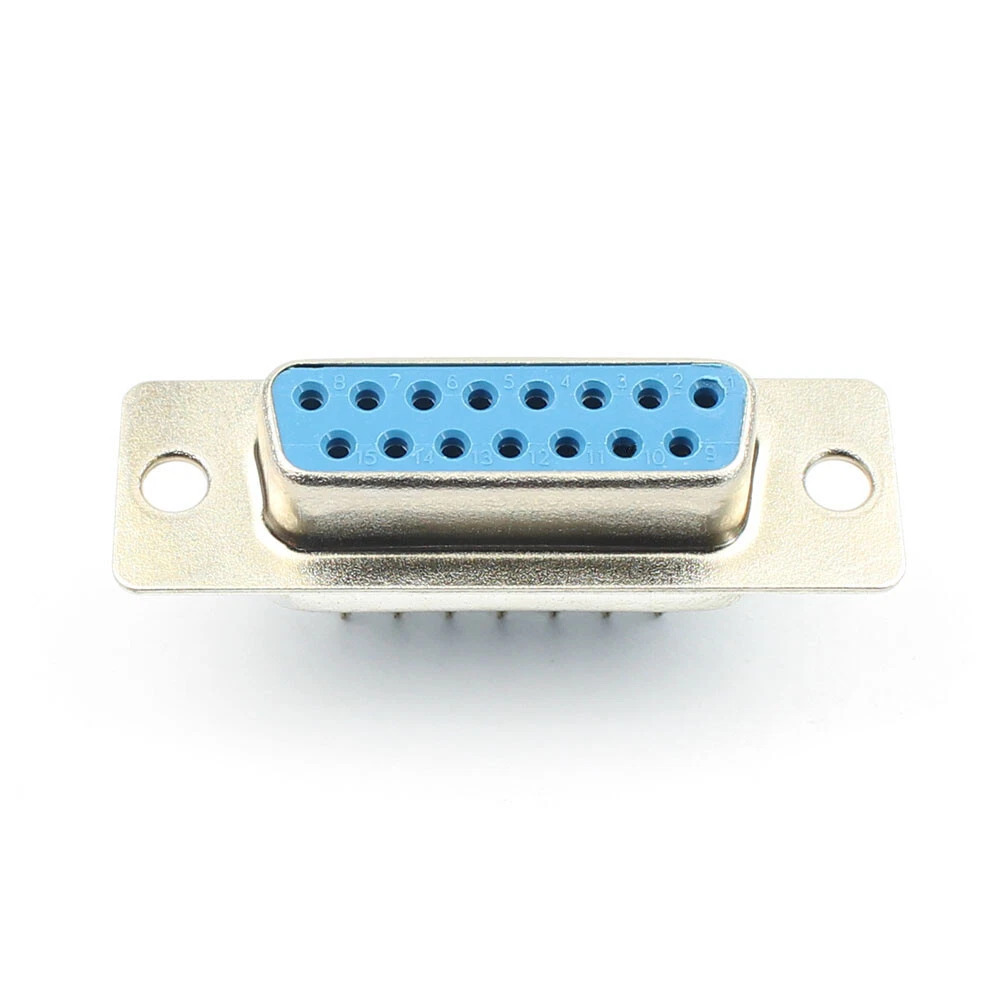

D-Type Connector PCB Type Female D-15 (15 pins) 2Rows Straight
The D-Type Connector PCB Type Female D-15 (15 pins) 2 Rows Straight is a reliable, high-performance connector designed for use in printed circuit board (PCB) applications. This connector features 15 female pins arranged in two rows, offering a secure and compact connection for a wide range of electronic devices.
Features:
- 15 female pins in two rows for secure connection.
- Straight-through-hole mounting for easy PCB integration.

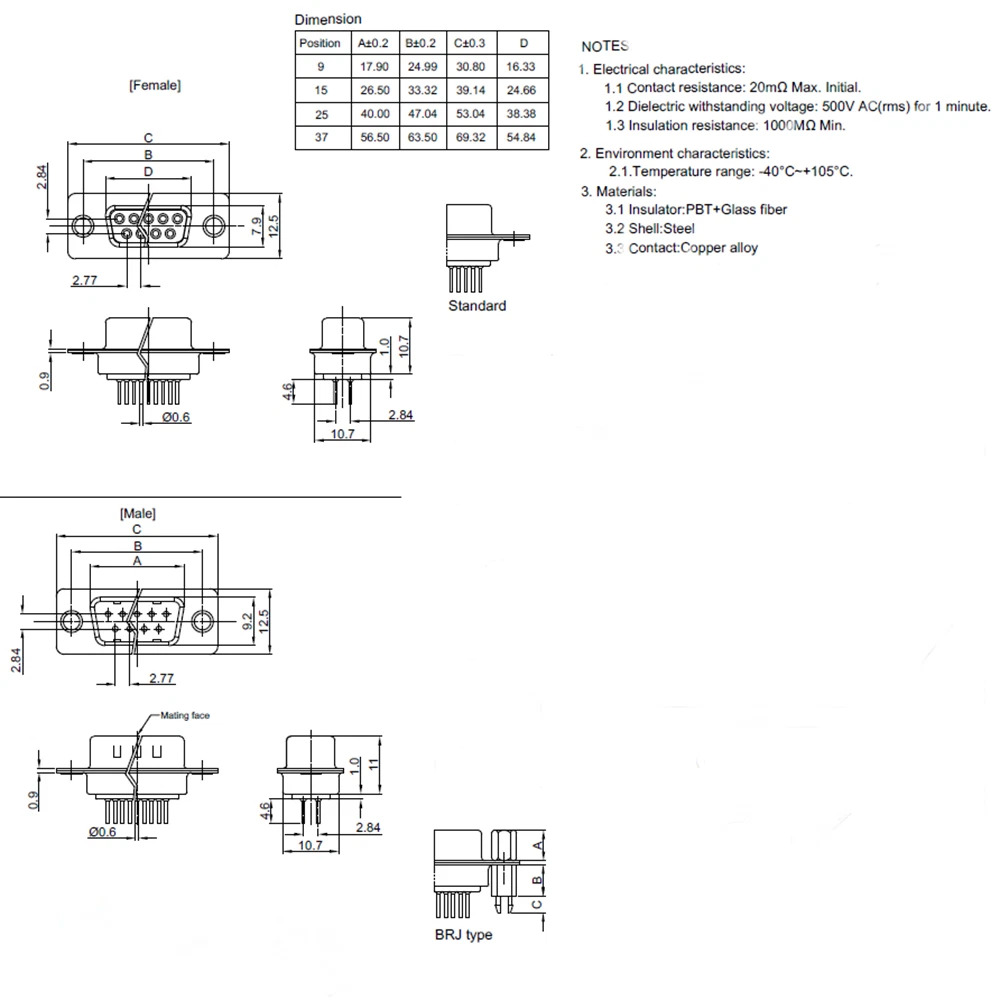

- Compact design with 39.1mm length, 14.7mm width, and 12.5mm height.
- Durable and high-performance connector ideal for video and communication applications.
Specifications:
| Parameter | Value |
|---|---|
| Number of Pins: | 15 |
| Pin Arrangement: | 2 Rows |
| Connector Type: | Female PCB Mount |
| Mounting Type: | Straight Through Hole |
| Length: | 39.1mm |
| Width: | 14.7mm |
| Height: | 12.5mm |
| Operating Temperature: | -55°C to +105°C |
| Material: | Metal (Fe) |
| Package Type: | PCB Type |
Applications:
- VGA connectors for video signal transmission.
- Serial communication applications.
- Industrial control systems.
- Consumer electronics and AV equipment.
- Data transmission systems.
Package included:
- 1x D-Type Connector PCB Type Female D-15 (15 pins) 2Rows Straight
