D1 Mini Node Mcu Lua Wifi ESP8266 Wemos Development Board with Type-C USB
he D1 Mini Node Mcu Lua Wifi ESP8266 Wemos Development Board with Type-C USB is a highly versatile microcontroller board engineered for Internet of Things (IoT) applications. Powered by the ESP8266 microcontroller, this board integrates robust Wi-Fi connectivity, enabling seamless communication in wireless networks. Its compact dimensions of 34.2 x 25.4 mm make it an excellent choice for projects where space is a constraint, such as wearable devices, smart home systems, and remote sensors. The inclusion of a modern Type-C USB port enhances user convenience by providing a reversible connection for programming and power supply, aligning with contemporary connectivity standards.
Features:
- 11 digital IO, interrupt/pwm/I2C/one-wire supported(except D0)
- 1 analog input(3.2V max input)
- Type-C USB Port
- LOLIN I2C Port
- Compatible with MicroPython, Arduino, nodemcu.
Specifications:
|
Parameter |
Value |
|---|---|
|
Microcontroller |
ESP8266 |
|
Operating Voltage |
3.3V |
|
Input Voltage |
5V (via USB or 5V pin) |
|
Digital I/O Pins |
11 |
|
Analog Input Pins |
1 (0-3.2V) |
|
Flash Memory |
4MB |
|
Clock Speed |
80/160M |
|
Dimensions |
34.2 x 25.6 mm |

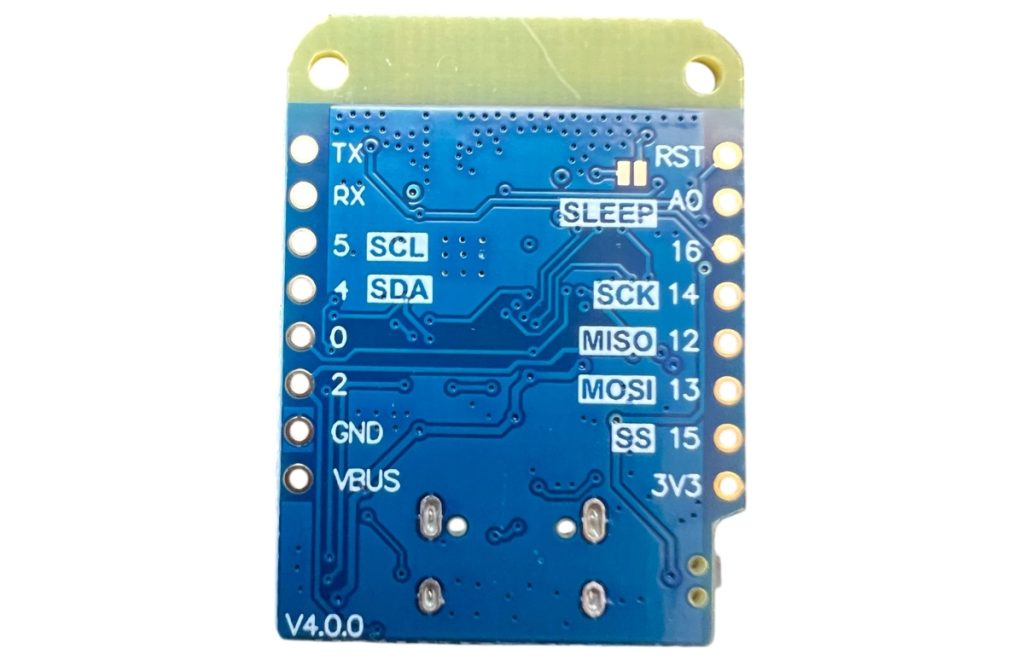

Pin Configurations:
Applications:
- Home automation systems for controlling lights, appliances, and security devices.
- Wireless sensor networks for environmental monitoring and data collection.
- IoT projects requiring internet connectivity and data logging.
- Wearable devices with wireless communication capabilities.
- Robotics and automation for remote control and monitoring.
- Educational projects to teach programming, electronics, and networking.

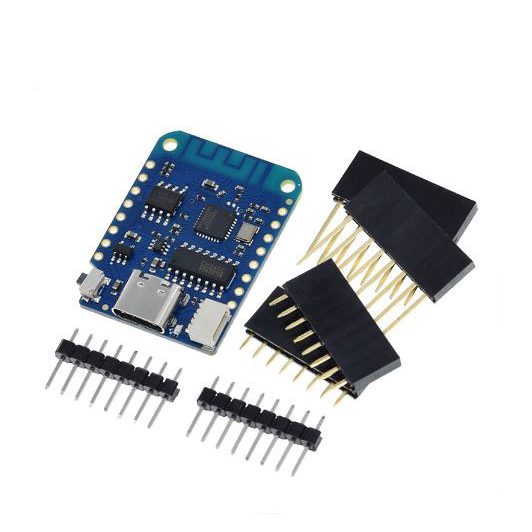

Package Include:
- 1x D1 Mini Node Mcu Lua Wifi ESP8266 Wemos Development Board with Type-C USB.
- 2x Long female PCB pin header (8 pins).
- 2x Short female PCB pin header (8 pins).
- 2x male pin header (8 pins).
