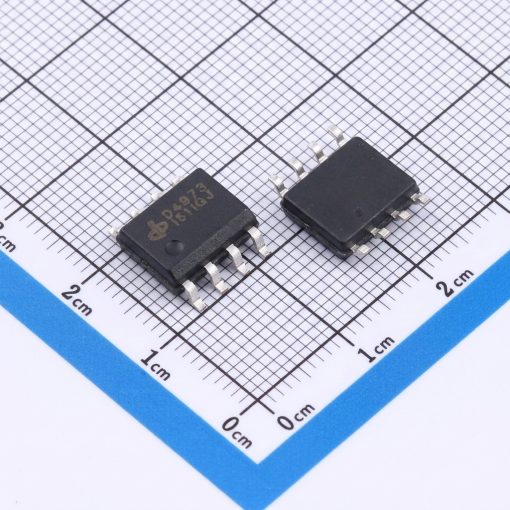

D4973 LED Display Driver IC SMD SOP-8
The D4973 LED Display Driver IC SMD SOP-8 is a specialized integrated circuit designed for driving and controlling LED display systems. Housed in a compact SOP-8 surface-mount package, this IC is optimized for applications requiring efficient LED scanning, display control, and signal management in compact PCB layouts.
Features:
- Designed for LED display driving and control applications.
- SOP-8 SMD package suitable for compact PCB layouts.
- Supports LED scanning and blanking control functions.
- Built-in short-circuit protection and over-current protection.
Specifications:
| Parameter | Value |
|---|---|
| Manufacturer | DBIC (Shanghai Double Microelectronics) |
| Part Number | D4973 |
| Product Type | LED Large Screen Scan Blanking Control Circuit |
| Package | SO-8 (SOP-8) |
| ESD Protection | 8000V |
| Protection Features | Short-circuit protection, over-current protection |
| Operating Temperature | -40°C to +85°C (typical) |

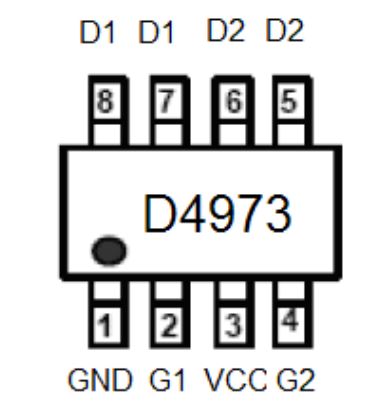

Pin Configuration:
Applications:
- LED display panels and modules.
- Digital signage systems.
- Indicator and segment display control.
- Consumer electronics with LED displays.
- Industrial control panels.
- Embedded display systems.
Package Include:
1x D-4973 LED Display Driver IC SMD SOP-8
