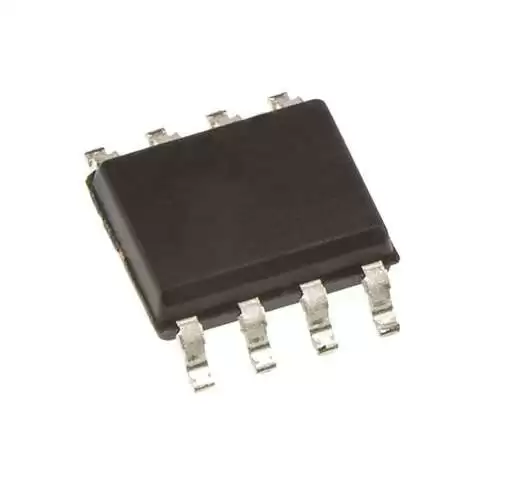

L9110S SMD Dual Channel Motor Driver IC SOP-8

Overview

The L9110S is a DC motor drive circuit that provides an ideal solution for battery-powered toys, and low-voltage or battery-powered control applications.
A solution with integrated DC motor drive. The circuit integrates an H-bridge drive circuit designed using MOS tubes, which are mainly used for driving
Universal DC motor. Its main features are as follows:

• Built-in power tube realizes motor bridge drive
• Low standby current
• CMOS process implementation
• Typical voltage value: 5V
• Drive capability: VDD1=VDD2=4.5V, output current can reach 400mA
• Universal DC motor drive
• Can drive 800mA motor
• Packaging form: SOP8

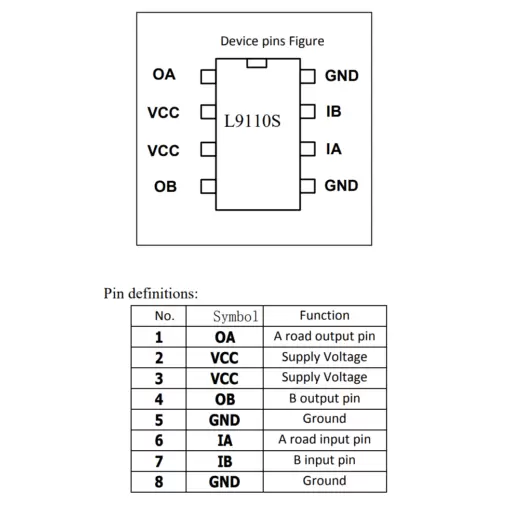

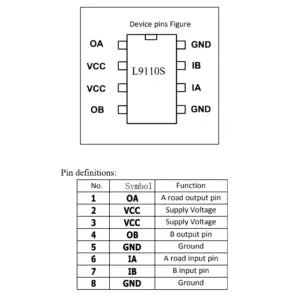

Datasheet: L9110S

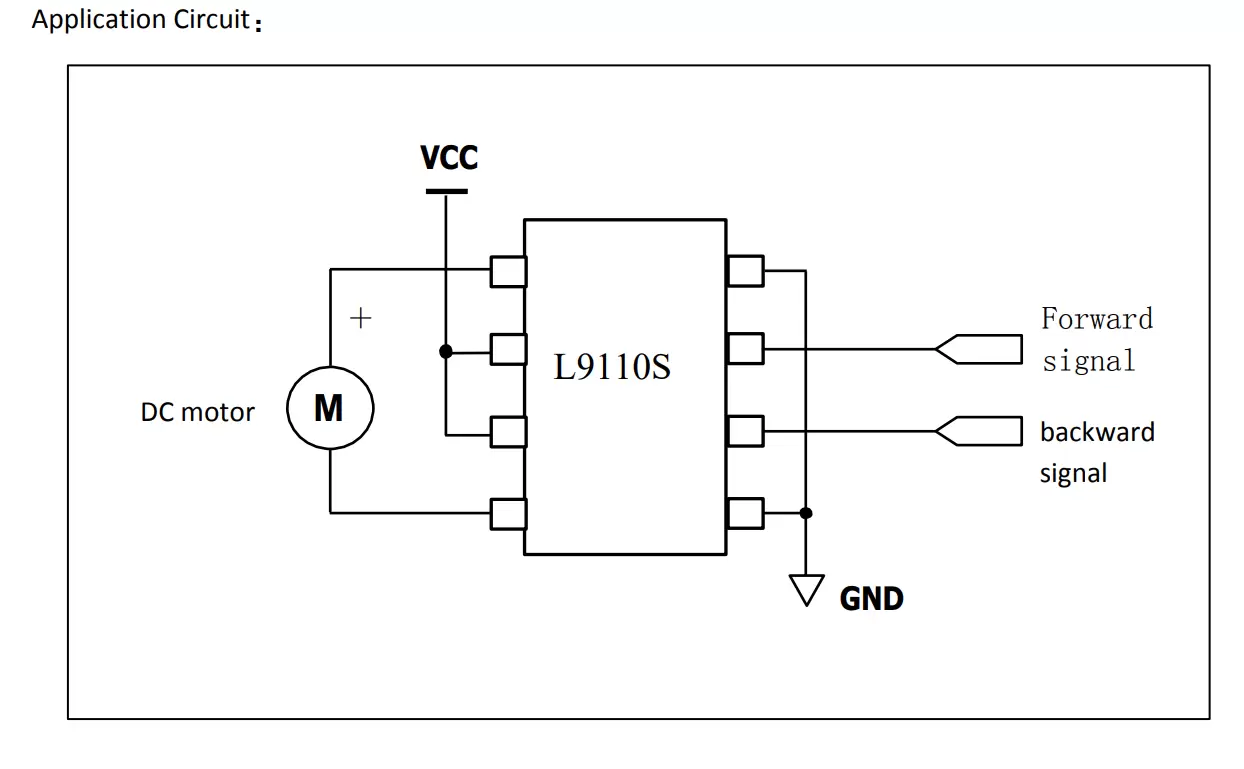

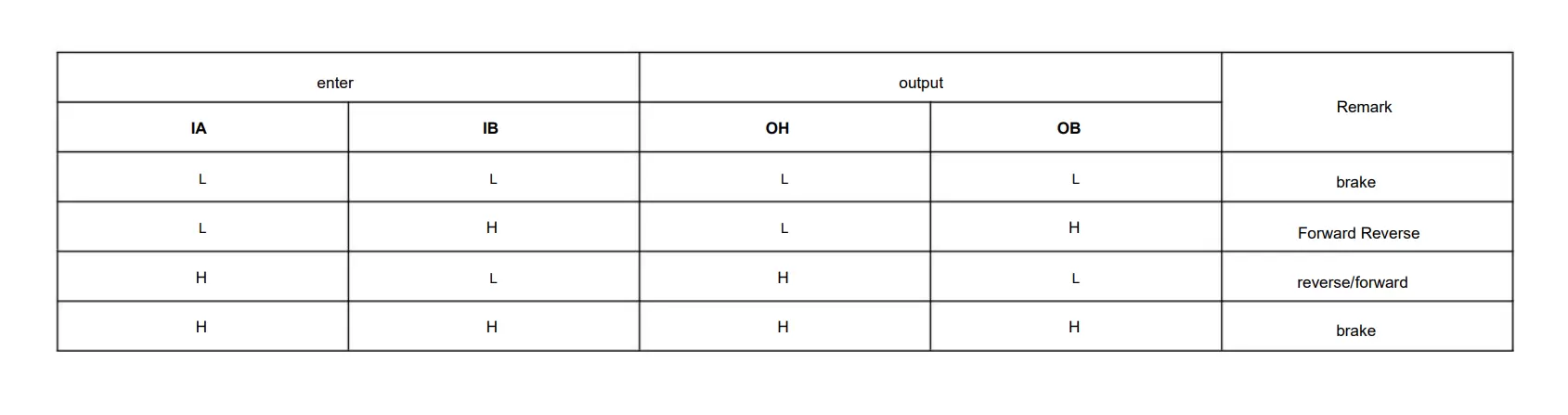

Logic Diagram
