DAC0808LCN 8-Bit D/A Converter ±4.5V to ±18V 2mA DIP-16
The DAC0808LCN is an 8-bit monolithic digital-to-analog converter (DAC) designed for high-speed digital-to-analog conversion. It provides a typical full-scale output current settling time of 150 ns while dissipating only 33 mW with ±5V supplies.
The DAC0808 provides relative accuracy better than ±0.19%, supporting 8-bit monotonicity and linearity. Its zero-level output current is less than 4 µA, providing 8-bit zero accuracy for a reference current of IREF ≥ 2 mA.
The device interfaces directly with TTL, DTL, and CMOS logic levels and is specified for a power supply voltage range of ±4.5V to ±18V. The DAC0808LCN is supplied in the N16A 16-pin Dual-In-Line Package and has an operating temperature range of 0°C to +75°C.
Features
- 8-bit monolithic digital-to-analog converter
- Relative accuracy: ±0.19% error maximum
- Full-scale current match: ±1 LSB typical
- Fast settling time: 150 ns typical
- TTL and CMOS compatible noninverting digital inputs
- High-speed multiplying input slew rate: 8 mA/µs
- Power supply voltage range: ±4.5V to ±18V
- Low power consumption: 33 mW at ±5V supplies
- Zero-level output current: less than 4 µA
- Typical full-scale output current: 2.0 mA
Specifications
| Parameter | Specification |
|---|---|
| Part Number | DAC0808LCN |
| Device Type | 8-Bit D/A Converter |

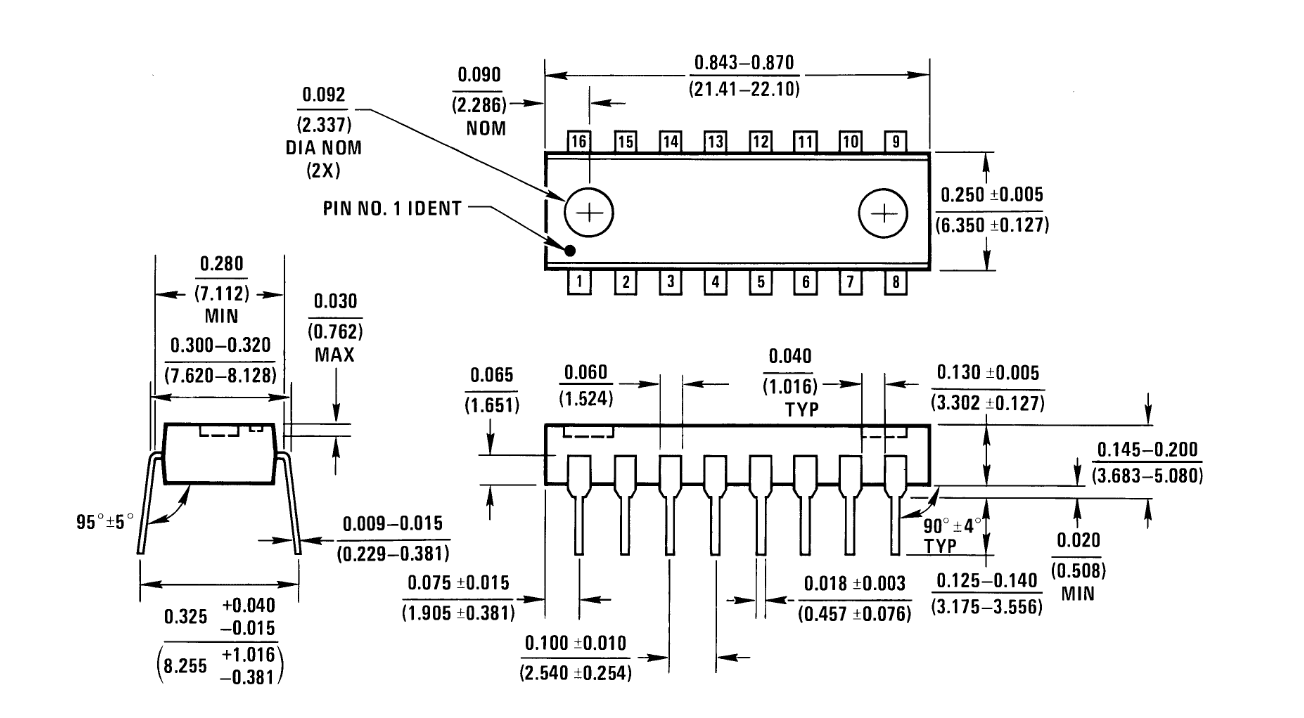

| Package | 16-Pin Dual-In-Line Package, N16A (N Package) |
| Accuracy | 8-bit |
| Operating Temperature Range | 0°C to +75°C |
| Power Supply Voltage Range | VCC = +4.5V to +18V; VEE = −4.5V to −18V |
| Typical Settling Time | 150 ns to within 1/2 LSB |
| Propagation Delay Time (tPLH, tPHL) | 30 ns typ; 100 ns max |
| Relative Accuracy | ±0.19% maximum error |
| Full-Scale Current Match | ±1 LSB typical |
| Output Current | 1.9 mA min; 1.99 mA typ; 2.1 mA max Condition: VREF = 2.000V, R14 = 1000Ω |
| Output Current Range | 2.0 mA typ at VEE = −5V; up to 4.2 mA at VEE = −15V, TA = 25°C |
| Output Current, All Bits Low | 0 to 4 µA |
| Full-Scale Current Drift | ±20 ppm/°C |
| Reference Input Bias Current | −1 µA to −3 µA |
| Reference Current Slew Rate | 4 mA/µs min; 8 mA/µs typ |
| MSB Logic High Input Voltage (VIH) | 2 VDC minimum |
| MSB Logic Low Input Voltage (VIL) | 0.8 VDC maximum |
| MSB Digital Input Current, High | 0 to 0.040 mA at VIH = 5V |
| MSB Digital Input Current, Low | −0.003 to −0.8 mA at VIL = 0.8V |
| Output Voltage Compliance | −0.55V to +0.4V with VEE = −5V, IREF = 1 mA |
| Output Voltage Compliance | −5.0V to +0.4V when VEE is below −10V |
| Power Supply Current, ICC | 2.3 mA typ; 22 mA max |
| Power Supply Current, IEE | −4.3 mA typ; −13 mA max |
| Power Dissipation | 33 mW typ; 170 mW max at VCC = +5V, VEE = −5V |
| Power Dissipation | 106 mW typ; 305 mW max at VCC = +5V, VEE = −15V |
| Power Dissipation | 90 mW at VCC = +15V, VEE = −5V |
| Power Dissipation | 160 mW at VCC = +15V, VEE = −15V |
| Absolute Maximum VCC | +18 VDC |
| Absolute Maximum VEE | −18 VDC |
| Digital Input Voltage | −10 VDC to +18 VDC |
| Applied Output Voltage | −11 VDC to +18 VDC |
| Reference Current Absolute Maximum | 5 mA |
| Power Dissipation Absolute Maximum | 1000 mW |
| Storage Temperature | −65°C to +150°C |
Applications
- Digital-to-analog conversion
- +10V output digital-to-analog converter
- Multiplying-mode operation
- Programmable gain amplifier
Package Content
- 1 x DAC0808LCN 8-Bit D/A Converter ±4.5V to ±18V 2mA DIP-16
