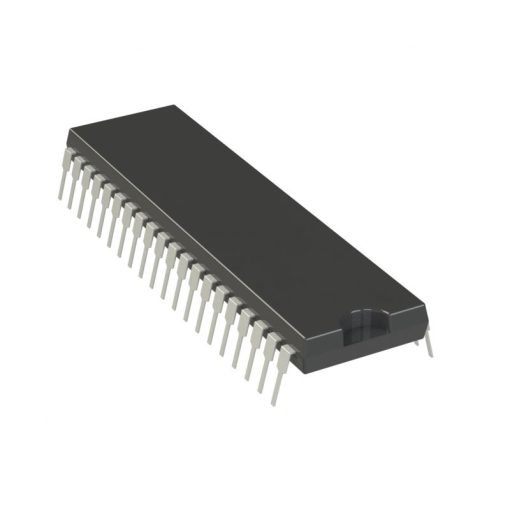

P8050AH Microcontroller 8-Bit MROM 8048 CPU 11MHz NMOS PDIP40 (Wide)
The P8050AH is an 8-bit microcontroller from Intel’s MCS-48 family, built on high-performance HMOS II NMOS technology. It integrates a self-sufficient 8048 CPU, 4KB of mask ROM for program storage, and 256 bytes of RAM for data handling. Designed for embedded control, it consolidates computing, timing, and I/O management into a single silicon chip.
Optimized for real-time processing, the device executes instructions in 1 or 2 cycles, achieving a rapid 1.36 µs cycle time at 11MHz. Its 96-instruction set emphasizes single-byte operations (90%), enabling compact code and efficient arithmetic/logic handling. The on-chip oscillator, timer/counter, and 27 I/O lines support autonomous operation while minimizing external components.
The P8050AH simplifies embedded designs with direct support for memory/I/O expansion via MCS-80/85 peripherals. It includes two interrupt levels and standby mode for power-sensitive applications. As a monolithic controller, it eliminates external memory needs for small-to-mid systems, balancing processing agility with hardware frugality.
Features:
- HMOS II technology for high-speed operation.
- On-chip 4KB mask ROM and 256B RAM.
- 27 programmable I/O lines.
- Integrated 8-bit timer/event counter.
- Two single-level interrupts.
- Single 5V power supply operation.
- Expandable memory/I/O via MCS-80/85 peripherals.
- Instruction cycle time down to 1.36 µs.
- Standby mode for RAM retention.
Specifications:
| Parameter | Value |
|---|---|
| Technology: | NMOS (HMOS II) |
| CPU Core: | 8048 8-bit |
| Clock Speed: | 11 MHz |
| Program Memory (ROM): | 4K × 8 (Mask ROM) |
| Data Memory (RAM): | 256 × 8 |
| I/O Pins: | 27 lines |
| Supply Voltage: | 5V ± 10% |
| Operating Temperature: | 0°C to +70°C |
| Package: | PDIP40 |
| Instruction Cycles: | 1.36 µs (max at 11MHz) |
| Standby Voltage (RAM): | 2.2V to 5.5V |
Applications:
- Industrial Control Systems.
- Automotive Electronics.
- Consumer Appliances.
- Peripheral Controllers.
- Instrumentation Devices.
Package Contents:
- 1x P8050AH Microcontroller 8-Bit MROM 8048 CPU 11MHz NMOS PDIP40 (Wide).
