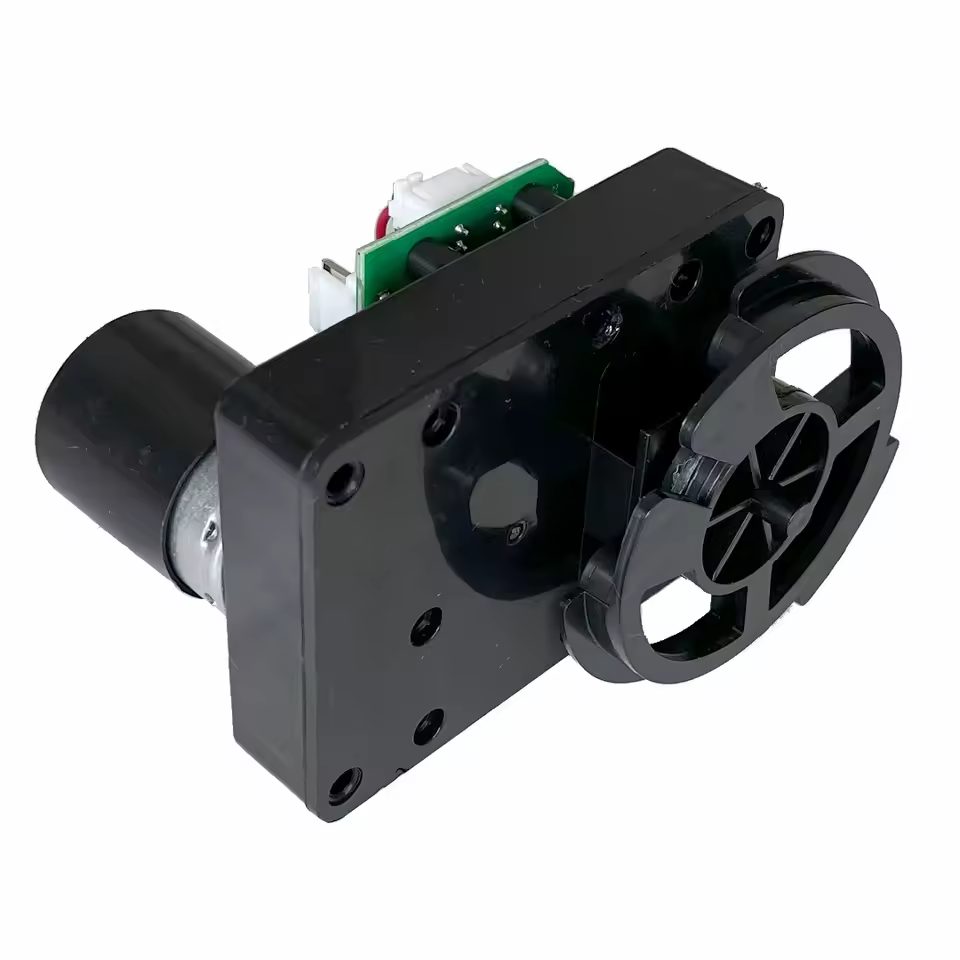

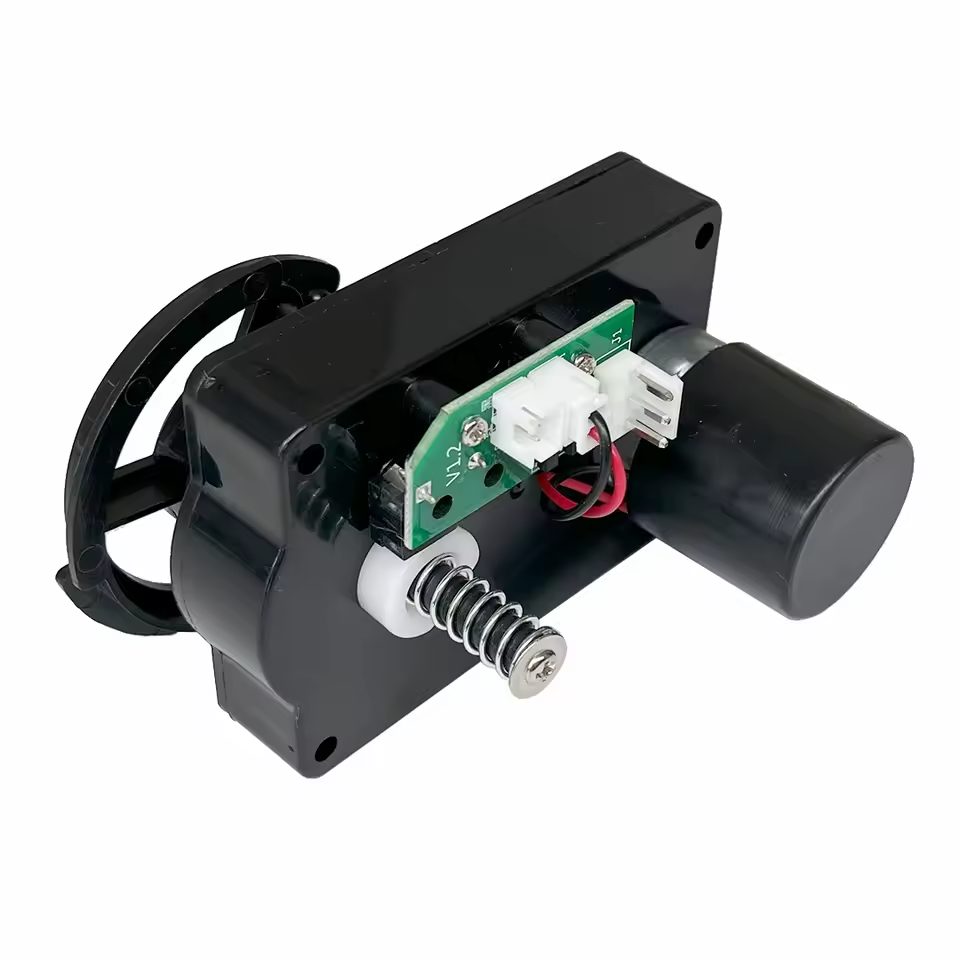

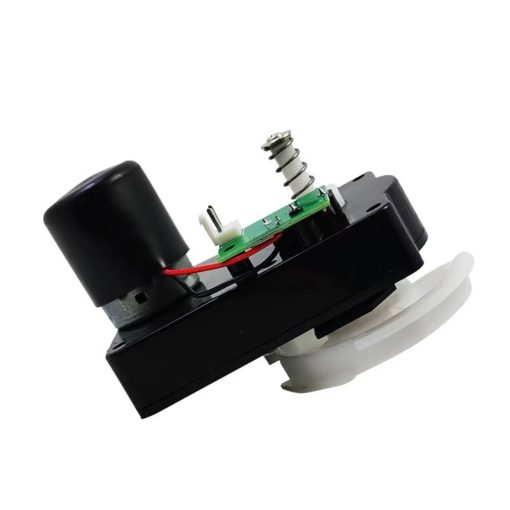

DC Geared Motor 12V 3Pin For Vending Machine Single Head Spiral

Product Description

Vending motors are designed for dispensing solid products in vending machines. It features high flexibility and durability. It is mainly used in beverage vending machines and snack self-service machines.

Specifications:

• Rated Voltage: 12VDC
• No-load Speed: 23.5±3RPM
• No-load Current: ≤0.18A
• Stall Current: ≤1.35A
• Max Output Torque: ≥48kg.cm
• Output Rotate Direction: CCW

Applications

• Vending machine
• Drink Machine
• Soda machine
• Self-service sales kiosk
• Snack vending
• Security doors
• Grills &gates
