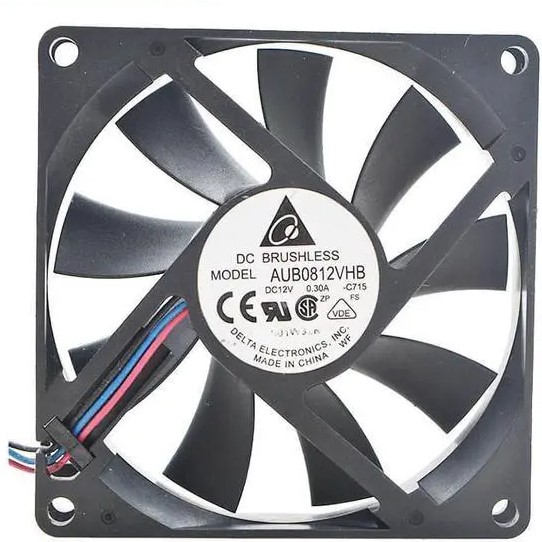

DELTA AUB0812VHB DC Fan 12V 0.3A 80x80x15mm (USED LIKE NEW)
The DELTA AUB0812VHB is a high-quality DC axial fan designed to provide efficient airflow in space-constrained electronic systems. Operating at 12V, this fan is widely used in applications such as computer cases, networking devices, and industrial equipment where reliable heat dissipation is essential. Its slim 80x80x15mm profile makes it ideal for installations with limited depth while still maintaining effective cooling performance.
This unit is offered in used-like-new condition, ensuring excellent functionality at a reduced cost. Manufactured by DELTA, a leading brand in thermal management solutions, the fan is built for durability, stability, and continuous operation. It delivers consistent airflow with low noise, making it suitable for both professional and DIY applications requiring dependable cooling in compact spaces.
Features:
- Slim and space-saving design.
- Efficient and stable airflow.
- Durable and high-quality construction.
- Low noise operation.
- Designed for continuous use.
- Easy installation with standard mounting.
- Reliable performance.
Specifications:
| Parameter | Value |
|---|---|
| Rated Voltage | 12 VDC |
| Start Voltage (at 25°C) | 5.0 VDC |
| Operation Voltage | 5.0 ~ 13.2 VDC |
| Input Current | 0.25 A (MAX. 0.30 A) (Safety current 0.30 A) |
| Input Power | 3.00 W (MAX. 3.60 W) |
| Speed | 3700 RPM (REF.) |
| Max. Air Flow (at zero static pressure) | 1.21 m³/min (MIN. 1.09) — 42.71 CFM (MIN. 38.44) |
| Max. Air Pressure (at zero airflow) | 4.90 mmH₂O (MIN. 3.97) — 0.193 inH₂O (MIN. 0.156) |
| Acoustical Noise (Avg.) | 40.5 dBA (MAX. 44.0) |
| Insulation Type | UL: Class A |
| Insulation Strength | 10 MΩ min. at 500 VDC (between frame and (+) terminal) |
| Dielectric Strength | 5 mA max. at 500 VAC 60 Hz for one minute (between frame and (+) terminal) |
| External Cover | Open type |
| Life Expectance (at label voltage) | 50,000 hours continuous operation at 40°C with 15~65% RH |
| Rotation | Clockwise viewed from name plate side |
| Over Current Shut Down | Current will shut down when locking rotor |

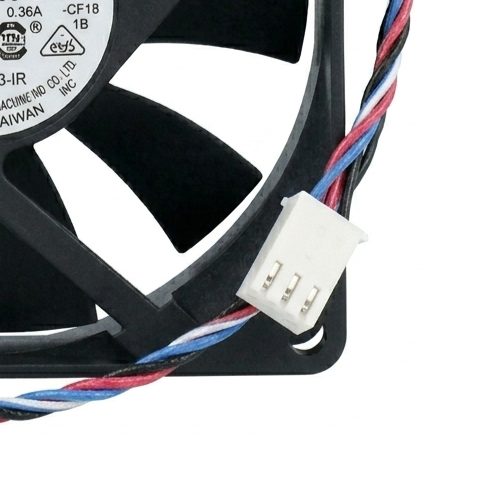

| Lead Wire | UL 1007 AWG #24 — Black: Negative (-), Red: Positive (+), Blue: FG Signal (F00) |
Applications:
- Computer case cooling.
- Power supply units.
- Networking equipment.
- Industrial control systems.
- Embedded systems.
- Compact electronic enclosures.
Package Includes:
- 1x DELTA AUB0812VHB DC Fan 12V 0.3A 80x80x15mm (USED LIKE NEW).
