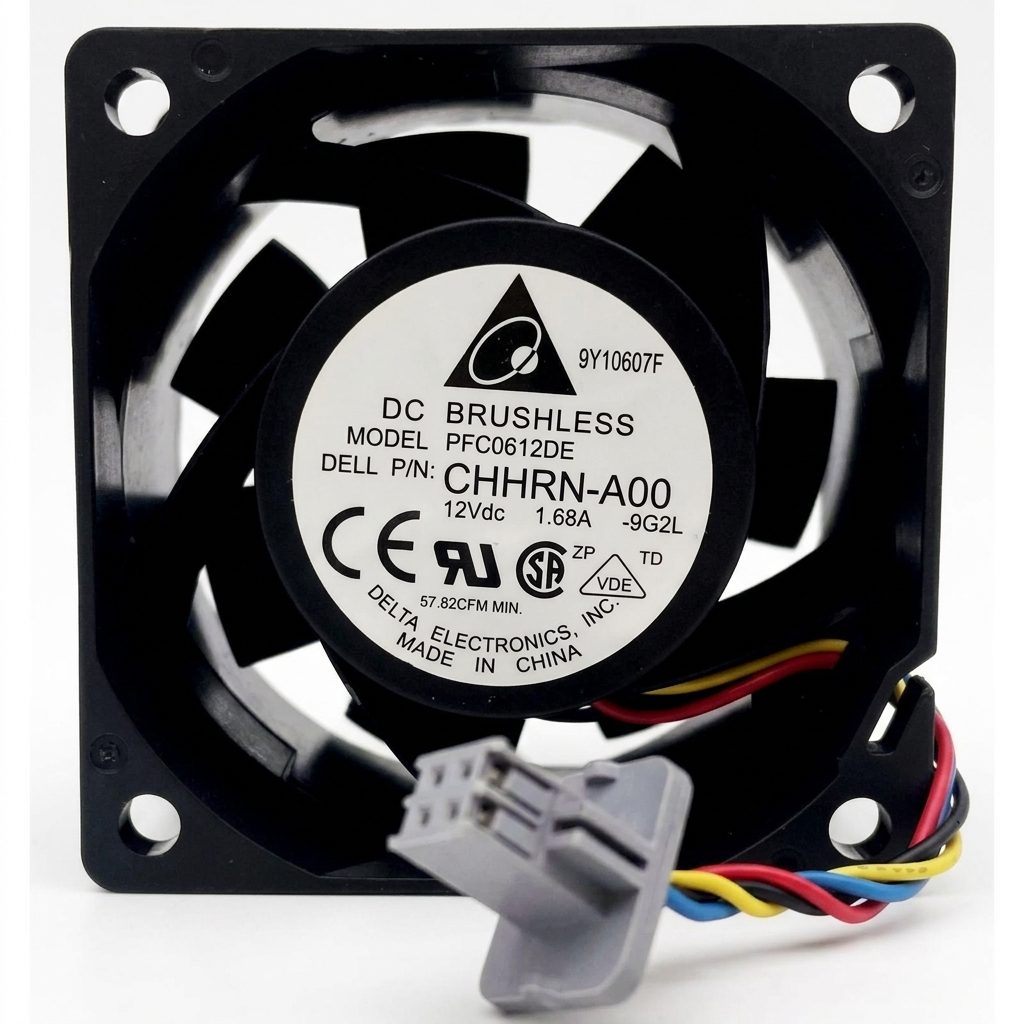

Delta PFC0612DE DC Fan 12V 1.68A 60x60x38mm (USED LIKE NEW)
The Delta PFC0612DE DC Fan 12V 1.68A 60x60x38mm (USED LIKE NEW) is a high-performance DC brushless cooling fan engineered for applications requiring efficient airflow and reliable thermal management. This fan is commonly used in servers, industrial equipment, networking devices, telecommunications systems, embedded computers, and other electronic equipment where continuous cooling is essential.
Features:
- High-performance DC brushless cooling fan.
- Operates from a 12VDC power supply.
- Rated current of 1.68A.
- Standard 60×60×38mm fan size.
- 4-pin PWM connector for speed control.
- Tachometer output for speed monitoring.
- Ball bearing construction for extended service life.
Specifications:
| Parameter | Value |
|---|---|
| Model | PFC0612DE |
| Condition | Used Like New |
| Fan Type | DC Brushless Axial Fan |
| Rated Voltage | 12VDC |
| Rated Current | 1.68A |
| Power | 20.16W |

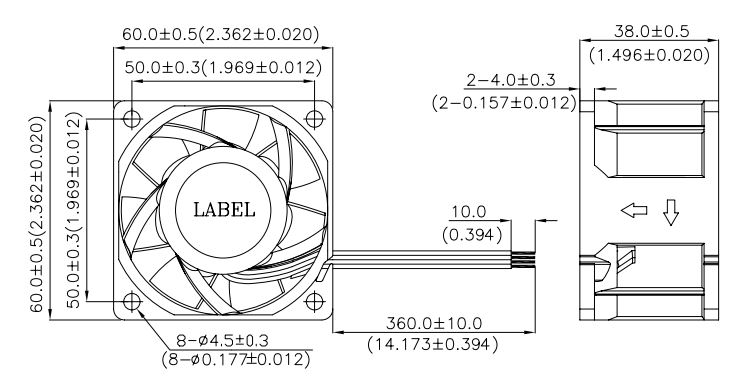

| Dimensions | 60×60×38mm |
| Bearing Type | Ball Bearing |
| Connector | 4-Pin PWM |
| Control Features | PWM Speed Control, Tachometer Output |
| Airflow | 57.82CFM (Min.) |
| Maximum Speed | Up to 12000RPM |
| Frame Material | Plastic |
| Blade Material | Plastic |
| Operating Temperature | -10°C to +60°C |
Applications:
- Server cooling systems.
- Industrial control equipment.
- Network switches and routers.
- Telecommunications equipment.
- Embedded computer systems.
- Power supplies.
- Electronic enclosures.
- Communication devices.
- High-performance computing systems.
- Replacement cooling fan for compatible Delta equipment.
Package Include:
1x Delta PFC0612DE DC Fan 12V 1.68A 60x60x38mm (USED LIKE NEW)
