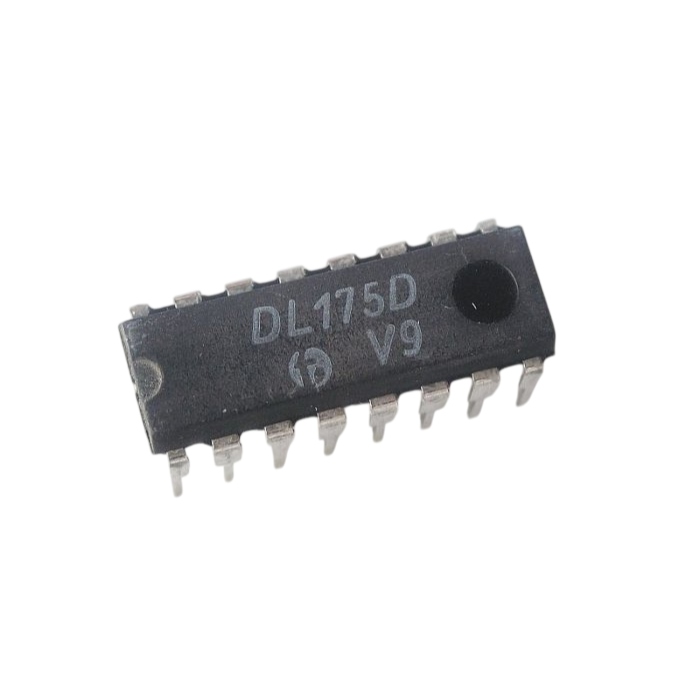

DL175D Quad D-Type Flip-Flop with Reset Positive-Edge Trigger DIP-16
DL175D (74175 /SN74LS175 compatible) Quad D Flip-Flop with Reset. DIP14 package designed for TTL digital storage, sequential logic & embedded applications.
50.00 EGP
Buy NowDL175D Quad D-Type Flip-Flop with Reset Positive-Edge Trigger DIP-16
The DL175D is a TTL-based Quad D-Type Flip-Flop integrated circuit designed for sequential logic circuits, digital data storage, timing systems, counters, registers, and embedded electronic applications. The IC contains four independent D-type flip-flops with common clock and master reset inputs inside a standard DIP14 through-hole package, making it suitable for breadboard prototyping, industrial electronics, educational projects, and PCB development.
Features:
- Four independent D-type flip-flops.
- Positive-edge-triggered clock operation.
- Common asynchronous reset input.
- Complementary Q and Q̅ outputs.
- Compatible with 74175 and SN74LS175 IC families.
- TTL Low-Power Schottky technology.
Specifications:
| Parameter | Value |
|---|---|
| Model | DL175D. |
| Equivalent IC | 74175 / SN74LS175 / 74LS175. |
| Technology | TTL Low-Power Schottky (LS). |
| Operating Voltage (VCC) | 5VDC (4.75V to 5.25V). |
| High-Level Input Voltage (VIH) | Min 2.0V. |
| Low-Level Input Voltage (VIL) | Max 0.8V. |
| High-Level Output Current (IOH) | -400µA. |
| Low-Level Output Current (IOL) | 8mA. |
| High-Level Output Voltage (VOH) | Min 2.7V. |
| Low-Level Output Voltage (VOL) | Max 0.5V. |
| Clock to Output Delay (tPLH / tPHL) | 18ns to 30ns (Typ/Max). |
| Maximum Clock Frequency | 40 MHz (Typ). |
| Operating Temperature | 0°C to +70°C. |
| Package Type | DIP-16. |
Pin Configuration:
| Pin Number | Pin Name | Function/Description |
|---|---|---|
| 1 | CLR (MR) | Master Reset / Clear Input (Active LOW). |
| 2 | 1Q | True Output for Flip-Flop 1. |
| 3 | 1Q̅ | Complementary Output for Flip-Flop 1. |
| 4 | 1D | Data Input for Flip-Flop 1. |
| 5 | 2D | Data Input for Flip-Flop 2. |
| 6 | 2Q | True Output for Flip-Flop 2. |
| 7 | 2Q̅ | Complementary Output for Flip-Flop 2. |
| 8 | GND | Ground (0V). |
| 9 | 3Q̅ | Complementary Output for Flip-Flop 3. |
| 10 | 3Q | True Output for Flip-Flop 3. |
| 11 | 3D | Data Input for Flip-Flop 3. |
| 12 | 4D | Data Input for Flip-Flop 4. |
| 13 | 4Q | True Output for Flip-Flop 4. |
| 14 | 4Q̅ | Complementary Output for Flip-Flop 4. |
| 15 | CLK (CP) | Common Clock Input (Positive-Edge Triggered). |
| 16 | VCC | Power Supply (+5V). |
Applications
- Digital data storage systems.
- Shift registers and counters.
- Sequential logic circuits.
- Embedded electronic systems.
- Digital timing applications.
- Industrial automation electronics.
- Educational electronics projects.
- Breadboard prototyping.
- Logic state control systems.
- TTL digital processing circuits.
Package Include:
1x DL175D Quad D-Type Flip-Flop with Reset Positive-Edge Trigger DIP-16.
