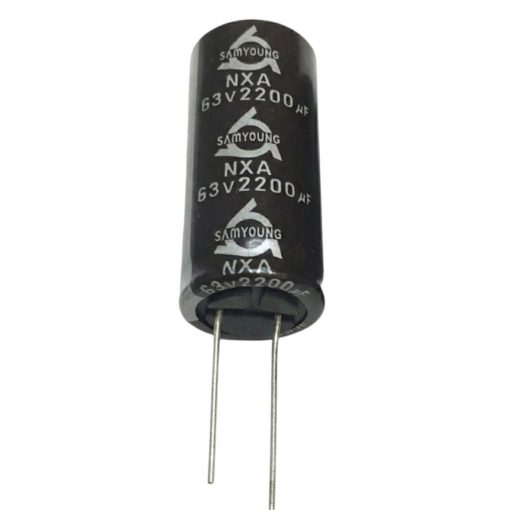

SAMYOUNG Aluminum Electrolytic Capacitor 2200uF 63V 18x40mm Made in Korea
The NXA Series consists of high-performance, radial-lead miniature aluminum electrolytic capacitors designed for high-reliability environments. These capacitors are engineered for Low Impedance and Long Life, making them ideal for high-stress power applications.
✅Features
- High Temperature Resistance
- Extended Load Life
- Environmental Compliance
📜📚Specifications
| Parameter | Specification Detail |
|---|---|
| Series | NXA |
| Rated Voltage | 63 VDC |
| Nominal Capacitance | 2200 µF |
| Dimensions (D × L) | 18 × 40 mm |
| Operating Temperature | -40 to +105°C |
| Capacitance Tolerance | ±20% |
| Lead Diameter (φd) | 0.8 mm |
| Lead Spacing (F) | 7.5 mm |
| Compliance | RoHS Compliant |
💻Applications
- SMPS
- IP-Boards and Adapters
- Noise Filters
- Chargers
🎁Package Content
- 1 x SAMYOUNG Capacitor 2200uF 63V 18x40mm Made in Korea
