ESP32 Module With 2.8″ TFT Touch Screen Display WiFi + Bluetooth
ESP32 moESP32 Moduledule featuring a 2.8-inch 320×240 TFT resistive touch display with built-in WiFi, Bluetooth, MicroSD slot, RGB LED, and USB programming interface for IoT and HMI applications.
1,200.00 EGP
Buy NowESP32 Module With 2.8″ TFT Touch Screen Display WiFi + Bluetooth
The ESP32 Module With 2.8″ TFT Touch Screen Display WiFi + Bluetooth is an all-in-one embedded development platform designed for IoT, smart control systems, industrial Human Machine Interface (HMI), and graphical display applications. Based on the powerful ESP32-WROOM dual-core processor, the module combines wireless connectivity, a vibrant 2.8-inch TFT LCD, resistive touch functionality, and expandable I/O into a compact development board.

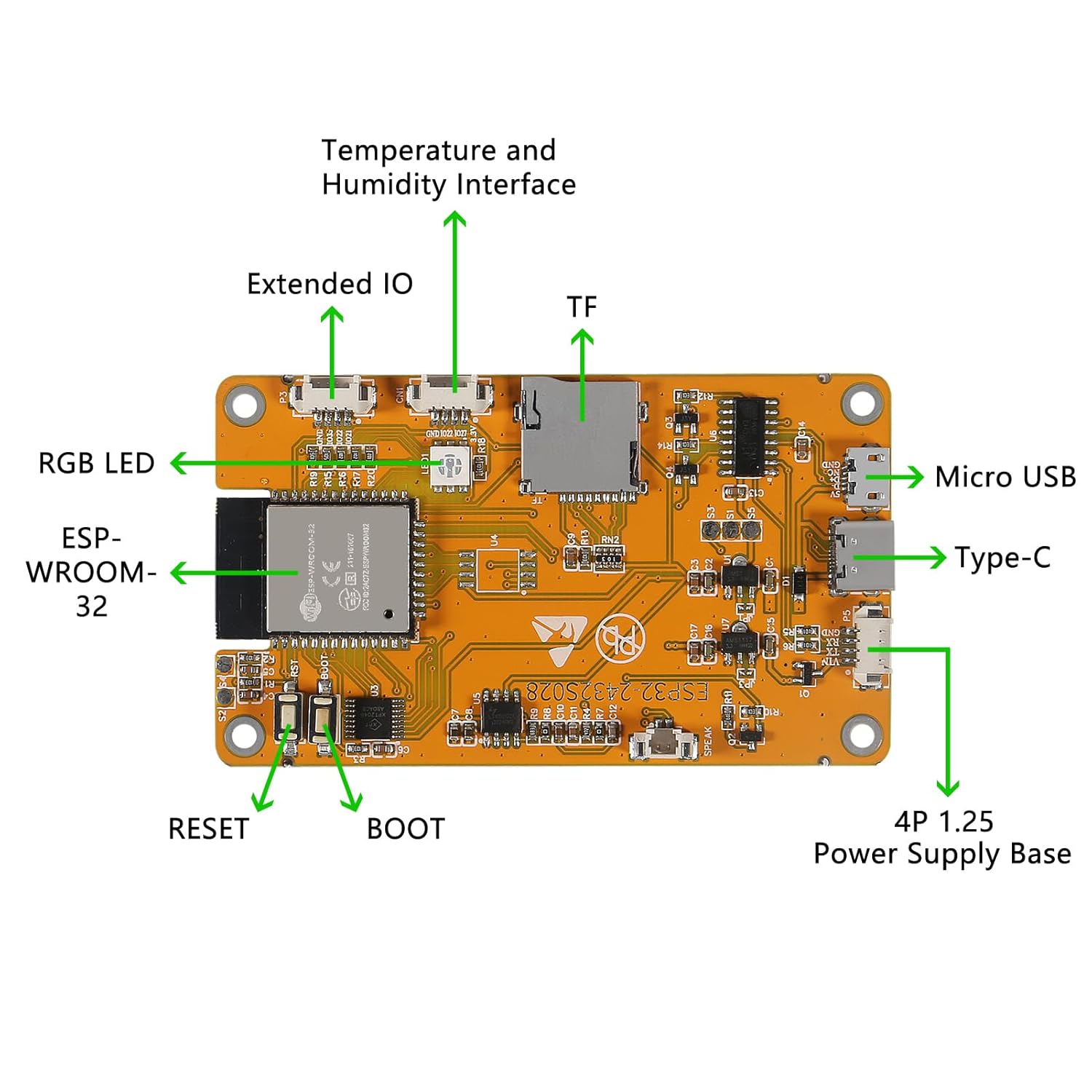

Features:
- Dual-core MCU, integrated WI-FI and Bluetooth functions
- 2.8-inch color TFT display screen with ILI9341 driver chip
- Display resolution: 240x320px with resistive touchscreen
- Backlight control circuit
- TF card interface for external storage
- Serial interface
- Temperature and humidity sensor interface (DHT11 interface) and reserved IO port interface
- It can be programmed with: Arduino IDE, MicroPython, ESP-IDF
Specifications:
| Specification | Value |
|---|---|
| Model | ESP32-2432S028 |
| Microcontroller | ESP32 |
| Frequency | Up to 240 MHz (computing power is up to 600 DMIPS) |
| SRAM | 520 KB |
| ROM | 448 KB |
| Flash | 4 MB |
| Operating Voltage | 5 V |
| Power Consumption | approx. 150 mA ~ 300mA |
| Display | 2.8-inch color TFT screen (240×320) |
| Touch | Resistive Touch |
| Driver Chip | ILI9341 |

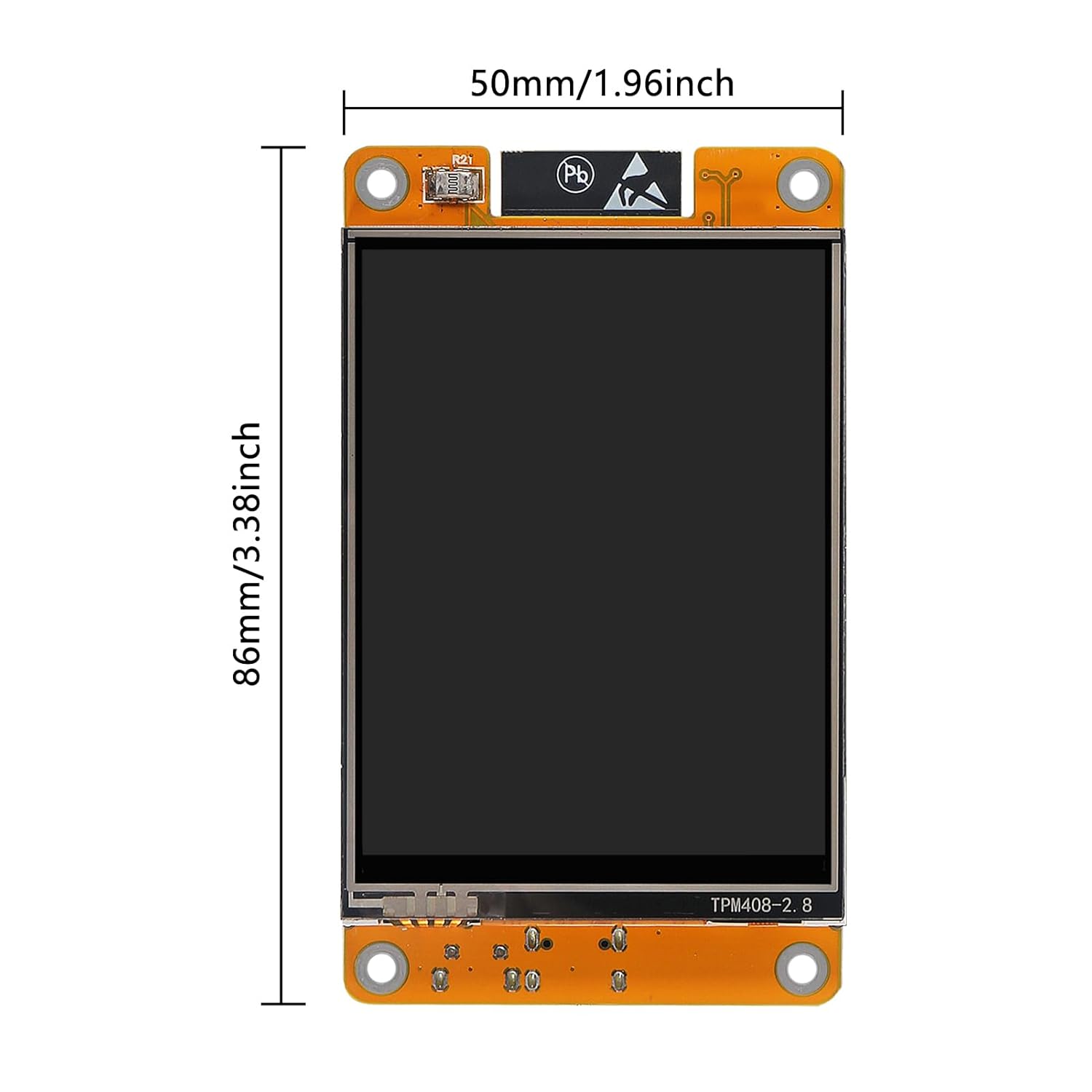

| Dimensions | 50 x 86 mm |
Configuration:
Applications:
- Smart home control panels.
- Industrial HMI systems.
- IoT monitoring devices.
- Weather stations.
- Home automation controllers.
- Touchscreen control interfaces.
- Data logging systems.
- Smart instrumentation.
- Portable measurement equipment.
- Educational ESP32 development projects.
Package Include:
- 1x ESP32 Module With 2.8″ TFT Touch Screen Display WiFi + Bluetooth
- 1x Touch pen
- 1x Connector cable
- 1x USB Micro cable
- 1x Box
