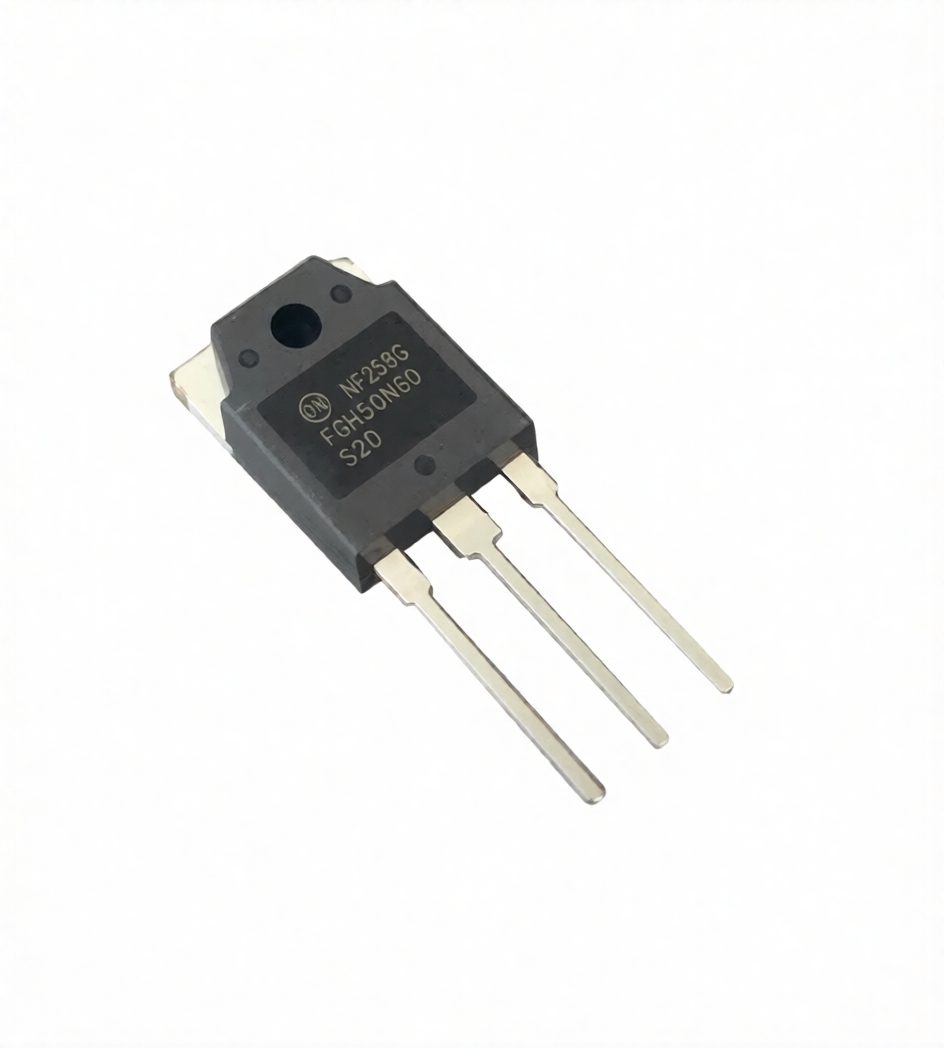

FGH50N60 N Channel MOSFET Transistor 600V 40A TO-220
The FGH50N60 N-channel power transistor is commonly used in inverters, motor drives, switching power supplies, welding equipment, and high-power switching applications.
65.00 EGP
Buy NowFGH50N60 N Channel MOSFET Transistor TO-220
The FGH50N60 is a high-performance power transistor designed for applications that require efficient switching, high current handling, and reliable operation under demanding conditions. Its robust construction allows it to operate in high-power circuits where fast switching and low power loss are essential.
This transistor is widely used in industrial equipment, power conversion systems, uninterruptible power supplies, induction heating systems, and motor control applications. The TO-220 package provides a compact design while allowing efficient heat transfer when used with an appropriate heatsink.
Features:
- High-speed switching performance.
- High current handling capability.
- Suitable for high-power applications.
- Excellent thermal characteristics.
- Optimized for power conversion circuits.
- Low conduction losses.
- Reliable switching operation.
- Through-hole package for easy installation.
- Suitable for industrial and commercial applications.
- Compatible with inverter and switching circuits.
Specifications:
| Specification | Value |
|---|---|
| Device Type | Field-Stop IGBT |
| Transistor Configuration | N-Channel |
| Collector-Emitter Voltage (VCES) | 600V |
| Collector Current (IC) | 50A |
| Pulsed Collector Current | 120A |
| Gate-Emitter Voltage (VGES) | ±20V |
| Transient Gate-Emitter Voltage | ±30V |
| Power Dissipation | 290W |
| Gate Threshold Voltage | 4.0V to 6.5V |
| Collector-Emitter Saturation Voltage | 1.8V |
| Operating Junction Temperature | -55°C to +150°C |

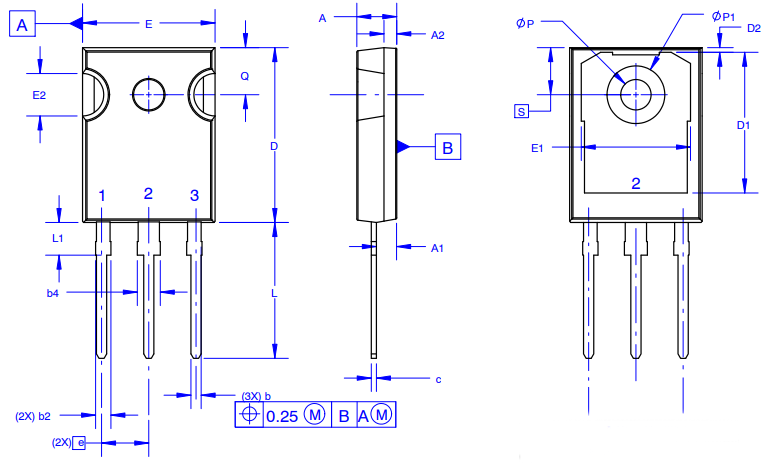

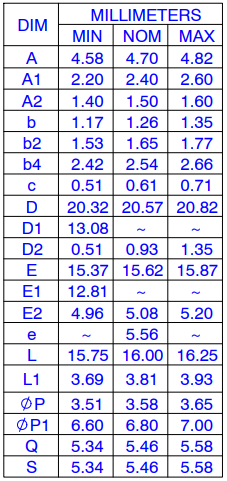

| Package Type | TO-220 |
| Mounting Type | Through-Hole |

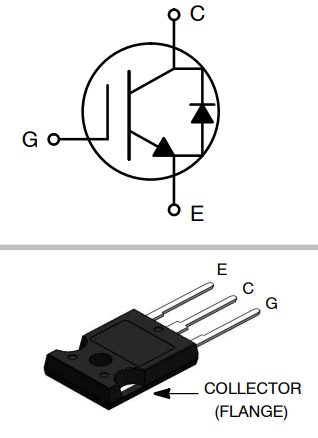

Pinout:
| Pin | Description |
|---|---|
| 1 | Gate |
| 2 | Collector |
| 3 | Emitter |
Applications:
- Solar inverters.
- Switching power supplies.
- UPS systems.
- Motor drives.
- Welding equipment.
- Power factor correction circuits.
- Industrial automation equipment.
- Induction heating systems.
- Energy storage systems.
- High-power DC-AC conversion.
Package Includes:
- 1x FGH50N60 N Channel MOSFET Transistor TO-220.
