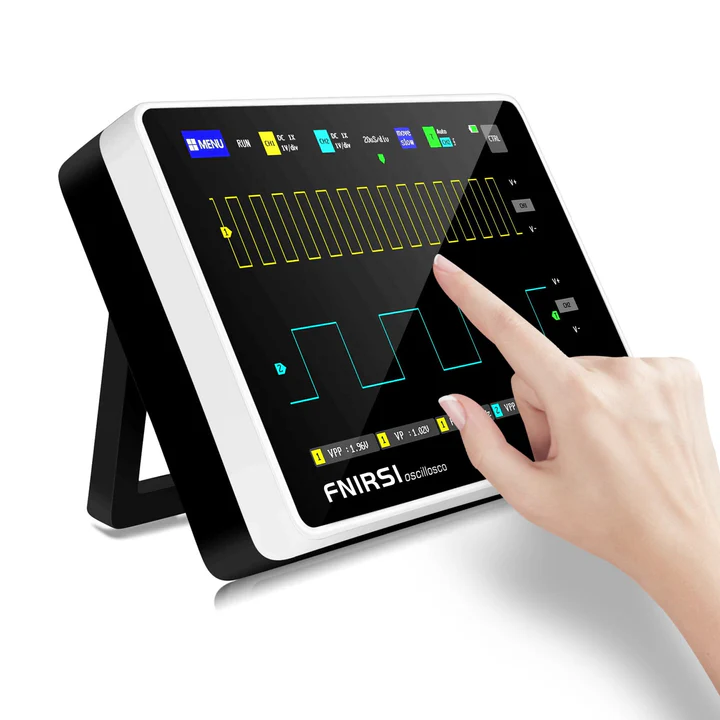

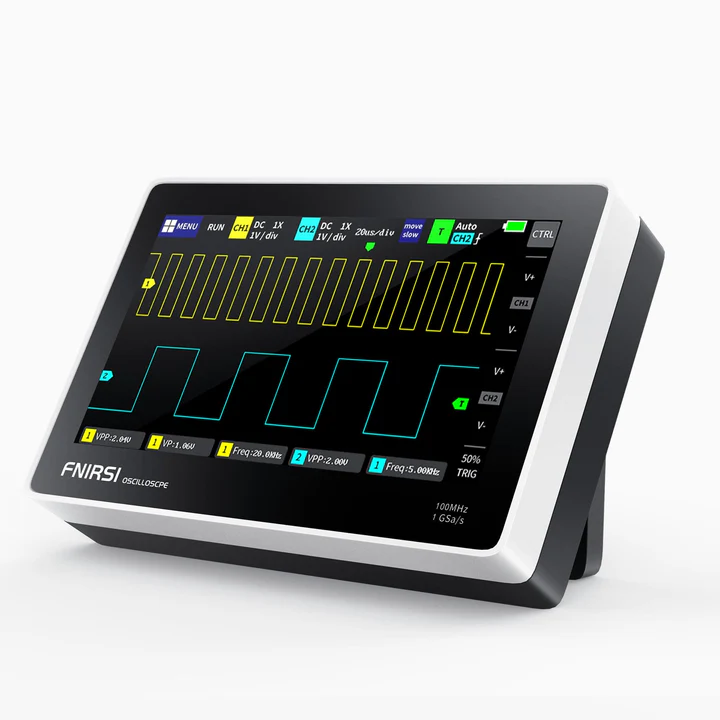

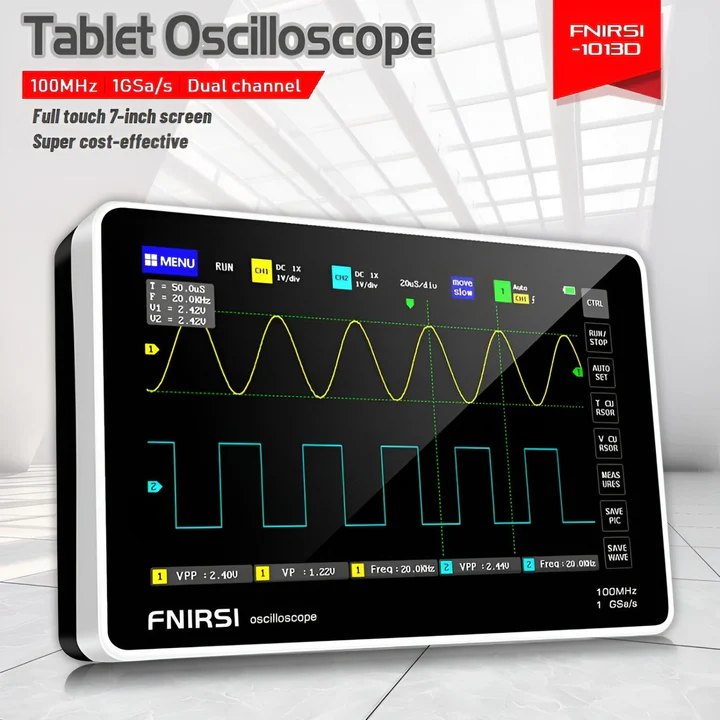

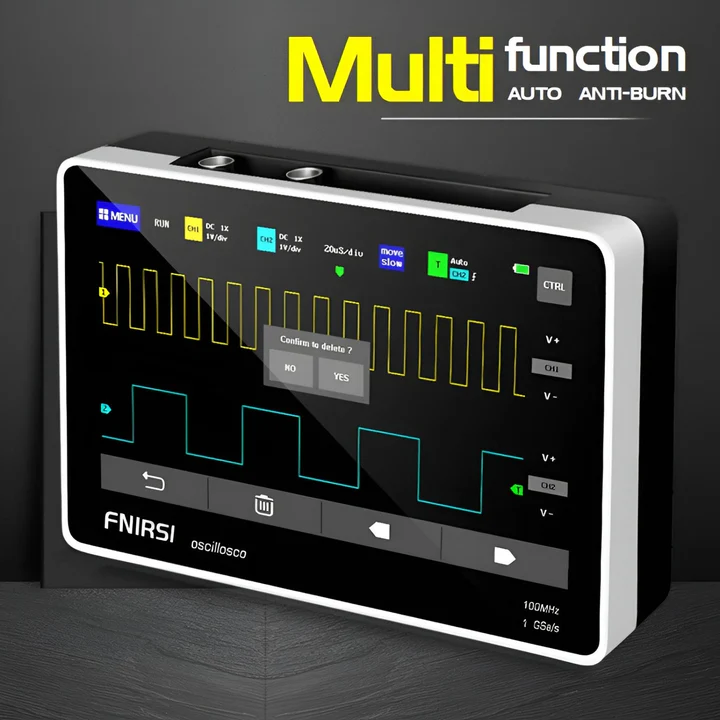

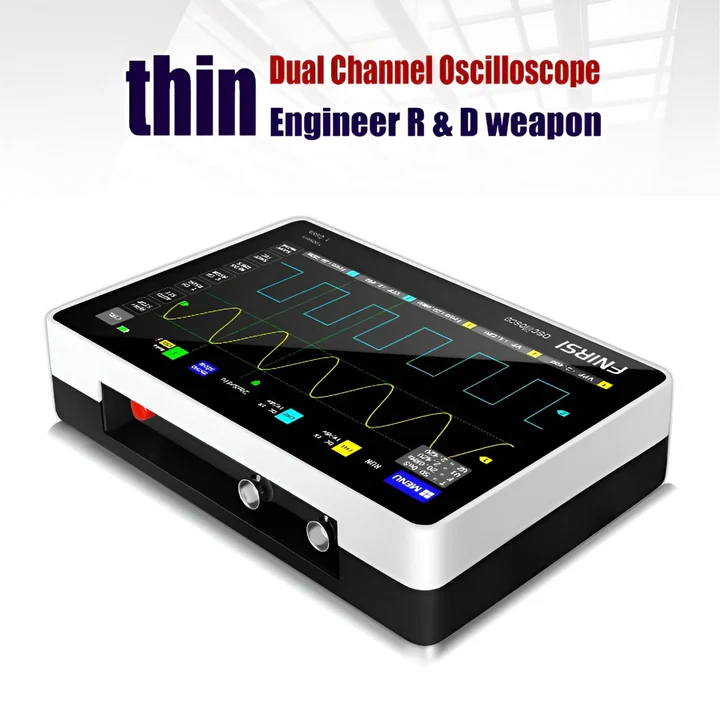

FNIRSI® 1013D Tablet Dual Channel 100MHz 1GS/S Touchable Panel Oscilloscope
The FNIRSI-1013D is a dual-channel oscilloscope designed for R&D and maintenance, offering a 1GSa/s real-time sampling rate and 100MHz bandwidth per channel. It supports various trigger modes (single/normal/auto) and can handle up to 400V with built-in high-voltage protection. The 7-inch 800×480 touchscreen provides easy control with one-key AUTO function for quick waveform display.
It includes convenient features like cursor measurements, peak detection, and built-in 1GB storage for up to 1000 screenshots and waveforms. The oscilloscope also supports USB connectivity for data sharing, and its 6000mAh battery lasts up to 4 hours on a single charge, usable even while charging.

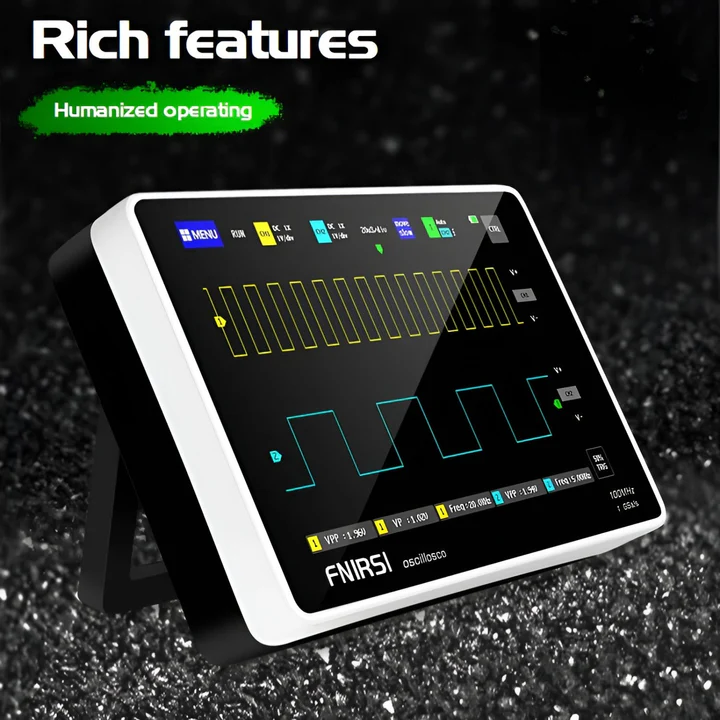

Features:
- 2 Channels.
- Portable Handheld Tablet Oscilloscope.
- 1GSa/s Sampling Rate (1X=5MHz,10X=100MHz) .
- 100MHZ * 2analog bandwidth.
- 7″ TFT LCD Touch Screen.
- Complete trigger function (single/normal/automatic).
- One-button AUTO and adaptive trigger (25%, 50%, 75%).
- Versatile usage for both periodic analog and aperiodic digital signals.
- high-voltage protection module.
- 1X can measure 0~40V, 10X can measure 0~400V,100X can measure 0~4000V.
- Powerful Waveform Picture Manager.
- One-key Screenshot and Saving.
- Cursor measurement function.
- Powerful Waveform Picture Manager.

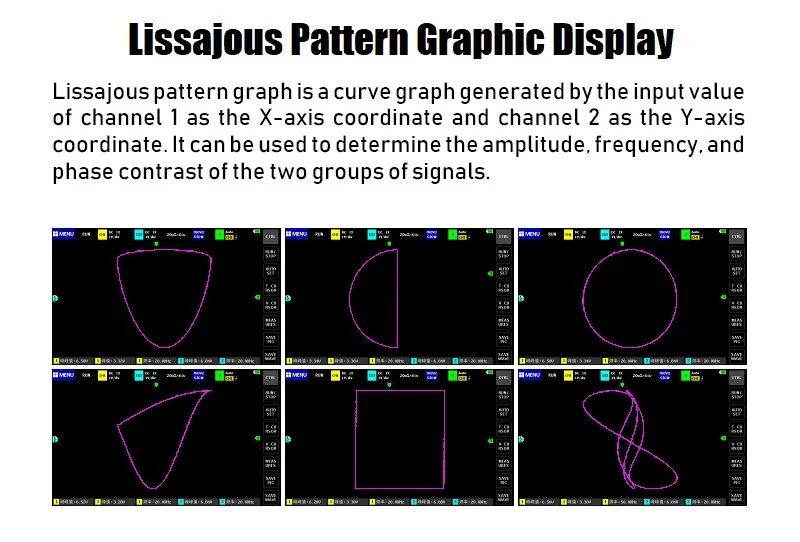

- Lissajous Graphic Display & FFT Viewing.

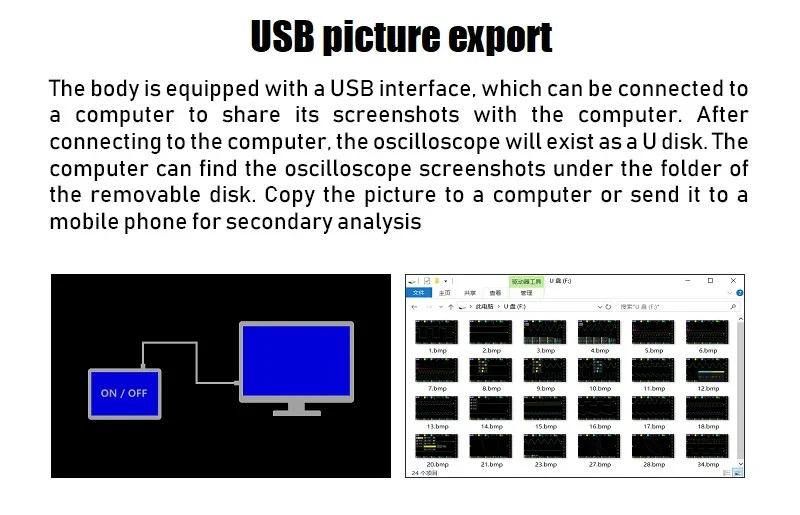

- USB Picture Export.
- Ideal for both periodic analog and aperiodic digital signals.
- 6000mah battery, continuous usage for 4 hours.
- Targeting the maintenance industry and the research and development industry.

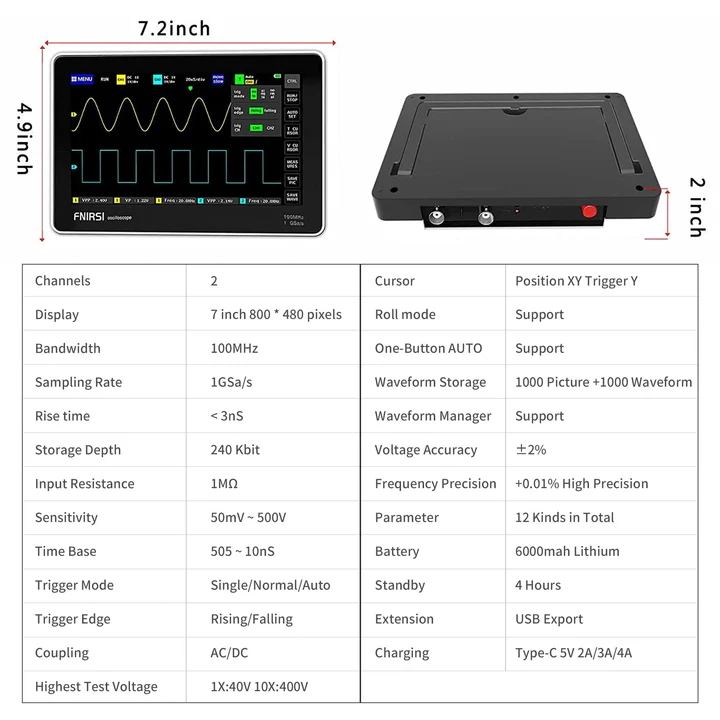

Specification:
| Specification | Value |
|---|---|
| Brand | FNIRSI |
| Model | 1013D |
| Channels | 2 |
| Display | 7 inch 800×480 Pixels |
| Bandwidth | 100 MHz |
| Sampling Rate | 1 GSa/s |
| Rise Time | <3 ns |
| Storage Depth | 240 Kbit |
| Timebase | 50 s ~ 10 ns |
| Vertical Sensitivity | 50 mV – 500 V |
| Input Resistance | 1 MΩ |
| Trigger Mode | Single / Normal / Auto |
| Trigger Edge | Rising / Falling |
| Coupling | AC / DC |
| Highest Test Voltage | 1X: 40 V, 10X: 400 V |
| Cursor | Position XY / Trigger Y |
| Roll Mode | Support |
| One-Button AUTO | Support |
| Waveform Manager | Support (1000 Pic + 1000 Waveform) |
| Voltage Accuracy | ±2% |
| Frequency Precision | ±0.01% High Precision |
| Parameter | 12 Kinds in Total |
| Power Supply | 6000 mAh Lithium Battery |
| Standby | 4 Hours |
| Extension | USB Export |
| Charging | Type‑C 5 V 2 A / 3 A / 4 A |

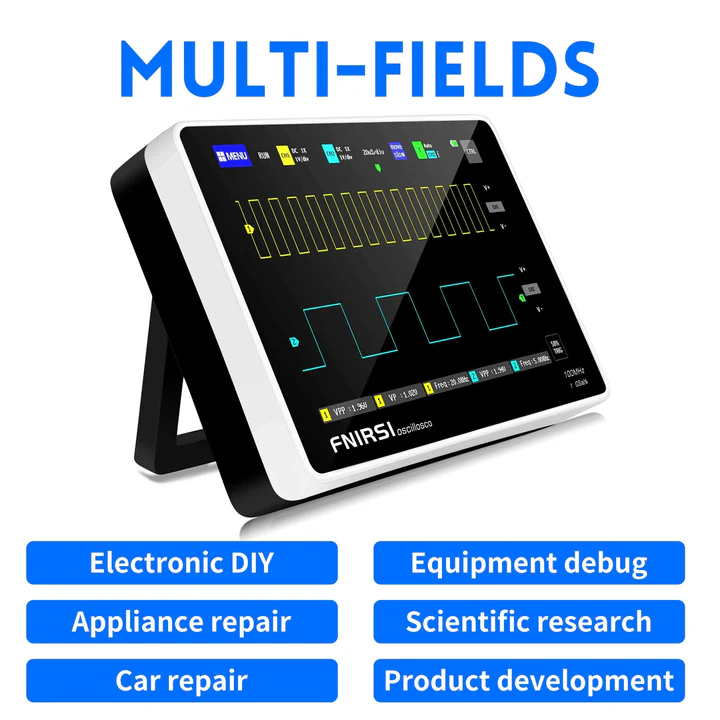

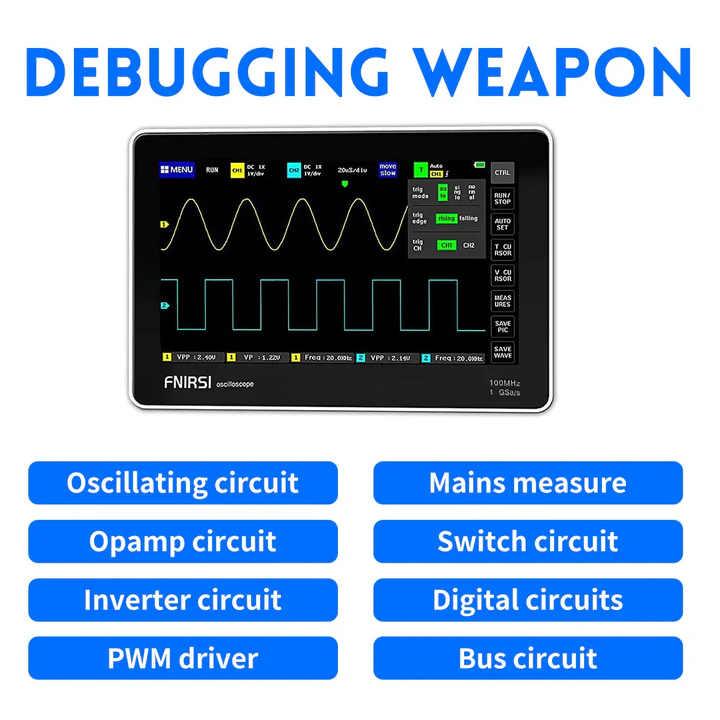

Applications:
- Electronic circuit debugging.
- Embedded systems development.
- Sensor signal analysis.
- Audio waveform testing.
- Power supply diagnostics.
- Educational laboratory experiments.
- Communication signal analysis.
- Industrial maintenance.
- DIY electronics projects.
- Automotive electronics testing.
- Research and development work.
- Portable field measurements.

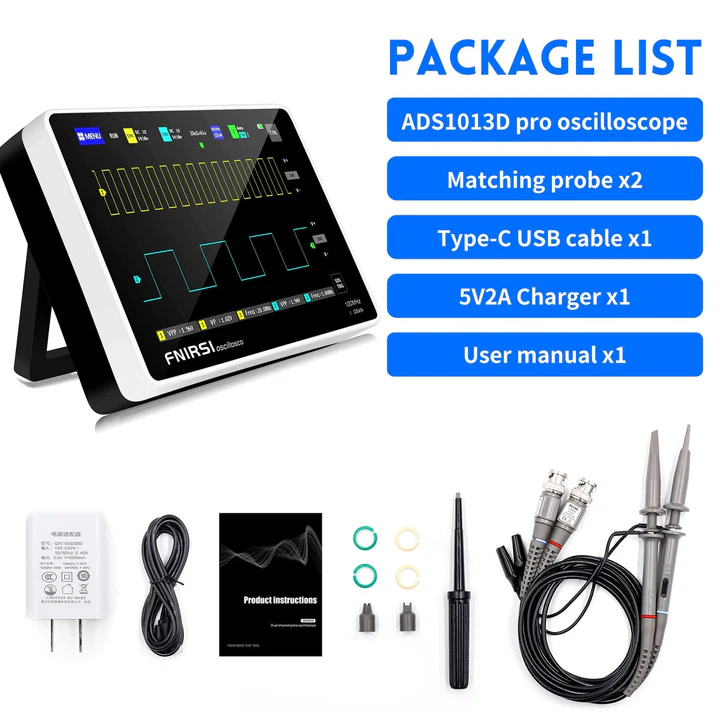

Package Included:
- FNIRSI 1013D Oscilloscope Host.
- Matching 100MHz Probes.
- Micro USB Type-C data line.
- Charging Adapter.
- User Manual.
- P6100 Oscilloscope Probe 100X High Voltage.
