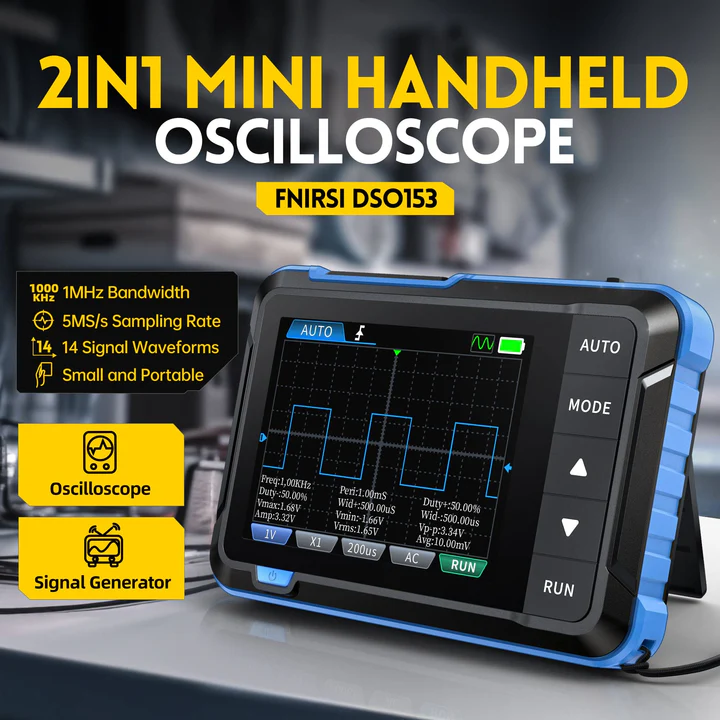

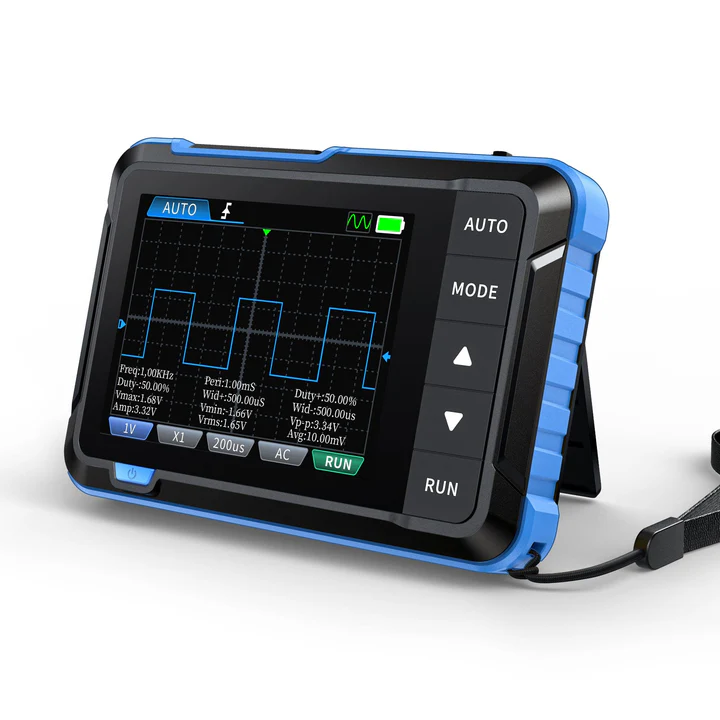

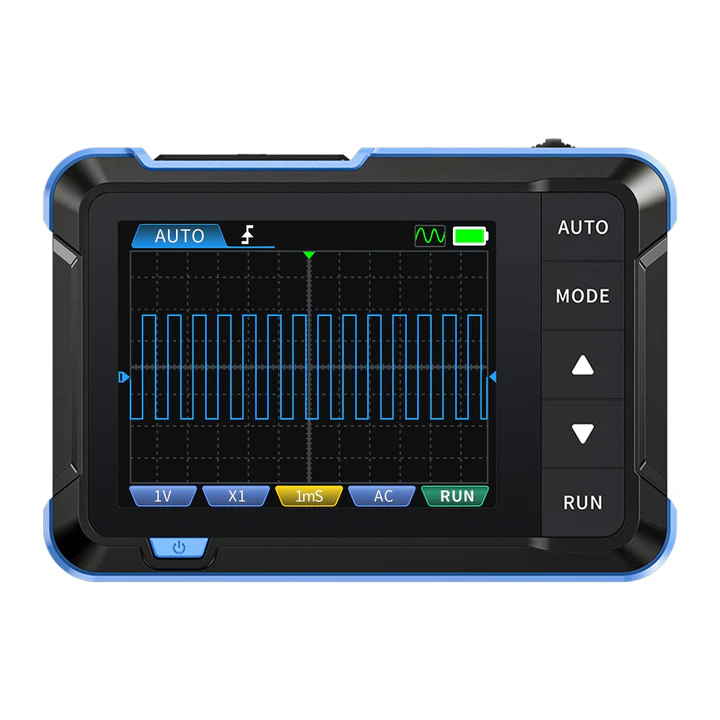

FNIRSI® DSO-153 2-IN-1 Mini 1MHz 5MS/S Digital Oscilloscope Waveform Generator
Portable FNIRSI® DSO-153 2-IN-1 digital oscilloscope and waveform generator commonly used for electronic circuit testing, signal analysis, and educational experiments.
2,950.00 EGP
Buy NowFNIRSI® DSO-153 2-IN-1 Mini 1MHz 5MS/S Digital Oscilloscope Waveform Generator
The DSO153 combines performance and portability, making it an excellent tool for routine maintenance and educational use. It offers a well-rounded feature set suitable for general signal testing. This oscilloscope has a real-time sampling rate of 5MS/s, 1MHz bandwidth, and complete triggering function (single, normal, auto). It can be used freely for both periodic analog signals and non-periodic digital signals, and can measure up to ±400V voltage with an efficient one-click AUTO, which can display the measured waveform without complicated adjustments. Additionally, it features a function signal generator capable of outputting 14 types of signals (10KHz). Equipped with a 2.8-inch 320*240 resolution HD LCD screen and a built-in 1000mAh high-quality lithium battery, it can be used for about 4 hours when fully charged.
Features:

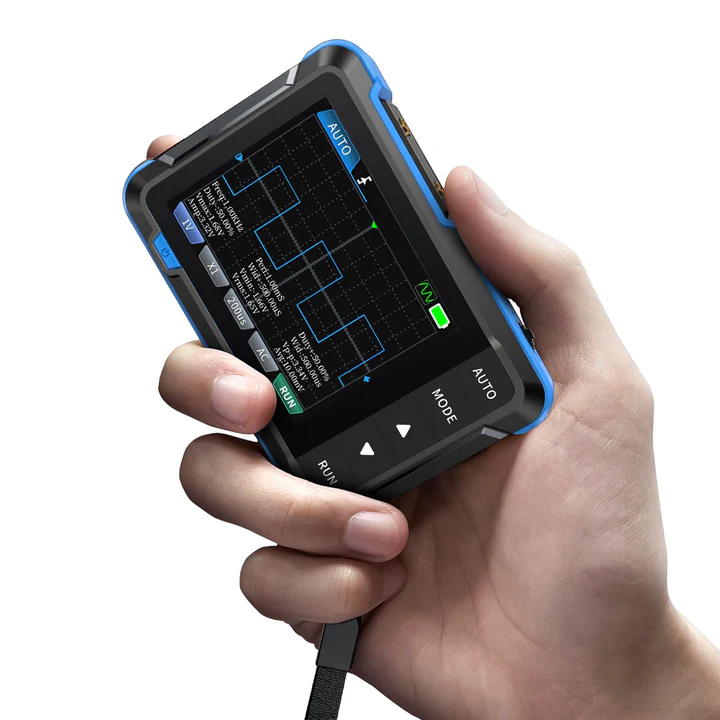

- Portable 2.8″ TFT Handheld Oscilloscope for beginners, hobbyist.
- DSO oscilloscope: 5MS/s, 1MHz bandwidth, ±400V voltage range.
- Signal Generator: 10KHz.
- High-definition 320*240 LCD, Type-C interface.
- Finished assembly, lightweight, perfect for maintenance.
- Versatile trigger functions: single, normal, automatic.
- Signal Type Support: Periodic analog signals and non-periodic digital signals.
- 8 different languages: Chinese, English, Russian, Japanese, Spanish, Portuguese, German, Korean.

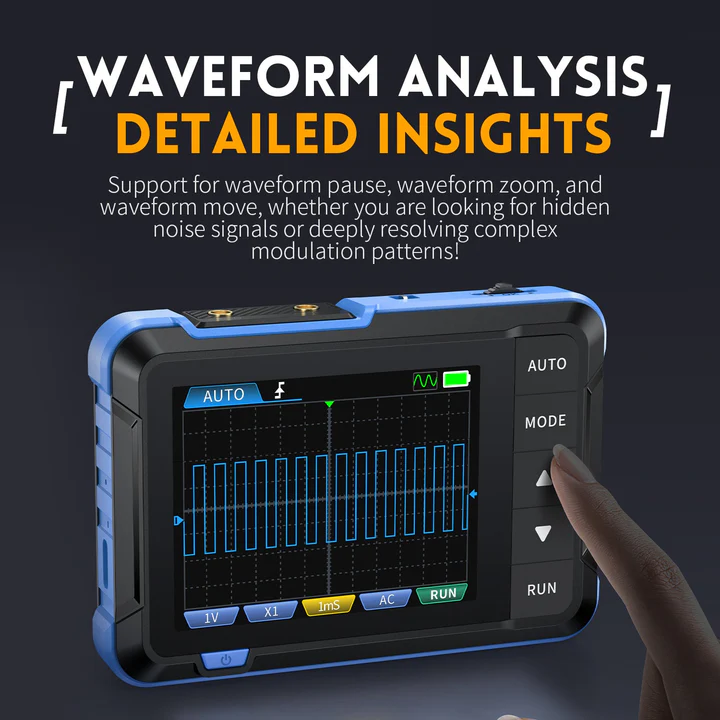

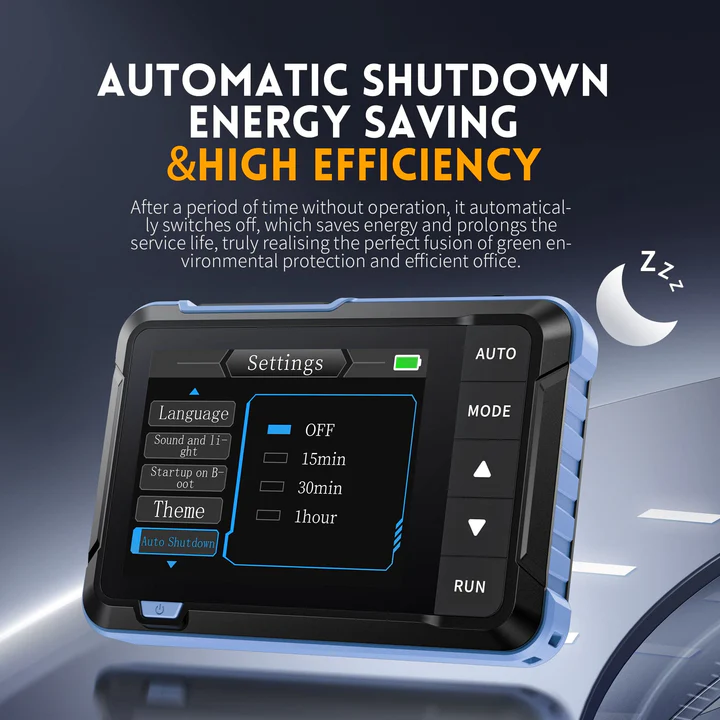

- One-Click AUTO Mode: Effortlessly display waveforms with minimal input.
- Battery Life: Built-in 1000mAh lithium battery with 4 hours of use per charge.
- Recommended Use: Suitable for routine equipment maintenance and educational signal demonstrations.
Specifications:
| Parameter | Specification |
|---|---|
| Brand | FNIRSI |
| Model | DSO-153 |
| Display | 2.8 Inches / PPI: 320×240 |
| USB Charging | 5V/1A |
| Lithium Battery Capacity | 1000mAh |
| Size | 99 × 68.3 × 19.5 mm |
| Weight | 100g |
| Channel | (Oscilloscope) – Sampling Rate: 5MS/s |
| Bandwidth | – |
| Vertical Sensitivity | 10mV/Div – 10V/Div (1‑2‑5 progression) |
| Time Base Range | – |
| Voltage Range | X1: ±40V (Vpp 80V) X10: ±400V (Vpp 800V) |
| Trigger Mode | Auto / Normal / Single |
| Trigger Edge | Rising edge / Falling edge |
| Coupling | AC / DC |
| Frequency (Signal Gen.) | 0 – 10 kHz |
| Duty Cycle (Signal Gen.) | 0 – 100% (for rectangular and sawtooth waves) |
| Amplitude (Signal Gen.) | 0.1 – 3.3 V |
| Waveforms (Signal Gen.) | Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti‑step wave, noise wave, exponential rise, exponential drop, DC signal, multi‑tone, sinc pulse, Lorentz wave |
| Waveforms (Signal Gen.) | Sine wave, rectangular wave, sawtooth wave, half wave, full wave, step wave, anti‑step wave, noise wave, exponential rise, exponential drop, DC signal, multi‑tone, sinc pulse, Lorentz wave |
Applications:
- Electronic circuit debugging.
- Signal waveform analysis.
- Sensor signal monitoring.
- Embedded systems testing.
- Audio circuit troubleshooting.
- DIY electronics projects.
- Educational laboratory experiments.
- Power supply signal inspection.
- Communication module testing.
- Portable field maintenance.
