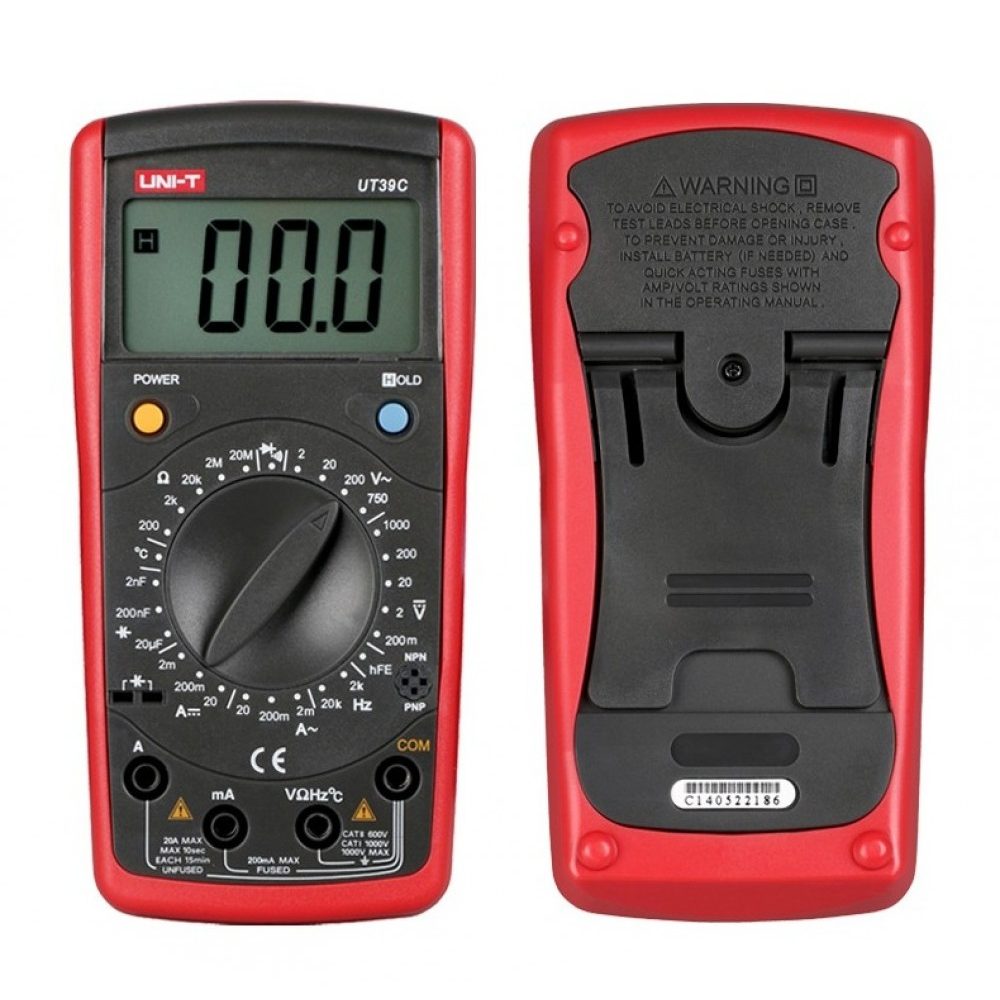

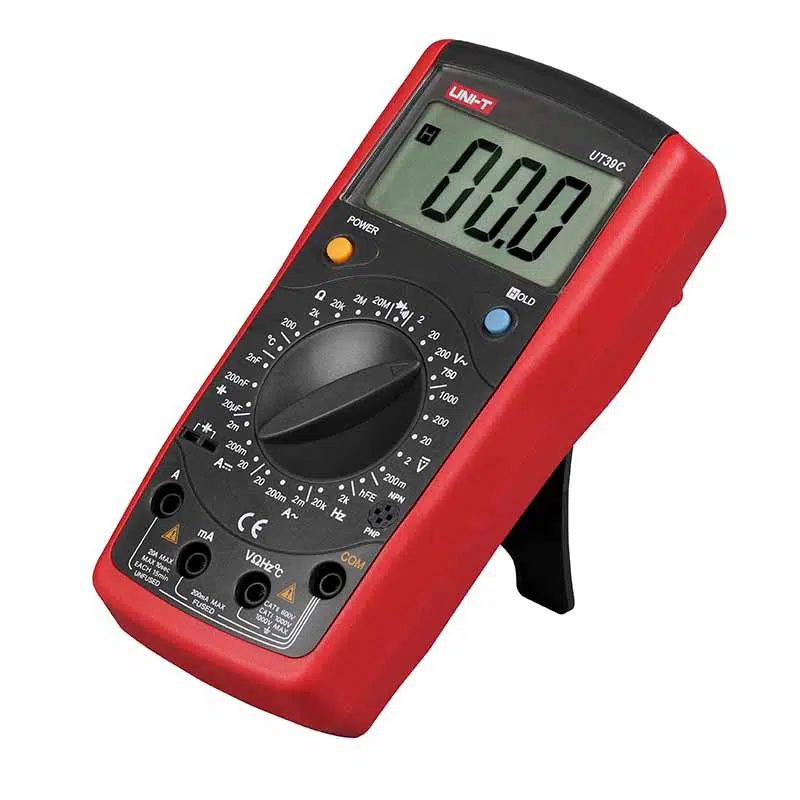

UNI-T UT39C Digital Multimeter
UNI-T UT39C Digital Multimeter is a compact, hand-held digital multimeter designed for field and bench use. It combines a clear, large LCD readout with a rugged, ergonomic housing and a rotary range switch for fast selection of measurement functions. The meter covers common electrical measurements (AC/DC voltage and current, resistance, capacitance, frequency and temperature) plus diode and continuity checks, making it a practical tool for electricians, HVAC technicians and electronics hobbyists.
UT39C provides manual-range operation with easy-to-use controls, data-hold and a continuity buzzer for quick diagnostics. It includes protection and safety features required for routine electrical work (CAT ratings on many variants) and a sleep/auto-power-off mode to extend battery life. The instrument accepts standard test leads and typically uses a 9V battery (or equivalent) for power.
Built to withstand workshop conditions, the UT39C series often features reinforced insulation, a fold-out stand/holster and drop resistance. Its measurement coverage (including temperature and frequency on + variants) plus simple, reliable operation makes it suitable for maintenance, troubleshooting and installation tasks across automotive, HVACR, residential and industrial contexts.
Features
- AC/DC voltage and current measurement (wide ranges).
- Resistance, capacitance, frequency and temperature measurement (on + variants).
- Diode test and continuity buzzer.
- Manual ranging with large LCD display (4000-count/4000-3999).
- Data-hold and auto power-off.
- Fold-out stand / holster and robust casing for workshop use.
Specifications
| Parameter | Details |
|---|---|
| DC Voltage | 200 mV / 2 V / 20 V / 200 V / 1000 V, ±(0.5% + 1) |
| AC Voltage | 2 V / 20 V / 200 V / 750 V, ±(0.8% + 3) |
| DC Current | 2 mA / 200 mA / 20 A, ±(0.8% + 1) |
| AC Current | 2 mA / 200 mA / 20 A, ±(1% + 3) |
| Resistance | 200 Ω / 2 kΩ / 20 kΩ / 2 MΩ / 20 MΩ, ±(0.8% + 1) |
| Capacitance | 2 nF / 200 nF / 20 µF, ±(4% + 3) |
| Temperature | -40 °C to 1000 °C, ±(3% + 10) |
| Frequency | 2 kHz to 20 kHz, ±(1.5% + 5) |
| Maximum Display | 1999 Counts |
| Range Type | Manual Range |
| Diode Test | Yes |
| Continuity Test | Yes (Buzzer) |
| Transistor Test | Yes |
| Data Hold | Yes |
| Auto Power Off | Yes |
| Low Battery Indication | Yes |
| Input Protection | Yes |
| Input Impedance (DC Voltage) | Around 10 MΩ |
| Power Supply | 1 x (NEDA 1604 / 6F22 / 006P) Battery 9V |
| Standard Accessories | Test Leads, Battery, Rubber Case, English Manual, Point Contact Temperature Probe |
| Product Dimensions | 172mm x 83mm x 38mm |
| Product Weight | 310g (Battery Included) |
Applications
- Electrical installation and maintenance.
- HVACR troubleshooting and servicing.
- Automotive electrical diagnostics.
- Electronics repair and bench testing.

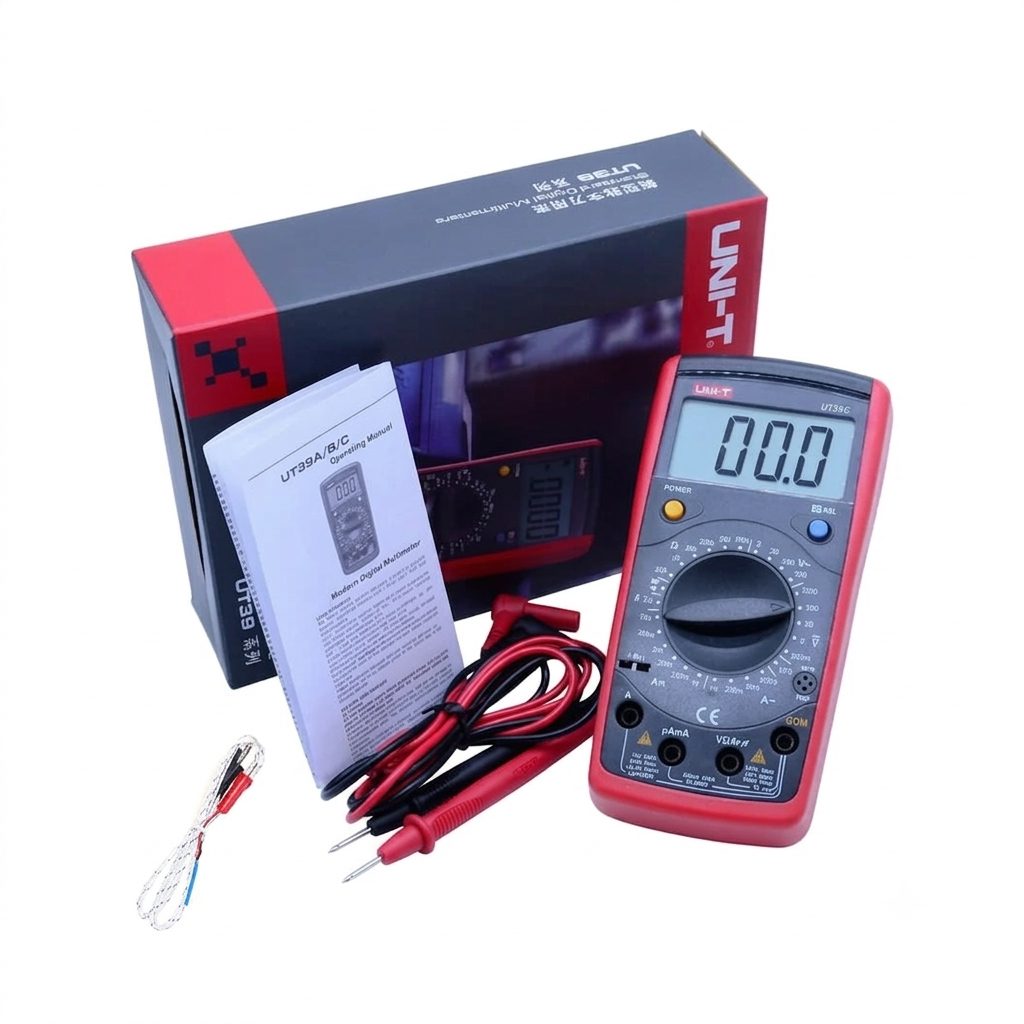

Package Contents
- 1 x UNI-T UT39C Digital Multimeter
- 1 x NEDA 1604 / 6F22 / 006P Battery 9V
- 1 Pair x Test Lead
- 1 x Point Contact Temperature Probe
- 1 x User Manual
- 1 x Gift Box
