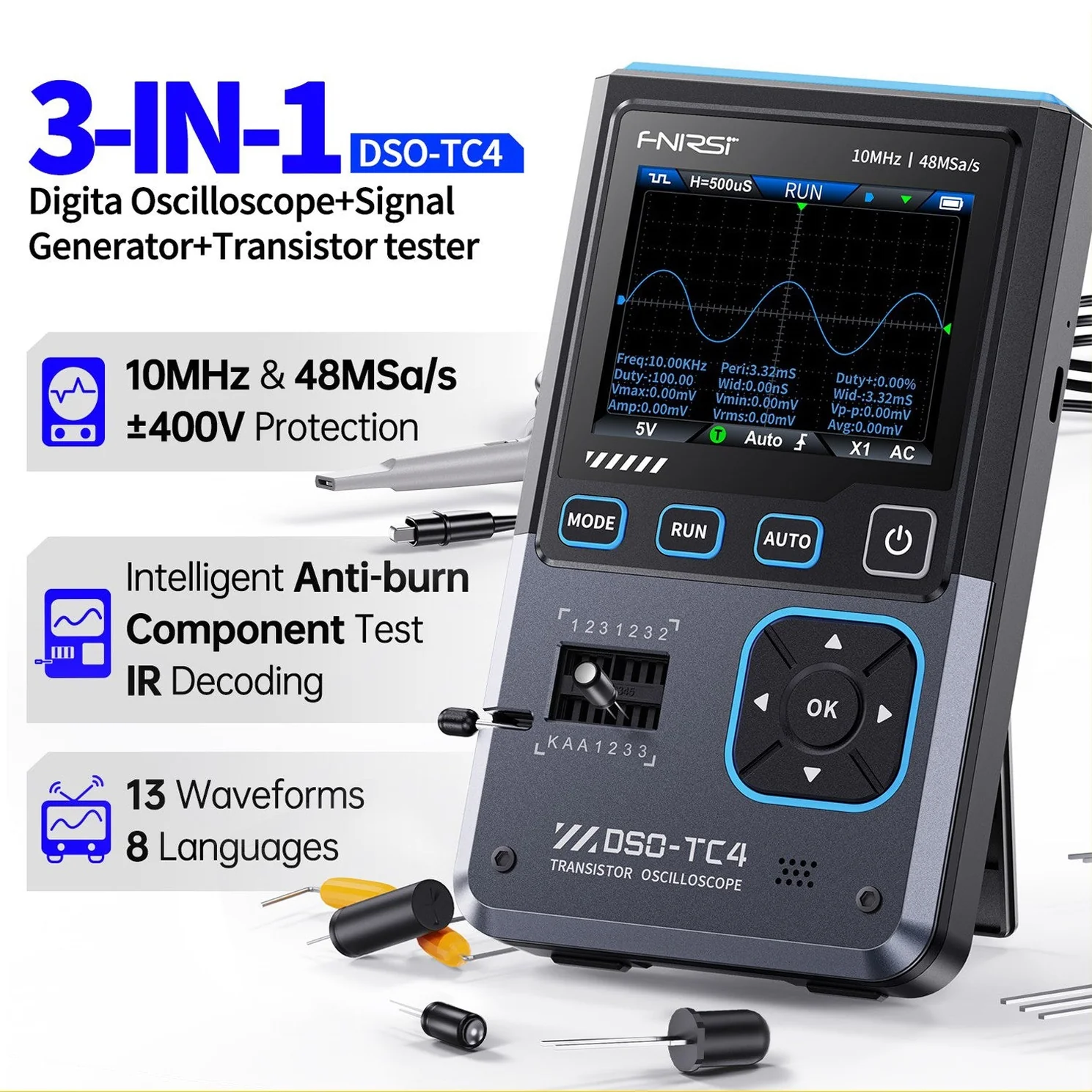

FNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/S Digital Oscilloscope Transistor Tester Signal Generator
DSO-TC4 3-in-1: 10MHz 1-ch scope, 13-waveform 50kHz signal generator & auto transistor/component tester with a 2.8″ TFT screen.
5,500.00 EGP
Buy NowFNIRSI® DSO-TC4 3-IN-1 10MHz 48MSa/S Digital Oscilloscope Transistor Tester Signal Generator

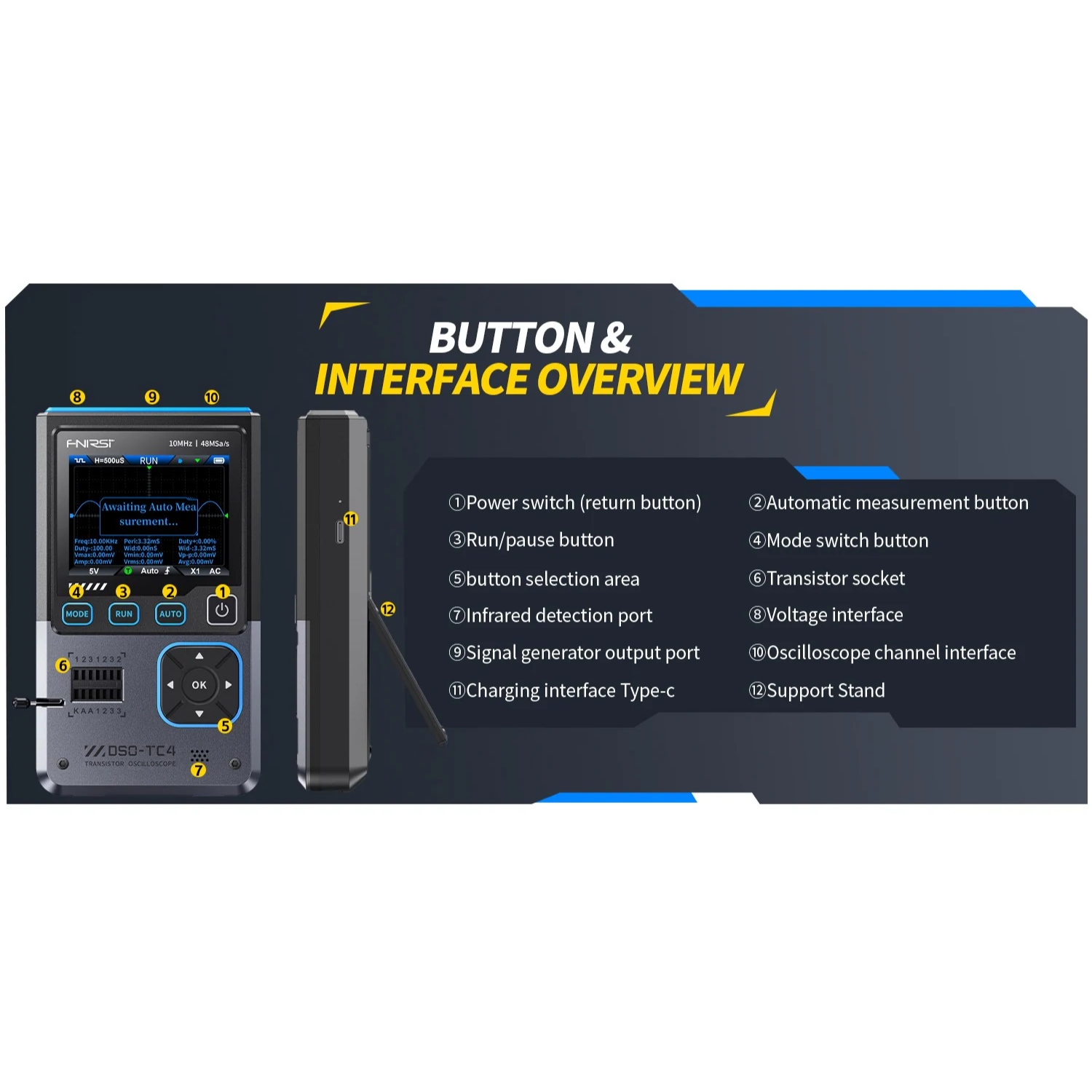

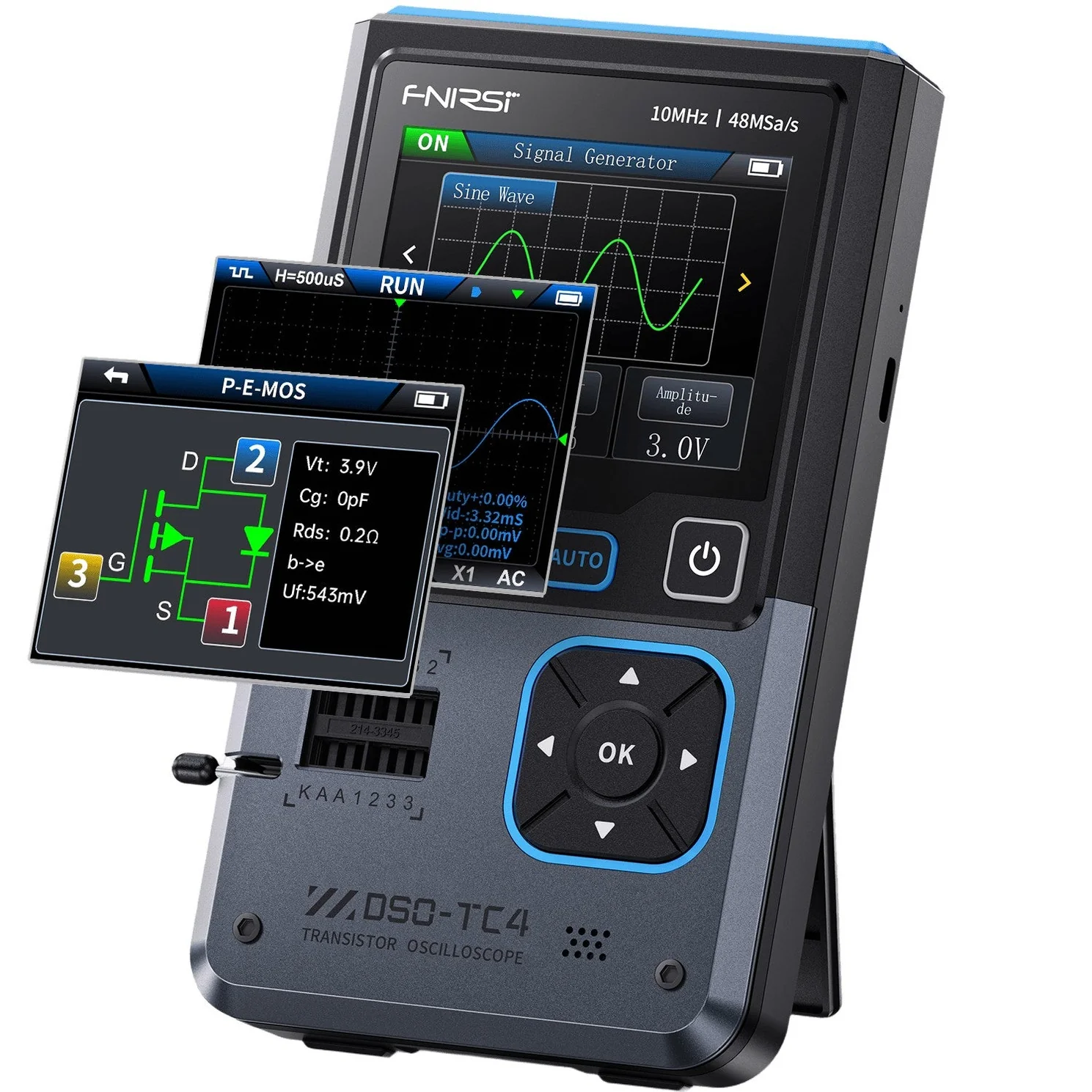

FNIRSI® DSO-TC4 is a versatile handheld electronic measurement instrument designed for engineers, technicians, electronics hobbyists, and educational laboratories. The device integrates three essential functions into a compact portable platform, including a digital oscilloscope, transistor/component tester, and DDS signal generator.
Features:
- 3-in-1 integration of oscilloscope, signal generator, and automatic component tester in a handheld form factor.
- 10MHz analog bandwidth oscilloscope with 48MSa/s real-time sample rate and 1MΩ input impedance.
- 2.8-inch TFT color display with adjustable backlight brightness for clear waveform and data visualization.
- AC/DC coupling with vertical sensitivity from 10mV/div to 10V/div and horizontal time base from 50ns to 20s per division.
- Three trigger modes (Auto, Normal, Single) with selectable rising or falling edge detection.
- Automatic waveform measurements including max, min, average, RMS, peak-to-peak, frequency, period, and duty cycle.
- Waveform freeze (HOLD) function for detailed post-capture analysis and screenshot storage.

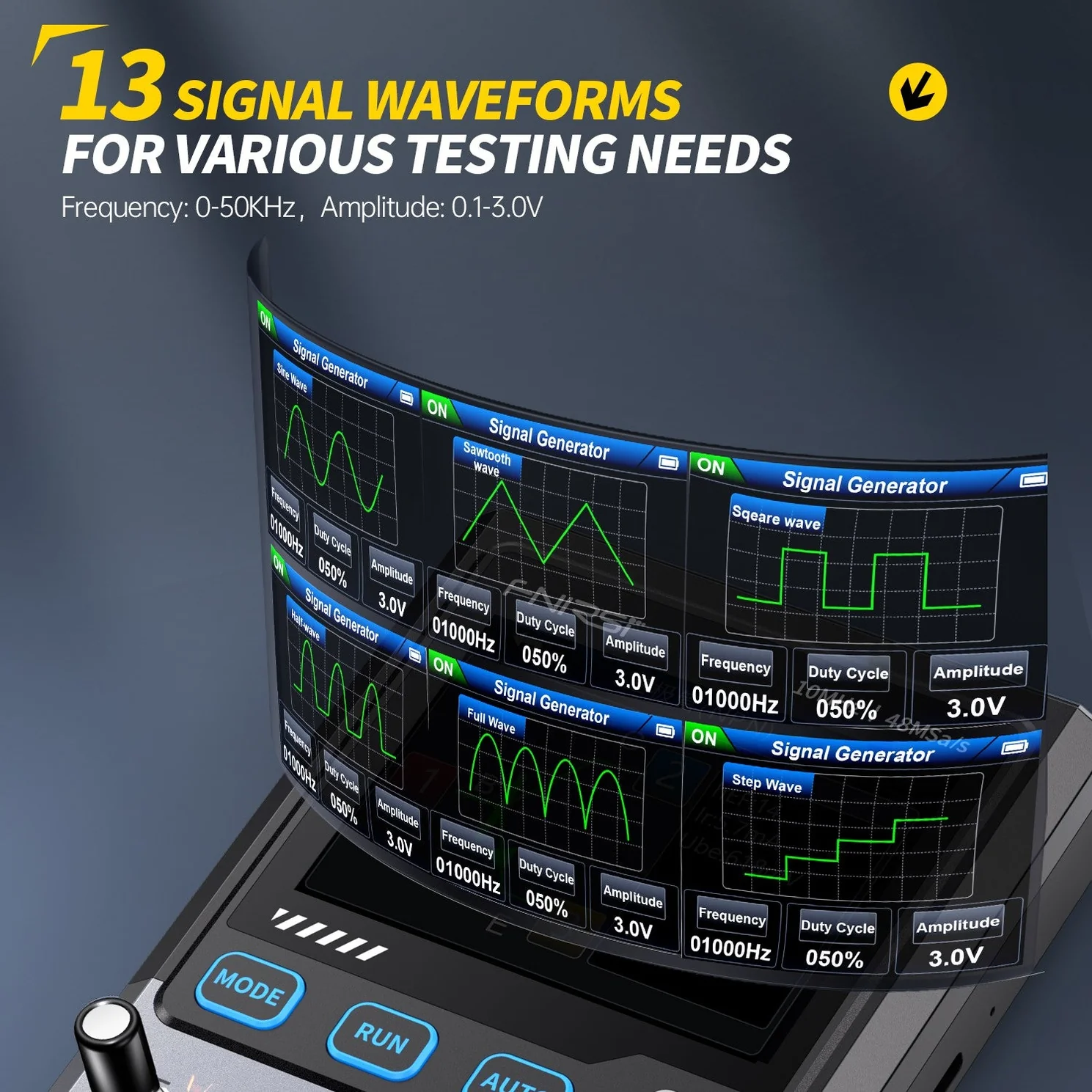

- 13-waveform DDS signal generator with 0-50kHz frequency range and 0.1-3.0Vpp adjustable amplitude.

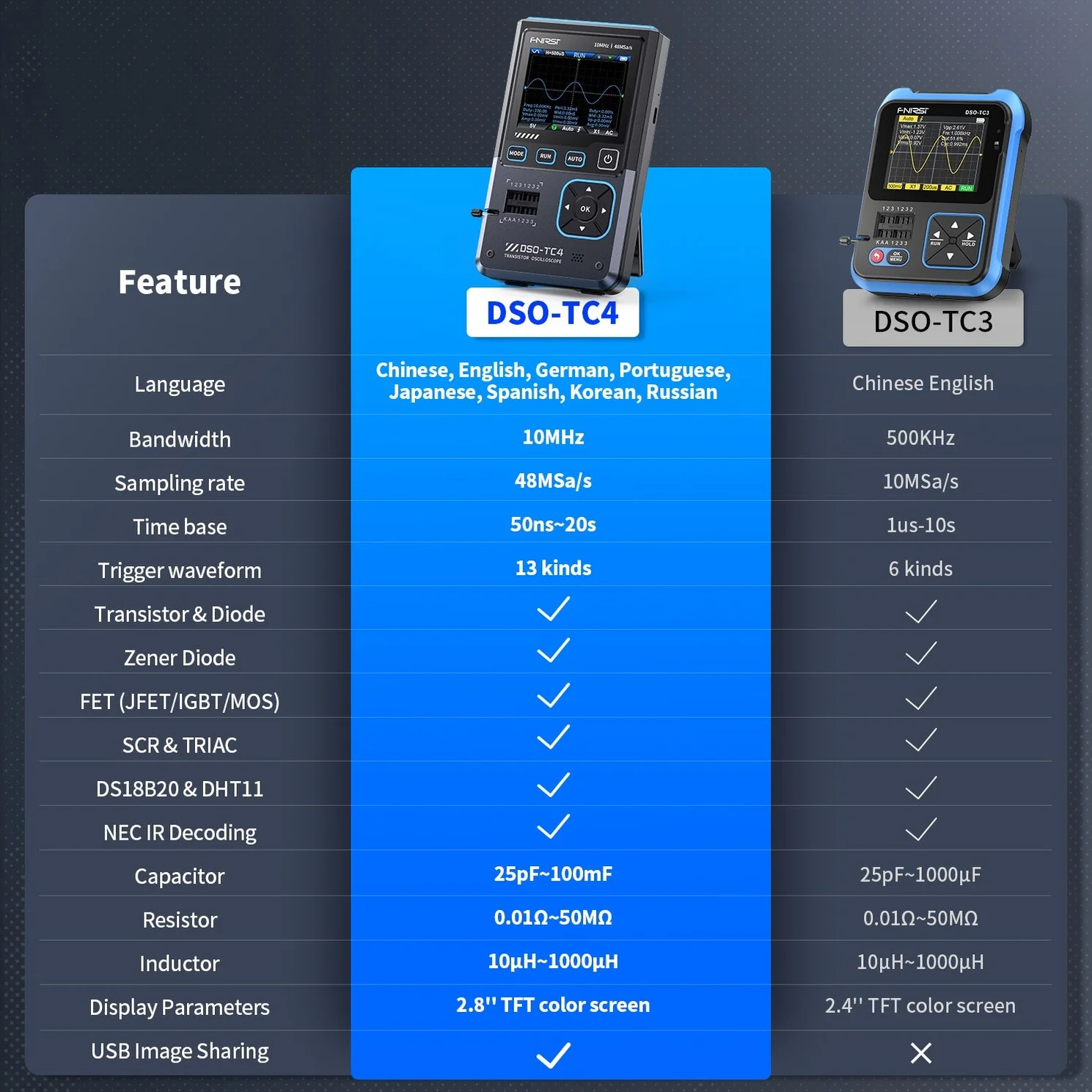

Specifications:

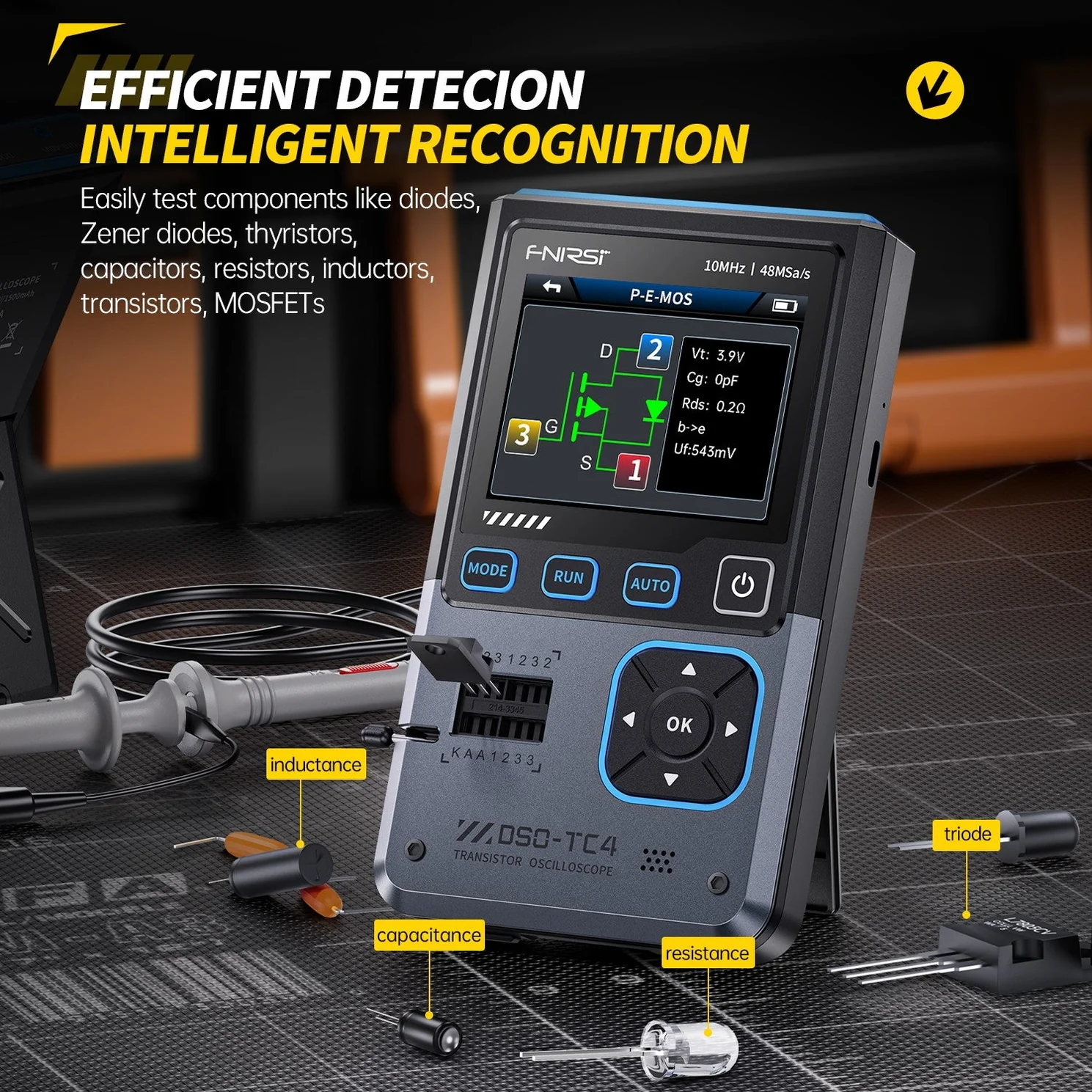

| Parameter | Value |
|---|---|
| Brand | FNIRSI. |
| Model | DSO-TC4. |
| Screen | 2.8-inch TFT Color Screen. |
| Backlight | Brightness Adjustable. |
| Power Supply | TYPE-C (5V/1A). |
| Battery | 3.7V/1500mAh. |
| Languages | 中文、English、Deutsch、Português、にほんご、Español、한국인、Pyccкий. |
| Size | ≈90x142x27.5mm. |
| Product Weight | ≈186g. |
| Real-Time Sampling Rate | 48MSa/s. |
| Analog Bandwidth | 10MHz. |
| Input Impedance | 1MΩ. |
| Coupling Mode | AC/DC. |
| Test Voltage Range (1:1 Probe) | 80Vpp (+40V). |
| Test Voltage Range (10:1 Probe) | 800Vpp (+400V). |
| Vertical Sensitivity | 10mV/div~10V/div (X1 range). |
| Vertical Displacement | Adjustable with indication. |
| Time Base Range | 50ns~20s. |
| Trigger Mode | Auto/Normal/Single. |
| Trigger Type | Rising edge, Falling edge. |
| Trigger Level | Adjustable with indication. |
| Waveform Freeze | Yes (HOLD function). |
| Automatic Measurement | Max, Min, Avg, RMS, Vpp, Frequency, Cycle, Duty Cycle. |
| Transistor Testing | Amplification factor “hfe”; Base-Emitter voltage “Ube”, Ic/Ie, Collector-Emitter reverse leakage current “Iceo”, Ices, Forward voltage drop of protection diode “Uf”. |
| Diode Testing | Forward voltage drop <5V (Forward voltage drop, Junction capacitance, Reverse leakage current). |
| Zener Diode Testing | 0.01~32V Reverse Breakdown Voltage (K-A-A Test Area). |
| FET Testing (JFET) | Gate capacitance “Cg”, Drain current Id under “Vgs”, Forward voltage drop of protection diode “Uf”. |
| FET Testing (IGBT) | Drain current Id under Vgs, Forward voltage drop of protection diode Uf. |
| FET Testing (MOSFET) | Threshold voltage “Vt”, Gate capacitance “Cg”, Drain-Source resistance “Rds”, Forward voltage drop of protection diode “Uf”. |
| Unidirectional SCR Testing | Trigger voltage <5V, Gate level (Gate voltage). |
| Bidirectional SCR Testing | Trigger current <6mA (Gate voltage). |
| Capacitor Testing | 25pF~100mF, Capacitance value, Loss factor “Vloss”. |
| Resistor Testing | 0.01Ω~50MΩ. |
| Inductor Testing | 10μH~1000μH, DC resistance. |
| DS18B20 Testing | Temperature sensor, Pins: GND, DQ, VDD. |
| DHT11 Testing | Temperature and humidity sensor, Pins: VDD, DATA, GND. |
| Signal Generator Output Waveform | Supports 13 waveform outputs. |
| Signal Generator Waveform Frequency | 0-50KHz. |
| Signal Generator Square Wave Duty Cycle | 0-100%. |
| Signal Generator Waveform Amplitude | 0.1V-3.0V. |
Applications:
- Electronic circuit debugging.
- Oscilloscope waveform analysis.
- Transistor and MOSFET testing.
- Semiconductor component identification.
- Embedded systems development.
- Arduino and microcontroller projects.
- Educational electronics laboratories.
- DIY electronics repair.
- Signal waveform generation.
- Audio circuit troubleshooting.
- Power supply diagnostics.
- Industrial maintenance applications.
- Electronic component sorting and testing.
- Field service and mobile repair tasks.

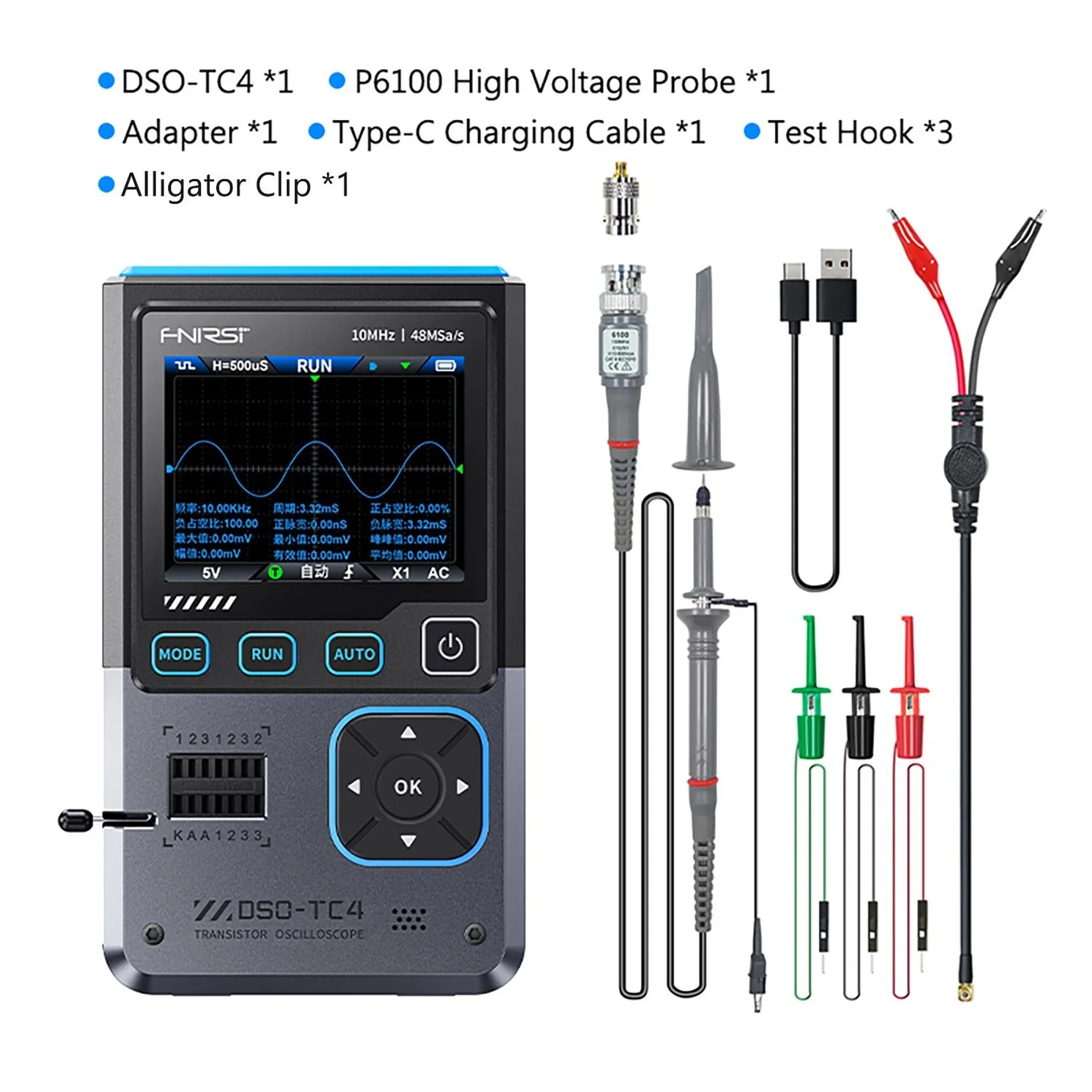

Package Include:
- 1x FNIRSI® DSO-TC4 Main Unit.
- 1x P6100 High Voltage Probe.
- 1x Type-C Charging Cable.
- 3x Test Hooks.
- 1x Alligator Clip.
- 1x Adapter.
- 1x User Manual.
- 1x Packaging Box.
