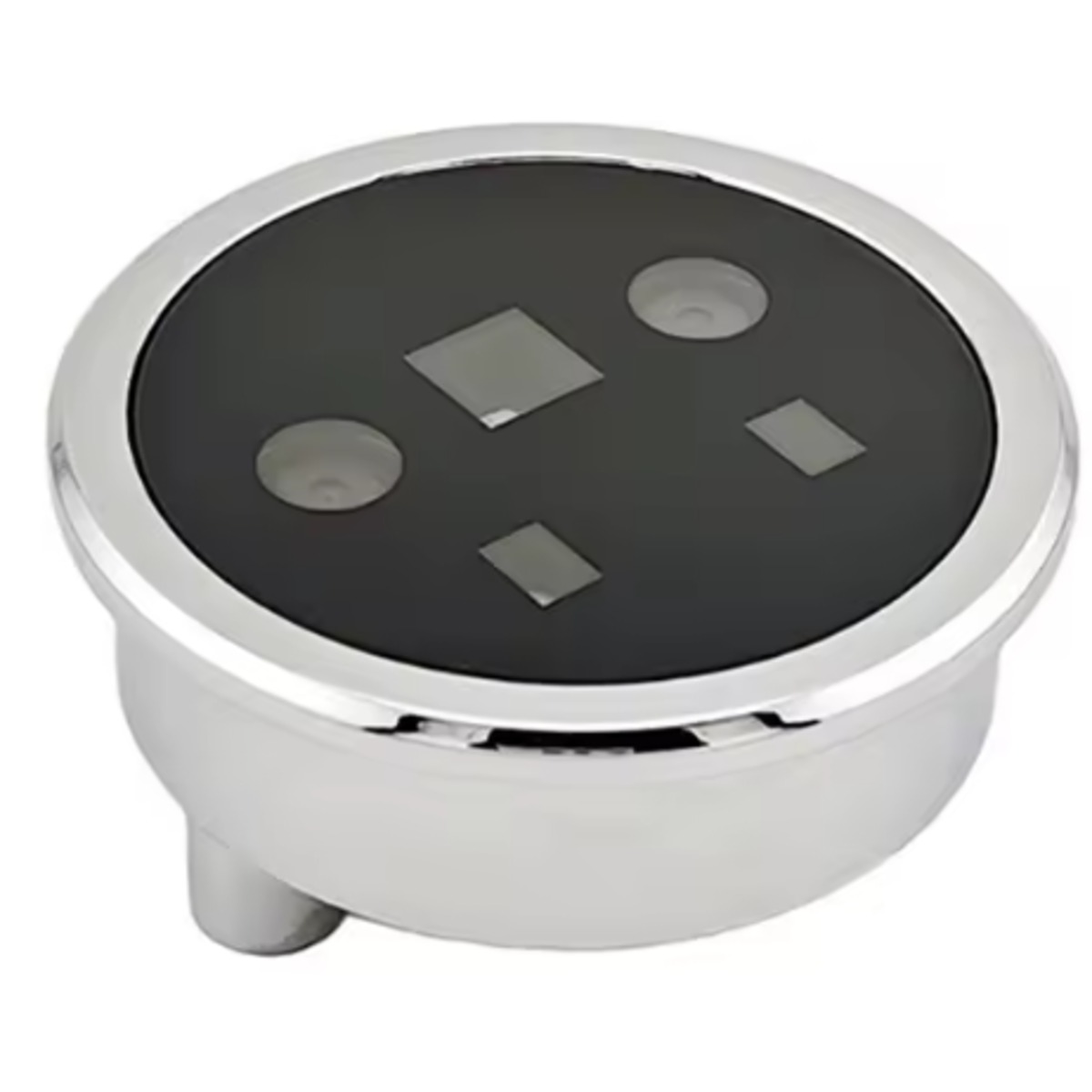

FP002 Double Lens Facial and Palm Vein Recognition Module
The FP002 Double Lens Facial and Palm Vein Recognition Module combines advanced facial recognition with palm vein biometric technology to provide fast, accurate, and highly secure identity verification. Equipped with a dual-lens camera system and infrared imaging, the module delivers reliable authentication even under varying lighting conditions while reducing the risk of spoofing.
Designed for integration into access control terminals, smart door locks, attendance systems, kiosks, and embedded security devices, the FP002 module offers a compact form factor and simple interface for OEM and industrial applications. Its high recognition accuracy and support for multiple biometric methods make it an ideal solution for modern security systems requiring convenient and contactless authentication.
Features:
- Dual biometric authentication using face and palm vein recognition.
- Dual-lens camera design for improved recognition accuracy.
- Contactless authentication for enhanced hygiene and convenience.
- Fast biometric matching and response.
- Infrared imaging for low-light operation.
- High resistance to photo and spoofing attacks.
- Compact module suitable for embedded systems.
- Easy integration into access control equipment.
- Stable and reliable operation.
- Designed for industrial and commercial applications.
Specifications:
| Specification | Value |
|---|---|

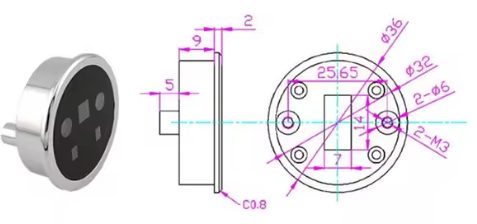

| Mounting Hole Diameter | 32 mm |
| Face Capacity | 500 Users (ID: 1–500) |
| Palm Vein Capacity | 300 Users (ID: 501–800) |
| Face Registration Distance | 20–90 cm (Optimal: 45–65 cm) |
| Face Recognition Distance | 20–130 cm |
| Palm Vein Registration Distance | 15–20 cm |
| Palm Vein Recognition Distance | 10–20 cm |
| Infrared Detection Distance | 0–70 cm |
| Infrared Standby Current | 60 µA |
| Infrared Standby Power | 88 µW |
| Status Indicator | Red, Green, White LEDs |
| Recognition Speed | ≤250 ms |
| False Acceptance Rate (FAR) | <0.001% |
| False Rejection Rate (FRR) | <0.1% |
| Communication Interface | UART |
| UART Baud Rate | 115200 bps |
| Operating Voltage | 4.5V – 12V DC |
| Operating Current | 200 mA |
| Standby Current | 38 mA |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +70°C |
| Operating Humidity | <95% RH |
| Storage Humidity | <95% RH |
| Housing Material | Zinc Alloy |
| Color | Silver & Black |
Pinout:
| Pin | Name | Description |
|---|---|---|
| 1 | VCC | Power input 5V |
| 2 | GND | Signal ground |
| 3 | TXD | Data output. TTL logical level |
| 4 | RXD | Data input. TTL logical level |
| 5 | IR | Infrared sensing, outputs high level when receiving induction |
| 6 | VCC | 3-5V infrared power input |
Applications:
- Face recognition access control systems.
- Palm vein authentication terminals.
- Smart door locks.
- Time attendance systems.
- Security access gates.
- Smart kiosks.
- Self-service terminals.
- Industrial authentication systems.
- Identity verification equipment.
- OEM biometric products.

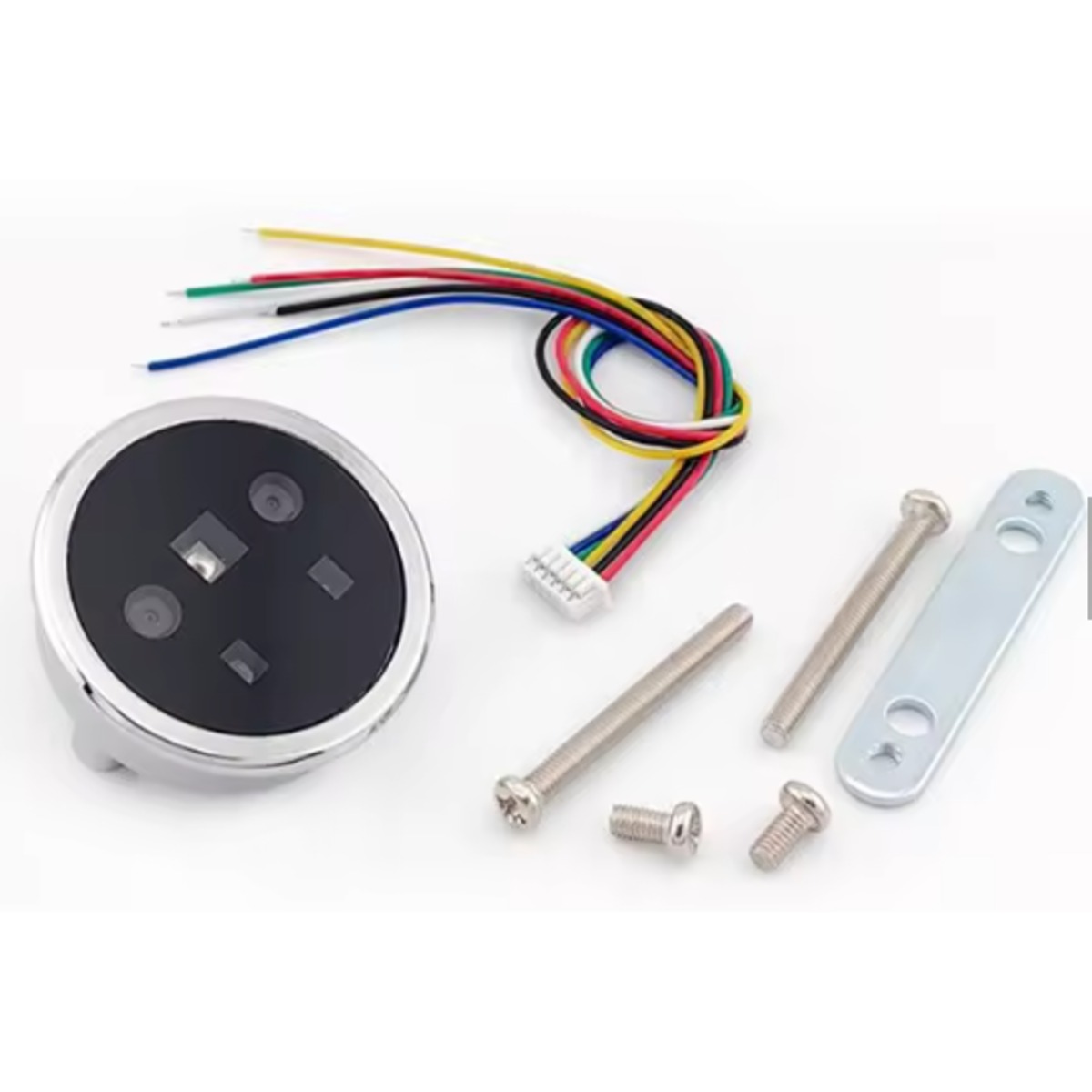

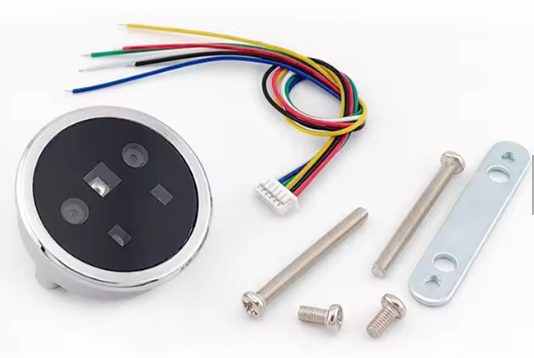

Package Includes:
- 1 × FP002 Double Lens Facial and Palm Vein Recognition Module.
- 1 × Connection cable.
- Mounting screws.
- Mounting bracket.
