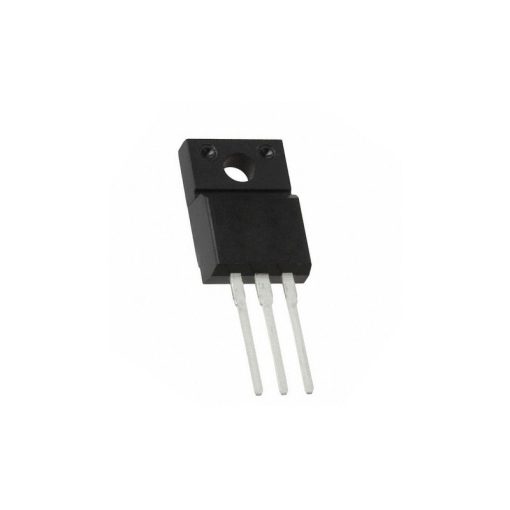

FS5KM N-Channel MOSFET Transistor TO-220F
The FS5KM N-Channel MOSFET Transistor TO-220F is a high-speed switching device ideal for SMPS, DC-DC converters, and other power applications with 900V breakdown voltage.
15.00 EGP
In stockSKU 3496300131587
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
FS5KM N-Channel MOSFET Transistor TO-220F
The FS5KM N-Channel MOSFET Transistor TO-220F is a high-performance power transistor designed for use in various power switching applications. With a breakdown voltage of 900V and a maximum drain current of 5A, it is ideal for SMPS (Switch Mode Power Supply), DC-DC converters, battery chargers, and other high-speed switching circuits. The FS-5KM is designed to offer superior performance with low on-state resistance (rDS(on)) of 2.8Ω, making it an efficient solution for power regulation and control.
Features:
- High-speed switching performance for efficient power conversion.
- 900V drain-source breakdown voltage for handling high voltage applications.
- Maximum drain current of 5A and low on-state resistance (rDS(on)) of 2.8Ω for low power loss.
- Gate-source threshold voltage (Vgs(th)) between 2 to 4V for reliable switching.
- TO-220F package for excellent thermal dissipation0
Specifications:
| Parameter | Value |
|---|---|
| Model | FS5KM |
| Package | TO-220F |
| Drain-Source Voltage | 900V |
| Gate-Source Voltage | ±30V |
| Drain Current | 5A |
| Drain-Source On Resistance (rDS(on)) | 2.8Ω |
| Gate-Source Threshold Voltage (Vgs(th)) | 2 to 4V |
| Power Dissipation | 30W |
| Thermal Resistance (Channel to Case) | 1.5°C/W |

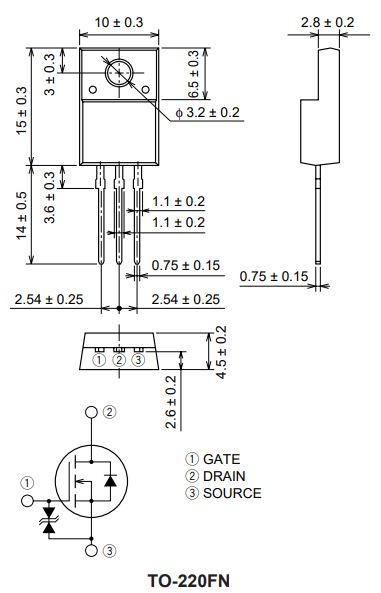

Pin Configuration:
Applications:
- Used in Switch Mode Power Supplies (SMPS) for efficient power conversion.
- Ideal for DC-DC converters and battery charging circuits.
- Suitable for motor controllers and industrial electronics.
- Commonly used in power regulation and protection circuits.
- Efficient in high-speed switching applications in consumer and industrial electronics.
Package Include:
1x FS5KM-N-Channel MOSFET Transistor TO-220F
Datasheet:
