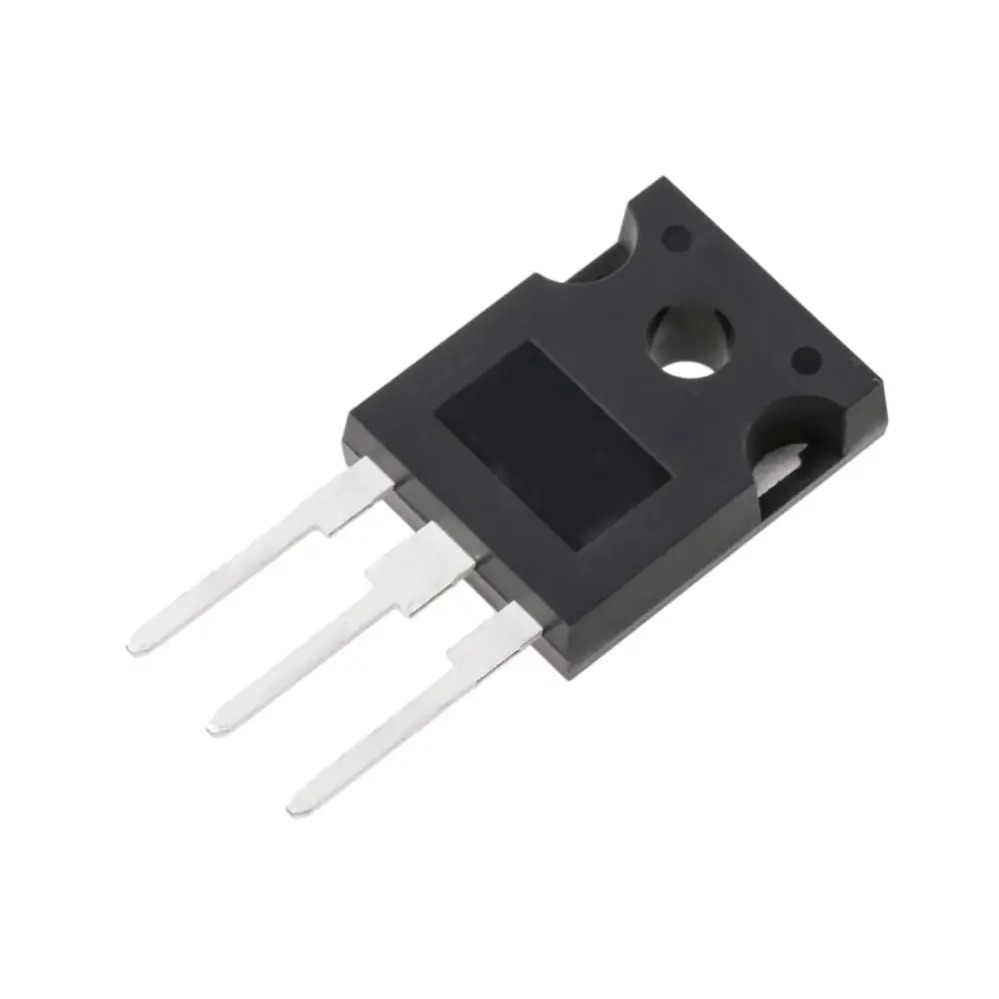

IRFP240 N-Channel MOSFET 200V-18A-0.18Ω TO-247
IRFP240 N-Channel Power MOSFET Transistor featuring 200V drain-source voltage, 18A drain current, low 0.18Ω on-resistance, and TO-247 package for high-power switching applications.
30.00 EGP
Buy NowIRFP240 N-Channel MOSFET 200V-18A-0.18Ω TO-247
The IRFP240 N-Channel MOSFET 200V-18A-0.18Ω TO-247V is a high-performance N-channel enhancement-mode power MOSFET designed for demanding power switching and amplification applications. It features a maximum drain-to-source voltage of 200V, a continuous drain current of 18A, and a low maximum drain-to-source on-resistance of 0.18Ω, providing excellent efficiency and low conduction losses. The TO-247 package offers superior thermal performance and is ideal for high-power circuits requiring efficient heat dissipation.
Features:
- N-Channel enhancement-mode power MOSFET.
- Maximum drain-to-source voltage of 200V.
- Continuous drain current up to 18A.
- Low on-state resistance of 0.18Ω(Max).
- Fast switching performance.
- Dynamic dV/dt rated.
- Repetitive avalanche rated.
Specifications:
| Parameter | Value |
|---|---|
| Part Number | IRFP240 |
| Transistor Type | N-Channel Power MOSFET |
| Technology | Enhancement Mode MOSFET |
| Package | TO-247AC |
| Mounting Type | Through-Hole |
| Drain-to-Source Voltage (VDS) | 200V |
| Continuous Drain Current (ID) | 18A |
| Pulsed Drain Current (IDM) | 80A |
| Drain-to-Source On-Resistance (RDS(on)) | 0.18Ω(Max) |
| Gate-to-Source Voltage (VGS) | ±20V |
| Gate Threshold Voltage (VGS(th)) | 2V to 4V |
| Power Dissipation (PD) | 150W |
| Total Gate Charge (Qg) | 70nC(Max) |
| Operating Junction Temperature | -55°C to +150°C |
| Package Style | TO-247AC |
Pin Configuration:
Applications:
- Switching power supplies.
- DC-DC converters.
- Motor drive circuits.
- Inverters.
- Uninterruptible power supplies (UPS).
- Battery charging systems.
- High-power audio amplifiers.
- Industrial automation equipment.
- Power control circuits.
- General-purpose high-power switching applications.
Package Include:
1x IRFP240 N-Channel MOSFET 200V-18A-0.18Ω TO-247
