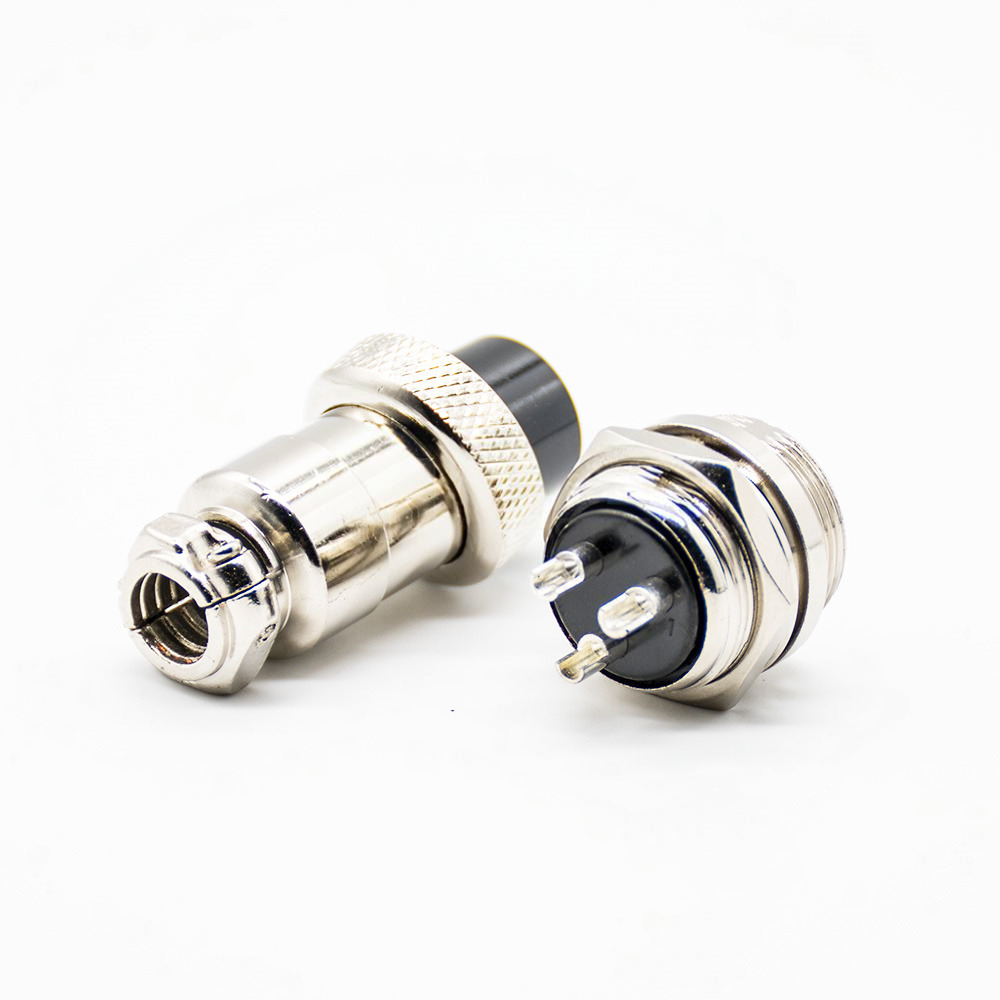

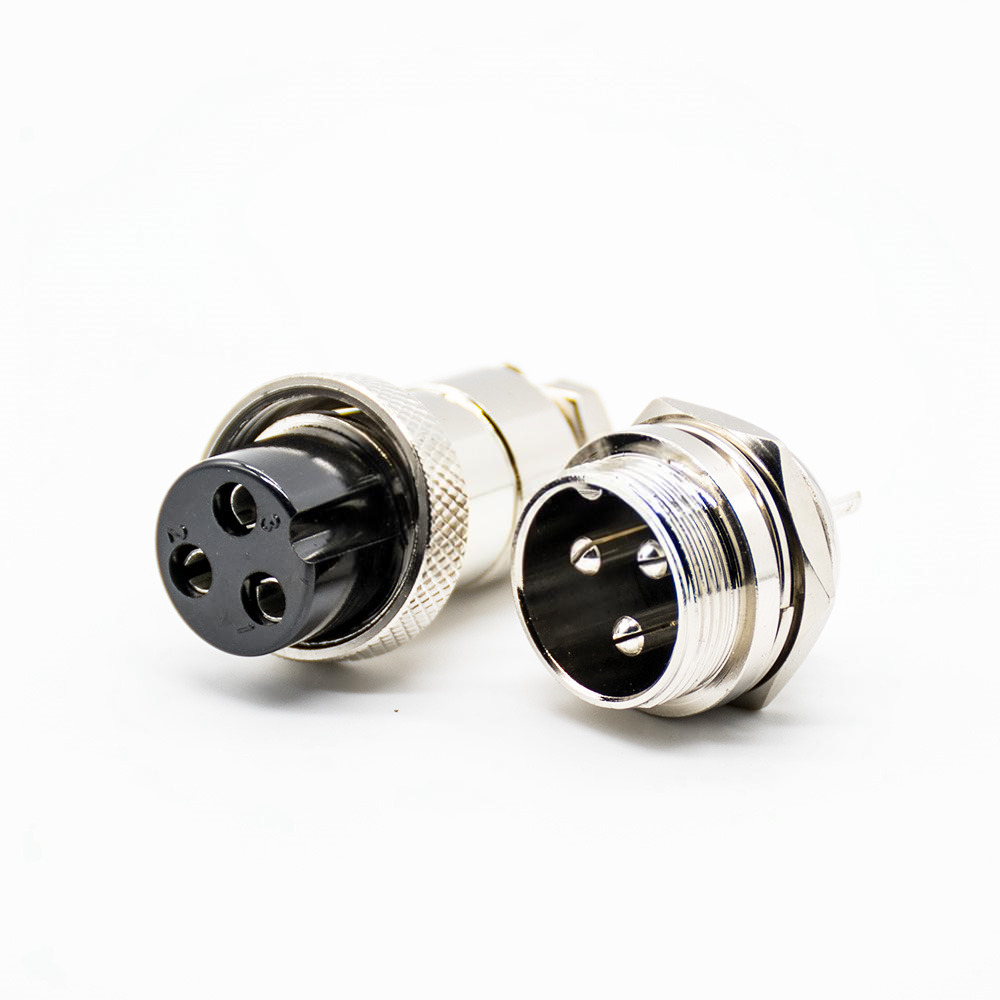

GX16 3-Pin Metal (Male/Female) Chassis Connector
The GX16 3-Pin Metal Chassis Connector is a heavy-duty circular connector. The all-metal housing with its bright silver finish and threaded screw-on coupling locks the two halves firmly together, making it far more resistant to vibration and accidental pull-out than ordinary friction-fit connectors.
Features
- All-metal housing with durable silver finish
- Panel-mount design
- 3 solder terminals for quick, dependable wiring
- Rated 125 V / 7 A, insulation resistance 1500 MΩ

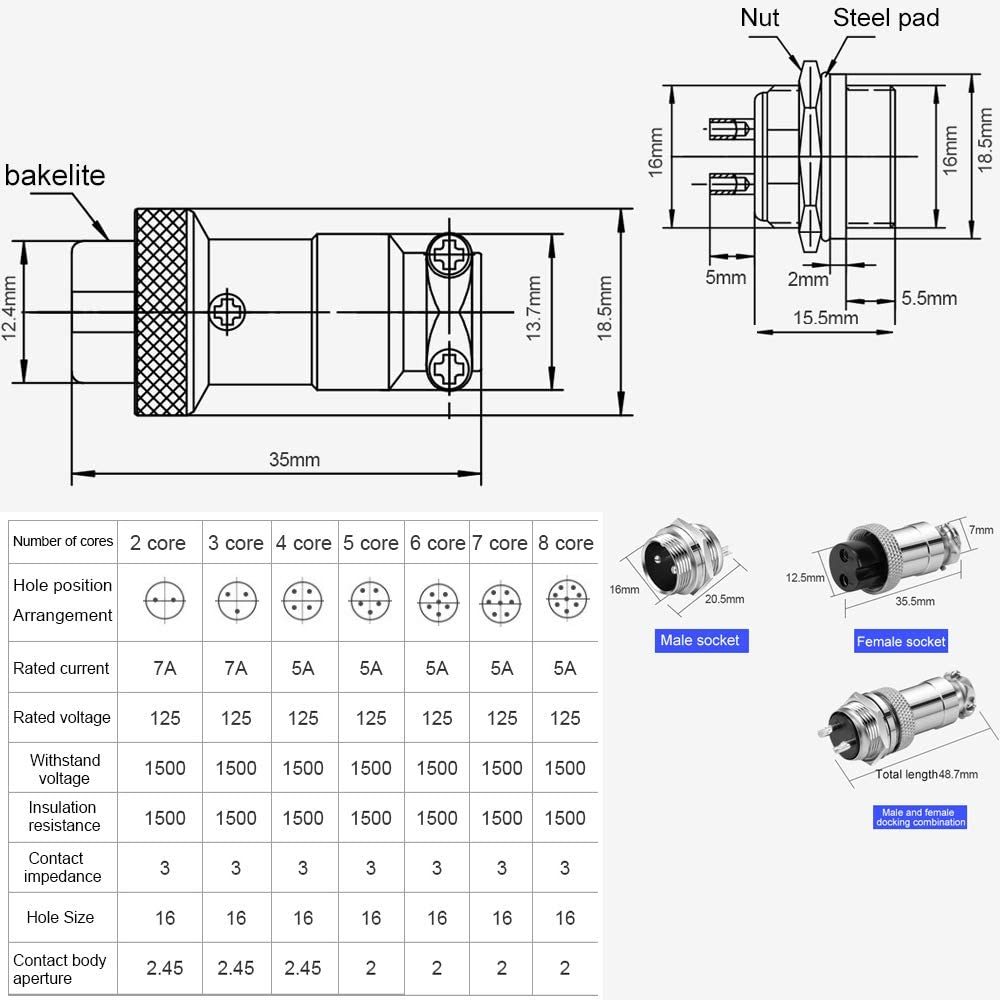

Specifications
| GX16 3-Pin Metal Chassis Connector – Specifications | |
|---|---|
| Number of Contacts | 3-Pin |
| Rated Voltage | 125 V |
| Rated Current | 7 A |
| Insulation Resistance | 1500 MΩ |
| Housing | Metal |
| Mounting Type | Panel mount |
| Mounting Thread / Cut-out | 16 mm |
| Overall Length | approx. 35 mm |
| Termination | Solder terminals (pins) |
Applications
- Low-voltage DC power distribution
- Audio and stage equipment
- 3D printers, CNC machines and laser engravers
- Industrial control panels and machinery wiring
- Robotics, RC models and DIY electronics projects
