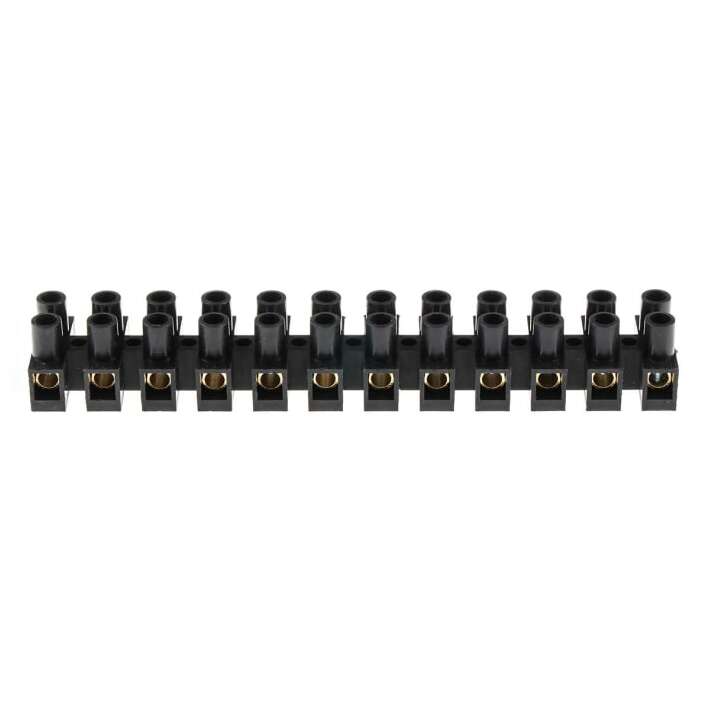

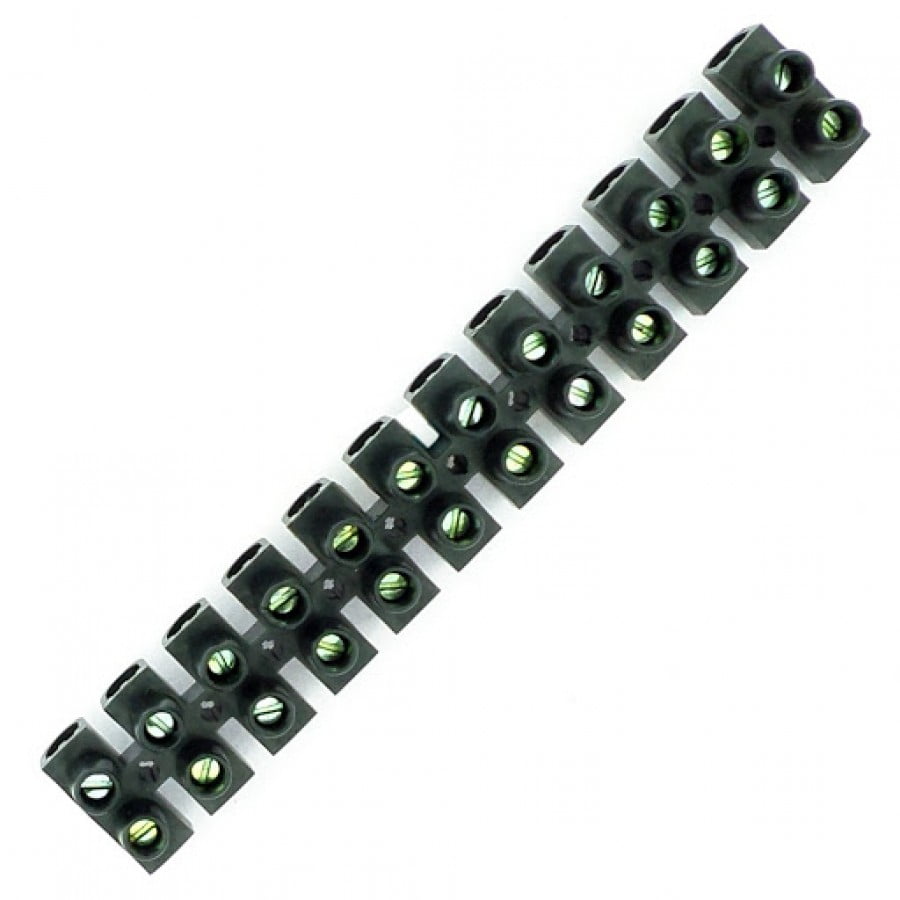

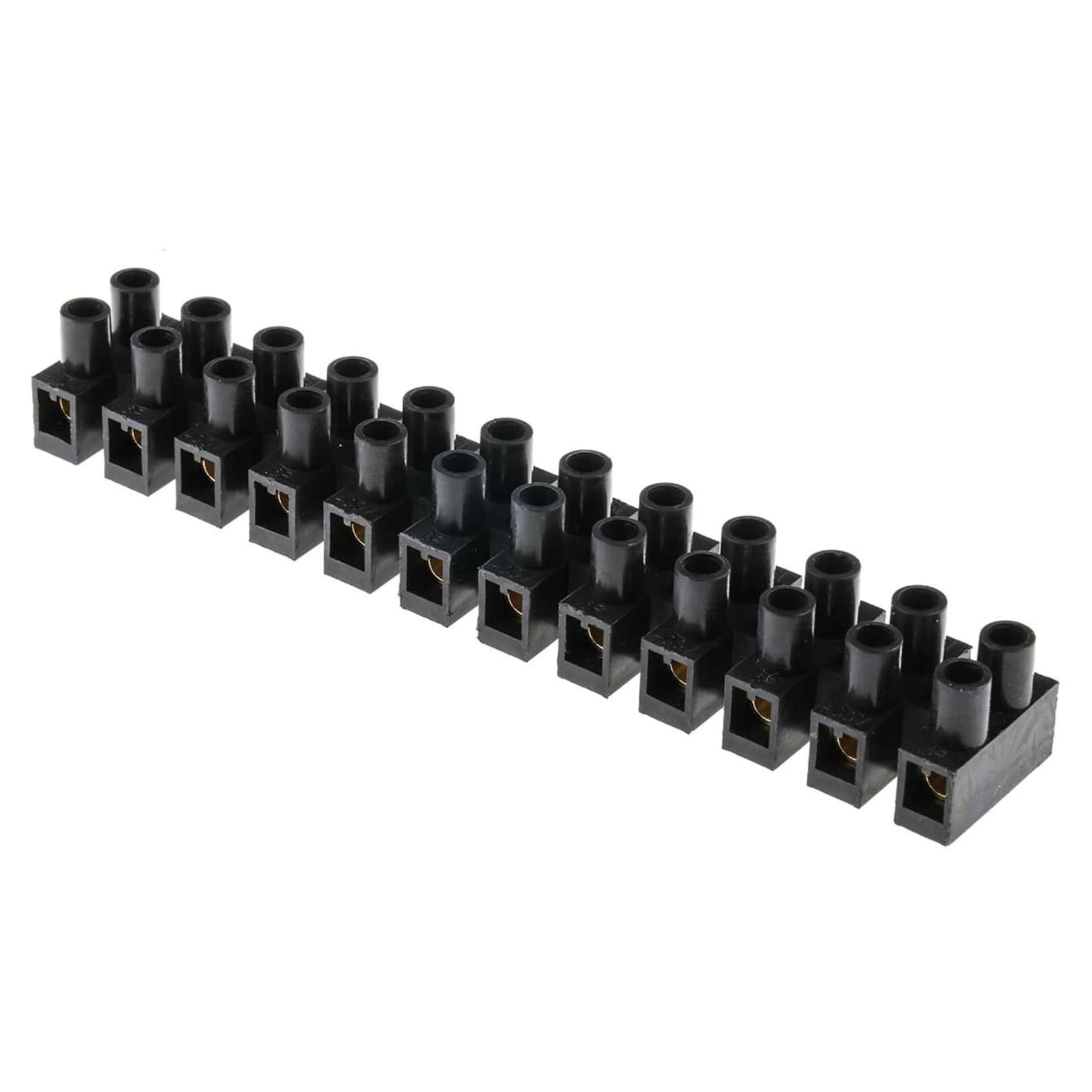

Black H-Type Barrier Strip Terminal Block 380V/6A 6mm² 2 Row 12 Position 9.5mm Pitch

Black H-Type Barrier Strip Terminal Block 380V/6A 6mm² 2 Row 12 Position 9.5mm Pitch

The Black H-Type Barrier Strip Terminal Block 380V/6A 6mm² 2 Row 12 Position 9.5mm Pitch is made from high-quality plastic material, offering excellent insulation, low cost, light weight, and corrosion resistance. Plastic Strip Terminal Block is used for safely connecting and managing electrical wires, featuring a two-row design with 12 positions on each row, allowing for the connection of up to 12 pairs of wires. Plastic Strip Terminal Block provides insulation and protection, while the partition design effectively prevents short circuits. The 6mm² wire capacity allows for secure connections of thick conductors, ensuring minimal resistance and safe operation. The 11mm pitch between the slots ensures sufficient space for easy installation and maintenance. Typically used in control panels, power distribution, and other industrial electrical systems, this terminal block ensures reliable performance while preventing accidental short circuits or wire disconnections.

Features:

• The H-type structure provides a two-row layout for enhanced wire organization and space efficiency. Ideal for parallel connections or dual-circuit setups.
• 380V, suitable for high-voltage electrical systems and environments.
• 6A, designed to handle a higher current load, making it ideal for heavy-duty applications.
• 6mm², capable of accommodating larger conductors, ensuring secure and efficient electrical connections.
• 2 rows of terminal connections, providing dual-level organization for better space utilization and clearer wiring setups.
• 12 positions, allowing for the connection of multiple wires in a single, compact terminal block.
• 9.5mm, offering ample space between terminals for easy wire insertion, maintenance, and insulation protection.
• Constructed from high-quality, heat-resistant materials, such as PE Insulating Shell and durable metal conductors brass.
• Built to ensure safe operation with secure wire retention, minimizing the risk of accidental disconnections or short circuits.
• Engineered for high performance and longevity in industrial environments with heavy usage and demanding electrical conditions.
• Mounting Options where designed for Panel Mounting (Screw Mounting), providing flexibility for different installation methods.
• Suitable for use in industrial, commercial, and automation applications, even in harsh environments.

Specifications:

• Product Type: Barrier Strip Terminal Block
• Terminal Block Shape: H-Type
• Color: Black
• Rated Voltage: 380V
• Rated Current: 6A
• Number of Positions: 12 Position
• Number of Rows: 2 Row
• Pitch (Terminal Spacing): 9.5mm
• Wire Capacity: 6mm²
• Dimensions(L X W X H): 105mm X 14.5mm X 12mm
• Material:
  • Base: PE Insulating Shell
  • Conductor: Brass
• Mounting Type: Panel Mounting
• Mounting Style: Through Hole
• Operating Temperature: -40°C  to  +80°C

Applications:

• Industrial Control Panels.
• Heavy Machinery.
• HVAC Systems.
• Power Distribution Units (PDUs).
• Renewable Energy Systems.
• Automation and Control Systems.
• Lighting Systems.

Package Contents:

• 1 X  Black H-Type Barrier Strip Terminal Block 380V/6A 6mm² 2 Row 12 Position 9.5mm Pitch
