Honeywell AWM43300V Air Flow Sensor +1000sccm Female, 0.19″ (4.826mm) Plastic
The Honeywell AWM43300V Air Flow Sensor is part of the AWM40000 series, designed using advanced microbridge technology to provide accurate and reliable measurement of gas flow up to ±1000 sccm. It operates based on thermal mass flow sensing, where airflow passing over a heated microstructure causes a temperature difference that is converted into a proportional electrical output. This design ensures high sensitivity, fast response, and excellent repeatability, making it suitable for precision applications.
The sensor integrates signal conditioning circuitry, delivering a calibrated analog voltage output proportional to the airflow rate. Its compact plastic housing with female ports allows easy installation into airflow systems and tubing. With low power consumption and stable performance across temperature variations, the AWM43300V is widely used in medical instrumentation, gas analysers, and environmental monitoring systems requiring accurate and consistent airflow measurement.
Features
- Precision silicon micromachining.
- High sensitivity to low flows.
- Adaptable for higher flows.
- Low power consumption (supports portable/battery devices).
- Analog ratiometric voltage output.
- Standard 2.54 mm [0.10 in] mounting centers.
- Laser‑trimmed interchangeability.
- Accurate sensing of low pressure.
- Fast response time.
- Onboard signal conditioning (amplified version).
- Thermophoretic dust repulsion.
Specifications:
| Parameter | Value |
|---|---|
| Model Number | Honeywell AWM43300V |
| Flow range (full scale) | +1000 sccm (standard cm³/min) |
| Calibration gas | Nitrogen |
| Recommended excitation voltage | 10.000 ±0.010 Vdc |
| Supply voltage (min/max) | 8.0 Vdc / 15.0 Vdc |
| Power consumption | 60 mW max |
| Output at full scale (1000 sccm) | 5 Vdc ±0.15 Vdc |
| Null output (zero flow) | 1.000 Vdc ±0.050 Vdc |
| Null output shift (-25°C to 85°C) | ±0.025 Vdc max |
| Repeatability & hysteresis | ±0.5% reading max |
| Pressure drop at full scale | 1.02 inH₂O typical |
| Response time | 1.0 ms typical, 3.0 ms max |
| Overpressure | 10.3 bar [150 psi] max |
| Max flow pulse (to prevent damage) | 5 SLPM/s |
| Output load (sinking) | 10 mA |
| Output load (sourcing) | 20 mA |
| Operating temperature | -25°C to 85°C [-13°F to 185°F] |
| Storage temperature | -40°C to 90°C [-40°F to 194°F] |
| Ratiometricity error | ±0.3% reading nominal |
| Shock (5 drops, 6 axes) | 100 g peak |
| Weight | (not specified for AWM43300V; typical ~11 g) |

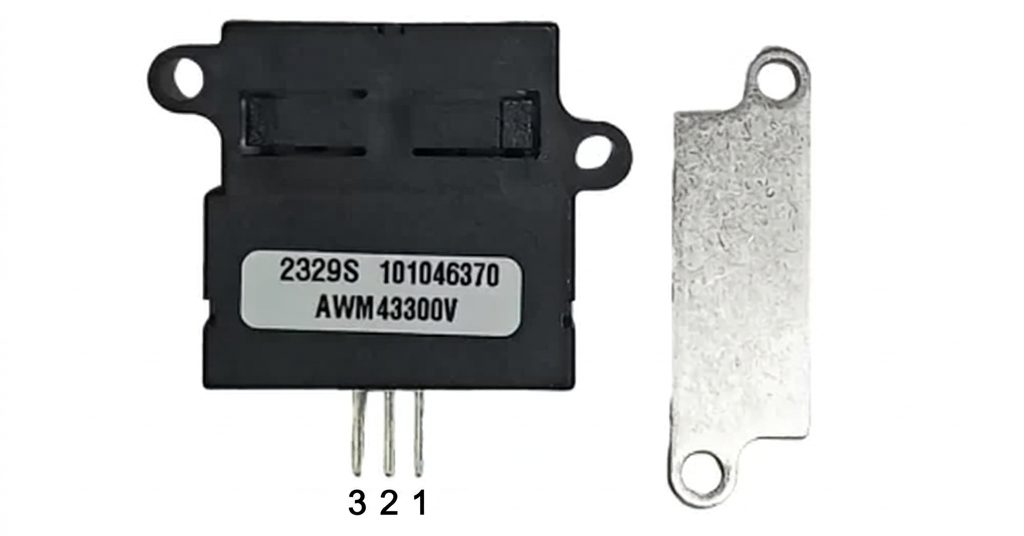

Pinout:
| Pin | Signal | Description |
|---|---|---|
| 1 | Output | Analog voltage output (0–5 V) |
| 2 | Supply | Supply voltage (+10 Vdc nominal, 8–15 Vdc) |
| 3 | Ground | Power and signal ground |
Applications:
Medical:-
- Respirators and ventilators.
- Oxygen concentrators and conservers.
- Anesthesia machines.
Industrial:-
- HVAC damper control.
- Gas analyzers.
- Low vacuum control.
- Process control.
- Leak detection equipment.
- Vent hoods.
- Gas metering.
- Chromatography.
