IC Socket (20+20)- Base 40 Pin

IC Socket (20+20)- Base 40 Pin

The IC Socket (20+20) – Base 40 Pin is an essential electronic component designed to securely hold integrated circuits in a dual in-line package format. It consists of two parallel rows of 20 pins each, forming a total of 40 points that align perfectly with standard DIP ICs. This socket is mounted onto a printed circuit board (PCB), acting as an interface between the board and the IC. By providing a dedicated seating structure, it ensures proper alignment and stable electrical connections between the IC pins and the circuit.

The socket serves as a removable holder, allowing integrated circuits to be inserted and removed without direct soldering. This design helps protect sensitive IC components from thermal damage caused during soldering processes. It is particularly useful in situations where ICs may need to be replaced, upgraded, or reprogrammed frequently. The durable construction, often made from heat-resistant plastic with metal contacts, ensures long-term reliability and consistent performance in various electronic assemblies.

Features:

• Dual-row (20+20) pin configuration.
• Easy insertion and removal of ICs.
• Molded notch for correct orientation.
• Reliable contact connection design.
• Reusable socket structure.
• JDEC standard compliance.
• Durable insulating body.
• Low contact resistance.

Specifications:

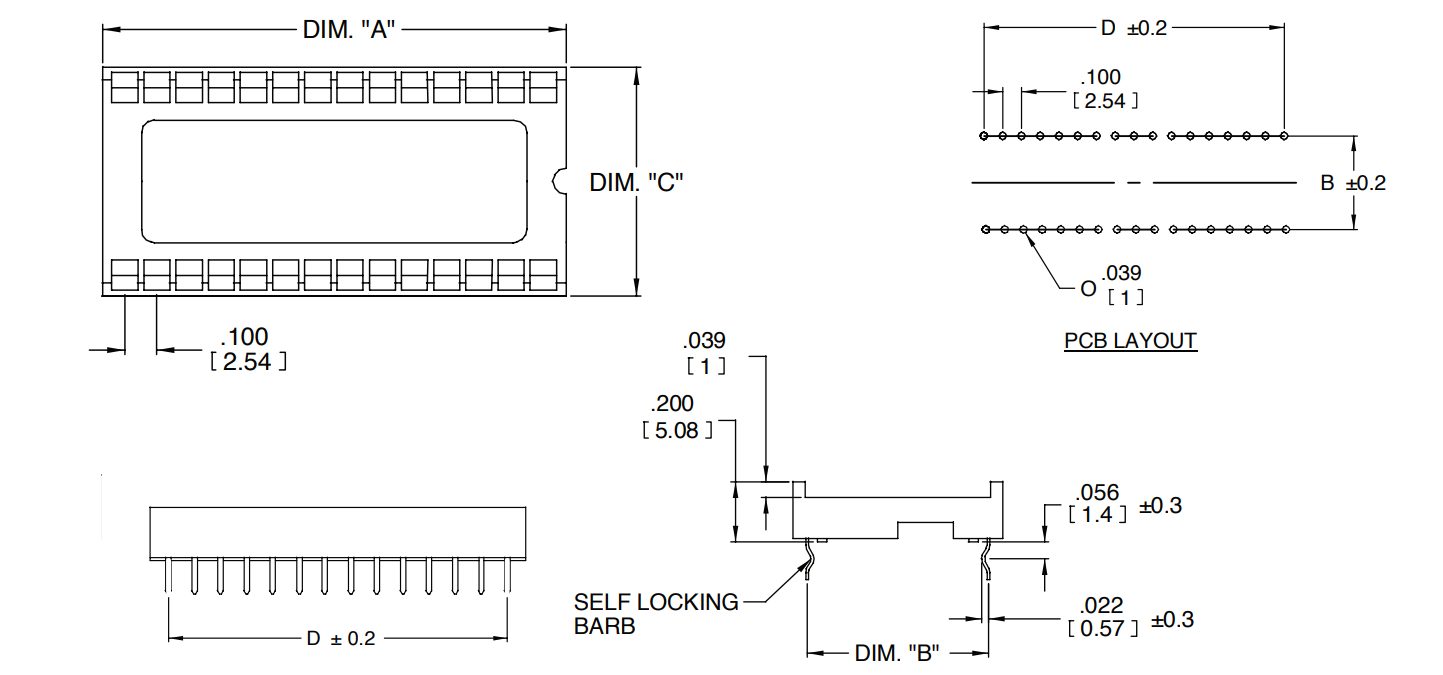

A=50.67mm   ,  B=15.24mm  ,  C=17.78 mm

Applications:

• Prototyping and Development Boards.
• Microcontroller Mounting.
• IC Testing and Debugging.
• Educational Electronics Kits.
• Circuit Repair and Maintenance.

Package Contents:

• 1x IC Socket (20+20)- Base 40 Pin
