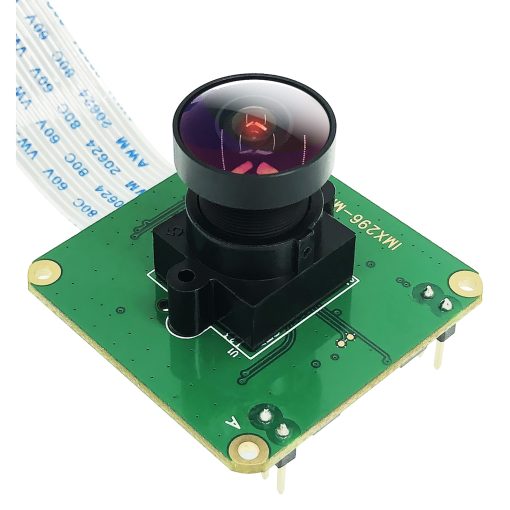

InnoMaker Camera CAM-IMX296RAW
The InnoMaker CAM-IMX296RAW is a cutting-edge global shutter camera module engineered for high-performance imaging applications. Equipped with the IMX296 monochrome sensor, this module delivers exceptional image quality at a resolution of 1.58 megapixels (1456 x 1088 pixels). The global shutter technology ensures simultaneous exposure of all pixels, eliminating the rolling shutter effect, which makes it ideal for capturing fast-moving objects without distortion. This feature is particularly valuable in dynamic environments where precision and clarity are paramount.
Features:
- Support up to 60fps at 1456×1088 Pixels, Compatible with rasberry pi GS camera.
- Comes with 1x M12 Len-seat and 1xCS Len-Seat, 1x M12 Len.
- Support Pi 4B/Pi 3B+/Pi 3B/Pi 3A+/CM4/CM3+/CM3 Directly with libcamera tools.
- Output format Y10 with Resolution 1456*1088 up to 60fps (InnoMaker Driver).
- Output format YUV with Resolution 1456*1088 up to 60fps;(Raspberry PI OS Driver).
- This chip operates with analog 3.3V, digital 1.2V, and interface 1.8V triple power supply.
- low power consumption.
- High sensitivity, low dark current and low PLS characteristics are achieved.
Specifications:
| Size | 39mm×39mm |
| Still resolution | 1.58 Megapixels |
| Video modes | 1456 x 1088p60 |
| Sensor | Sony IMX296 Mono Version |
| Sensor resolution | 1456 x 1088 pixels |
| Sensor image area | 6.3mm diagonal |
| Pixel size | 3.45 µm x 3.45 µm |
| Optical size | 1/2.9″ |
| Focus | Adjustable |
| Maximum exposure times (seconds) | 15.5 |
| Lens Mount | C/CS |
Pin Configuration:
Applications:
- High-speed imaging for robotics and automation.
- Machine vision and industrial inspection.
- Scientific research requiring precise image capture.
- Surveillance systems with synchronized imaging needs.
- Augmented reality and virtual reality applications.
- Custom camera setups for embedded systems.

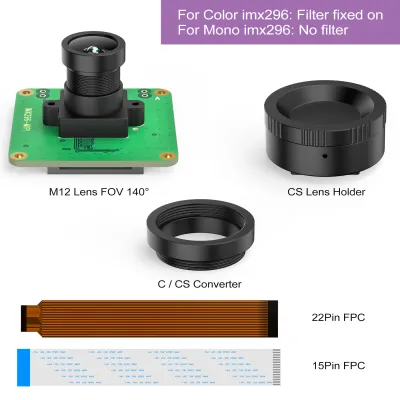

Package Include:
- 1xCAM-IMX296RAW Module
- 1xM12 Lens with M12 Lens Seat
- 1xCS Lens Seat
- 2xFPC Cable
