ULN2003 Seven Darlington Array DIP-16

A ULN2003 high-current 7-channel Darlington transistor array for driving relays, motors, LEDs, solenoids, and other high-power loads from logic-level signals.

7.00 EGP

In stockSKU 9243876272695
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
Availability: In Stock
SKU:9243876272695
ULN2003 Seven Darlington Array DIP-16

ULN2003 IC is one of the most commonly used Motor driver IC generally used when we need to drive high current loads using digital logic circuits like Op-maps, Timers, Gates, Arduino, PIC, ARM etc. For example a motor that requires 9V and 300mA to run cannot be powered by an Arduino I/O hence we use this IC to source enough current and voltage for the load.

Features:
  • Contains 7 high-voltage and high current Darlington pairs.
  • Each pair is rated for 50V and 500mA.
  • Input pins can be triggered by +5V.
  • All seven Output pins can be connected to gather to drive loads up to (7×500mA) ~3.5A.
  • Can be directly controlled by logic devices like Digital Gates, Arduino, PIC etc.
  • 16-pin DIP.
Specifications:
Parameter Value
Device ULN2003

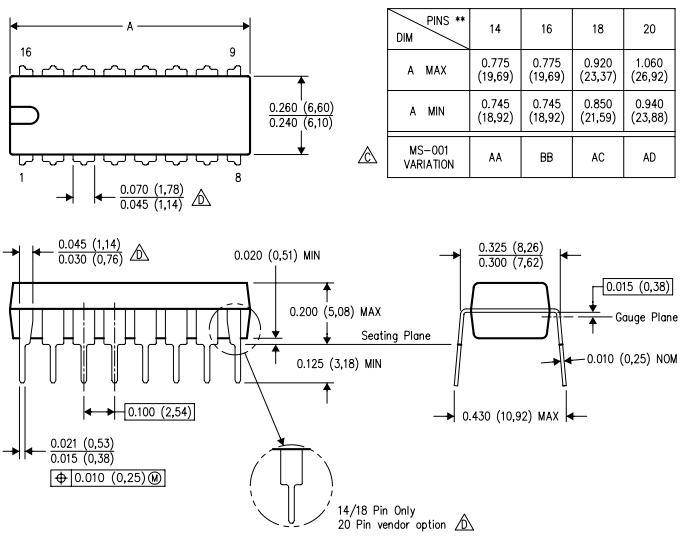

Package DIP-16
Number of Channels 7
Output Type Open Collector
Maximum Output Voltage 50V
Maximum Output Current 500mA per channel
Peak Output Current 600mA
Input Logic Compatibility TTL / 5V CMOS
Integrated Clamp Diodes Yes
Operating Temperature -20°C to +70°C (Commercial Version)
Pinout:
Applications:
  • Used to drive high current loads using Digital Circuits.
  • Can be used to drive Stepper motors.
  • High current LED’s can be driven.
  • Relay Driver module (can drive 7 relays).
  • Logic Buffers in digital electronics.
  • Used as Touch sensor for Arduino.
Package Includes:
  • 1x ULN2003 Seven Darlington Array DIP-16.
Documents:
