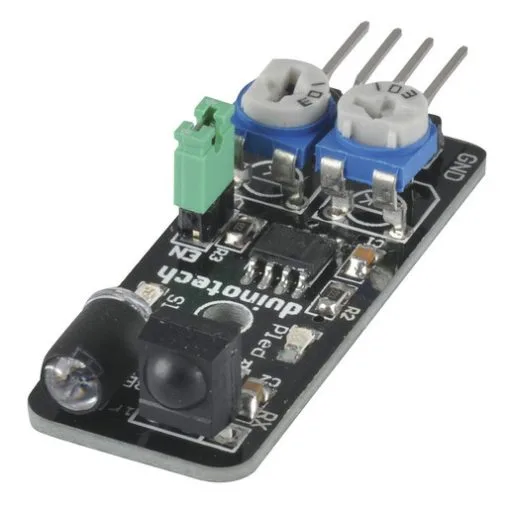

IR Infrared Obstacle Avoidance Sensor Module
The IR Infrared Obstacle Avoidance Sensor Module is a compact, reliable, and versatile sensor designed for detecting obstacles in a wide range of electronic applications, including robotics, automation, and smart devices. This module operates by utilizing a pair of infrared components: a transmitter that emits infrared light and a receiver that detects the light reflected from nearby objects. When an obstacle is present within the detection range, the onboard comparator circuitry processes the signal, triggering a digital output (active low) and illuminating an indicator LED for visual feedback.
Features :
- Adjustable Detection Range: Configurable from 2cm to 40cm via an onboard potentiometer.
- Wide Operating Voltage: Supports 3.3V to 5V DC, ensuring compatibility with a variety of microcontrollers and systems.
- Digital Output: Provides a TTL-level signal (active low) when an obstacle is detected, simplifying interfacing with digital systems.
- Enable Pin (4-Pin Version): Allows external control to enable (EN = GND) or disable (EN = VCC) the sensor, with a default jumper to keep it enabled.
- Compact and Lightweight Design: Measures approximately 43mm x 16mm and weighs about 5g, ideal for space-constrained projects.
- Stable Performance: Reliable operation in ambient light or darkness, with good anti-jamming capabilities.
Specification :
| Parameter | Details |
|---|---|
| Detection Distance | 2cm – 40cm (adjustable via potentiometer) |
| Detection Angle | 35° |
| Operating Voltage | 3.3V – 5V DC |
| Current Consumption | ≥20mA |
| Output Type | Digital (TTL level, active low) |
| Interface | 4 pins (VCC, GND, OUT, EN) |
| Dimensions | Approximately 43mm x 16mm |
| Weight | Approximately 5g |
| Operating Temperature | -10°C to +50°C |
| Frequency | Centered at 38kHz (adjustable) |
Applications :
- Robotics: Implementing obstacle avoidance and line-following capabilities in autonomous robots and smart cars.
- Automation Systems: Detecting and counting objects in automated processes, such as on conveyor belts or in product sorting systems.
- Security Systems: Monitoring for intrusions or unauthorized objects in restricted areas.
- Industrial Applications: Monitoring liquid levels, detecting items on production lines, or preventing equipment collisions.
- Smart Devices: Enabling anti-drop mechanisms or proximity detection in consumer electronics and IoT devices.
Package includes :
- 1 x IR Infrared Obstacle Avoidance Sensor 4-Pin
