IR2113 High and Low Side Driver IC DIP-14 (Brand: International Rectifier)
The IR2113 is a high and low-side driver IC designed for driving IGBTs and MOSFETs in high-power applications. Manufactured by International Rectifier, this versatile device supports voltage levels ranging from 10V to 20V, making it an ideal solution for controlling IGBTs in motor drives, power supplies, and other industrial equipment. The IR2113 is capable of driving both high and low side MOSFETs or IGBTs with a single IC, which is a key feature for systems requiring efficient, compact designs.
Features:
- Floating channel designed for bootstrap operation
- Fully operational to +600 V
- Tolerant to negative transient voltage
- dV/dt immune
- Gate drive supply ranges from 10 to 20 V
- Under voltage lockout for both channels
- 3.3V logic compatible
- Separate logic supply range from 3.3 V to 20 V
- Logic and power ground +/- 5V offset
- CMOS Schmitt-triggered inputs with pull-down
- Cycle-by-cycle edge-triggered shutdown logic
- Matched propagation delay for both channels
- Outputs in phase with inputs
Specifications:
| parameters | IR2113 |
|---|---|
| channels | 2 |
| Configuration | High side and low side |
| Input Vcc min max | 10V 20V |
| isolation type | Functional level shift |
| Output Current (Source) | 2.5A |
| Output Current (Sink) | 2.5A |
| Turn Off the Propagation Delay | 94 ns |
| Turn On Propagation Delay | 120ns |
| V BS UVLO (On) | 8.6v |
| V BS UVLO (Off) | 8.2v |
| V CC UVLO (On) | 8.5v |
| V CC UVLO (Off) | 8.2v |
| voltage class | 600V |

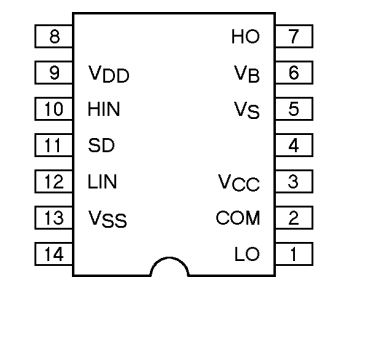

Pin Configuration:
Applications:
- High‑side and low‑side gate drive for half‑bridge or full‑bridge inverter stages.
- Motor drives and servo inverters using MOSFET or IGBT power stages.
- High‑voltage DC‑DC converters, UPS systems, and solar inverters.
- Switched‑mode power supplies requiring isolated or level‑shifted gate control.
Package Include:
1x IR2113 High and Low Side Driver IC DIP-14 (Brand: International Rectifier)
